MTSOLAR_DD3GI12B62A

$23,574.38

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 13 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

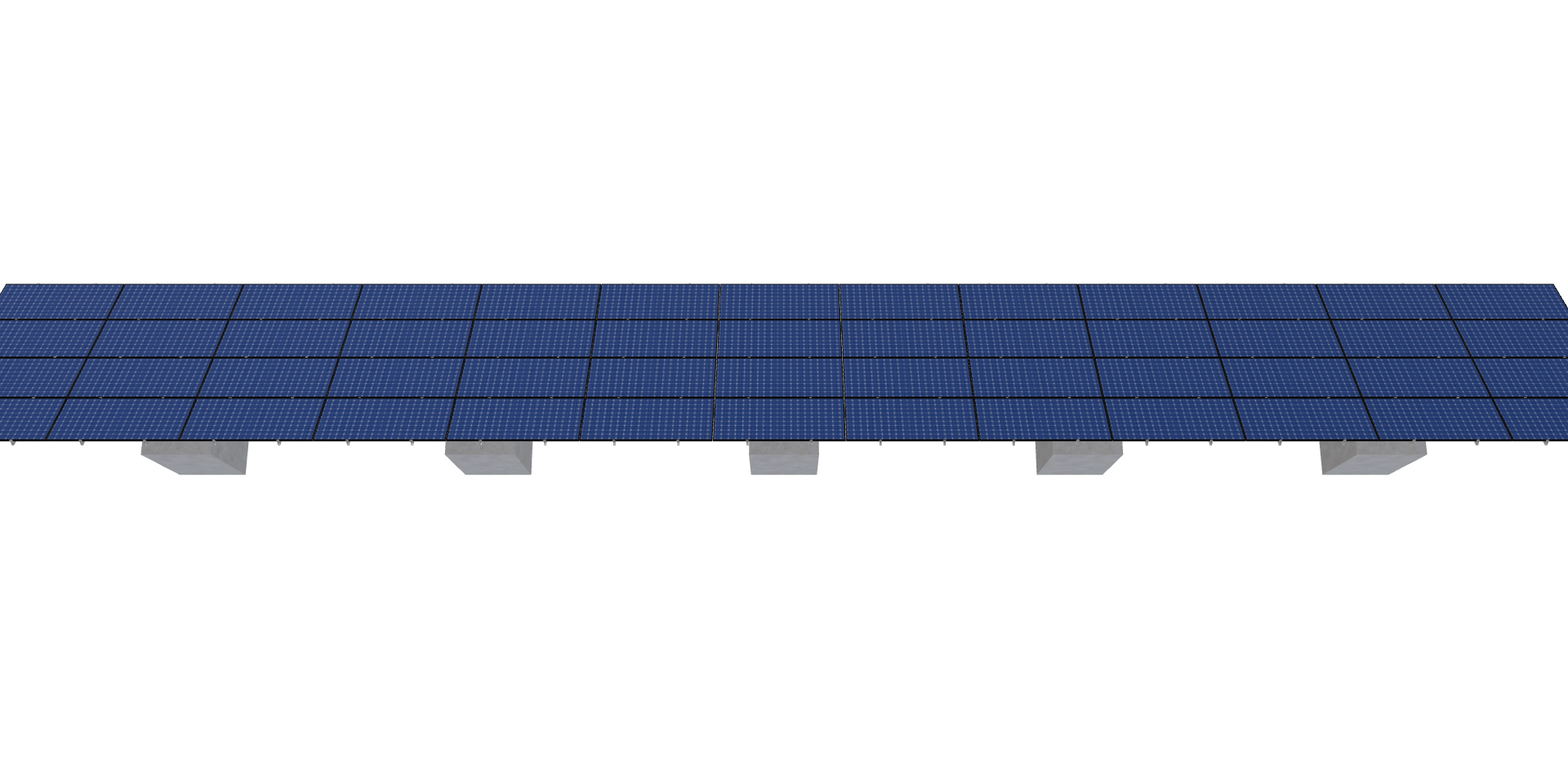

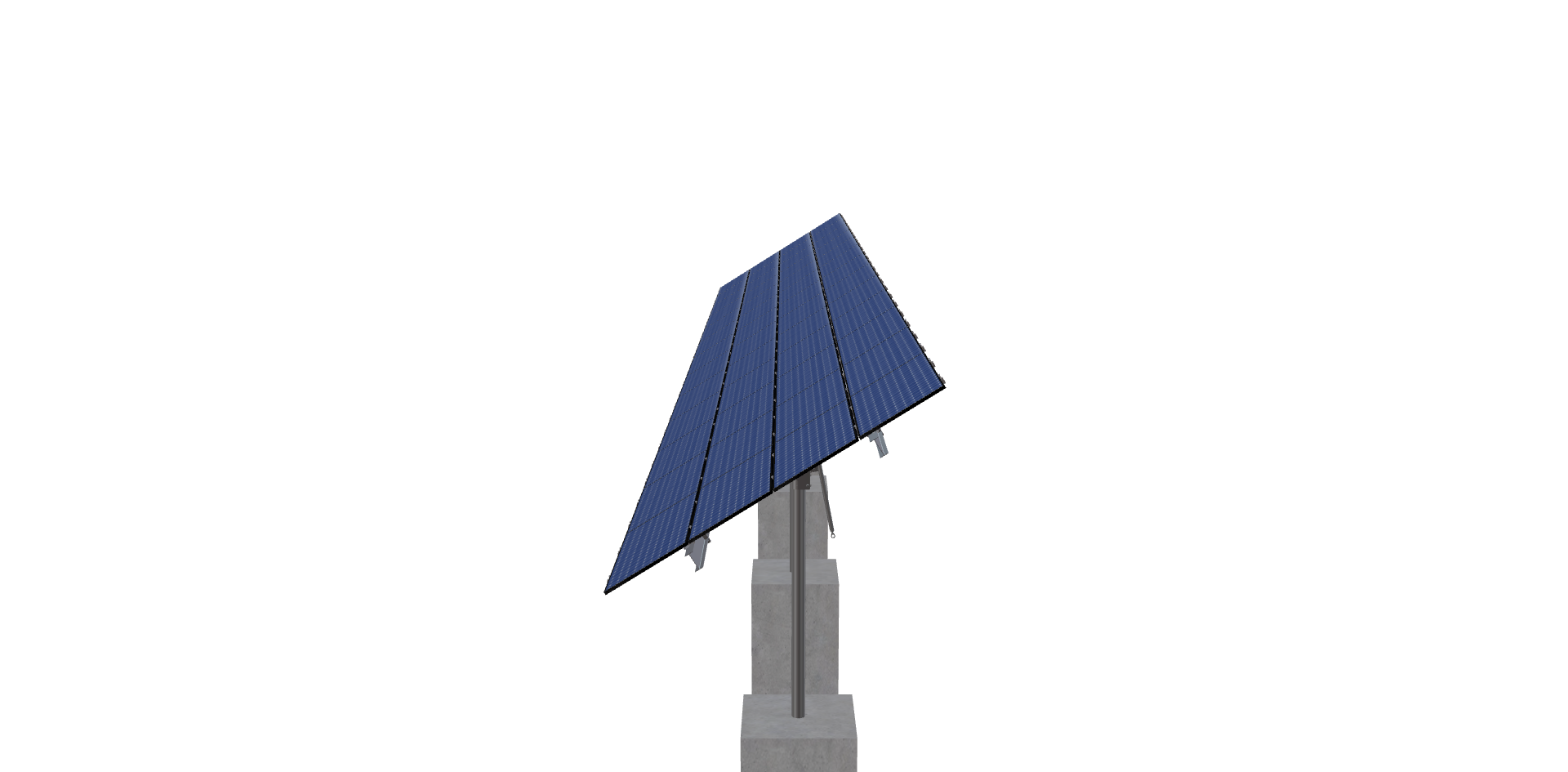

See 3D Model Here

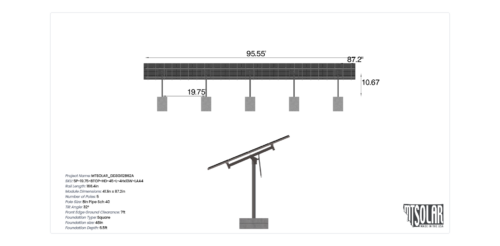

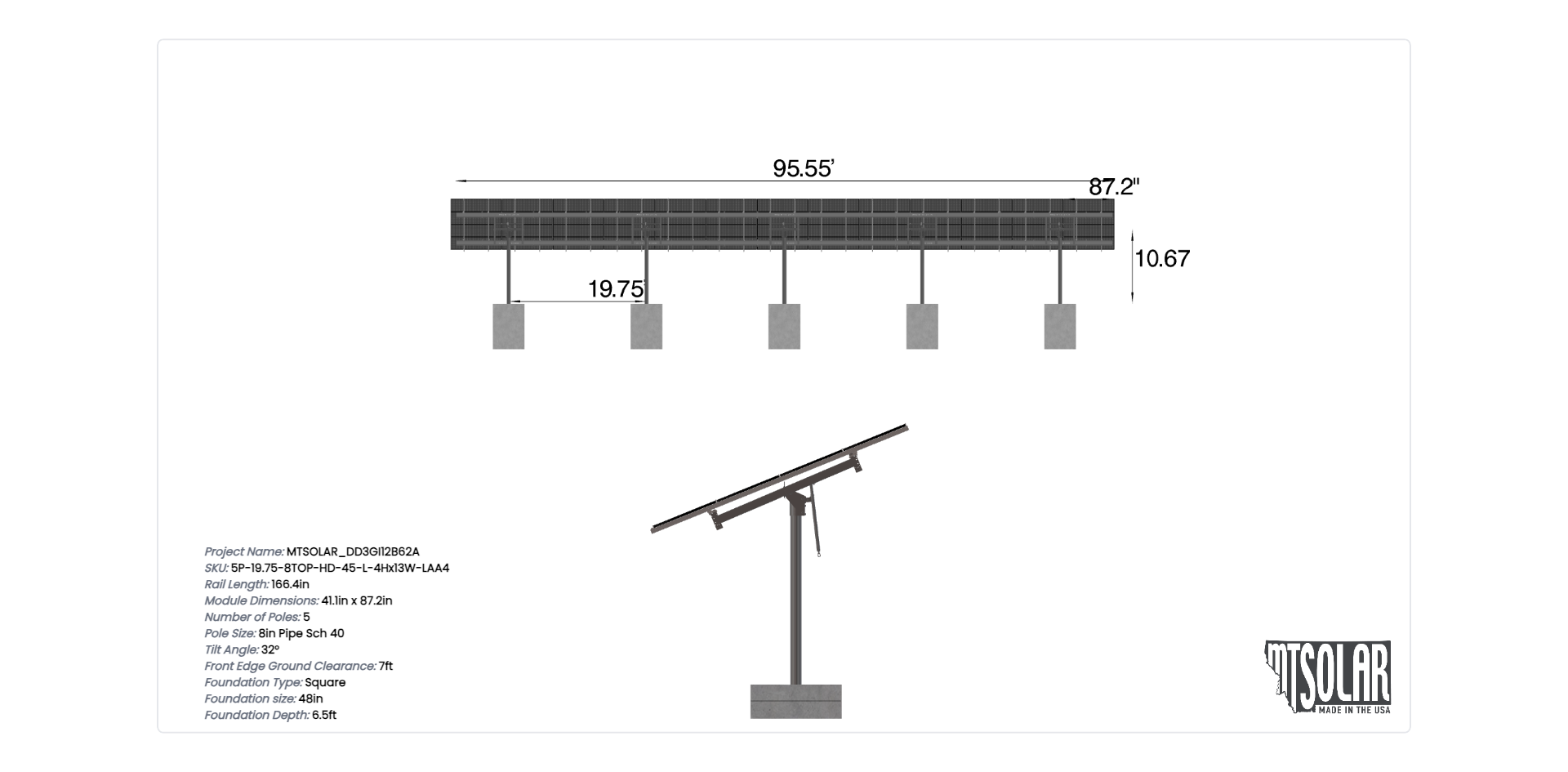

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $23,574.38
Total options:
Order total:
SKU: 5P-19.75-8TOP-HD-45-L-4Hx13W-LAA4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 13 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4392.53 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

5P-19.75-8TOP-HD-45-L-4HX13W-LAA4

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

5.00

POLE SPACING

19.75

POLE HEIGHT

10.67

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

32.00

CANTILEVER

1128.00

GROUND CLEARANCE

7.00

NO POLES

5.00

MODULE AREA

1324.96

ARRAY WIDTH

95.55

ARRAY HEIGHT

13.87

RAIL LENGTH

166.40

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

94.00

GROUND TO TOP

14.30

PROJECTED PANEL HEIGHT

7.26

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, DD3GI12B62A

SITE ADDRESS

2122, 140TH, AVE, SE, SNOHOMISH, WA, 98290, USA

MODULE WIDTH

41.10

NUMBER ROWS

4.00

NUMBER COLUMNS

13.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

23574.38

TOTAL WEIGHT

4392.53

TOTAL PALLETS

5.00

pdf

https://skycivquotes.s3.amazonaws.com/b6703086-3029-4ccb-bfe6-1d06653d1f54.pdf

ID

6208.00
