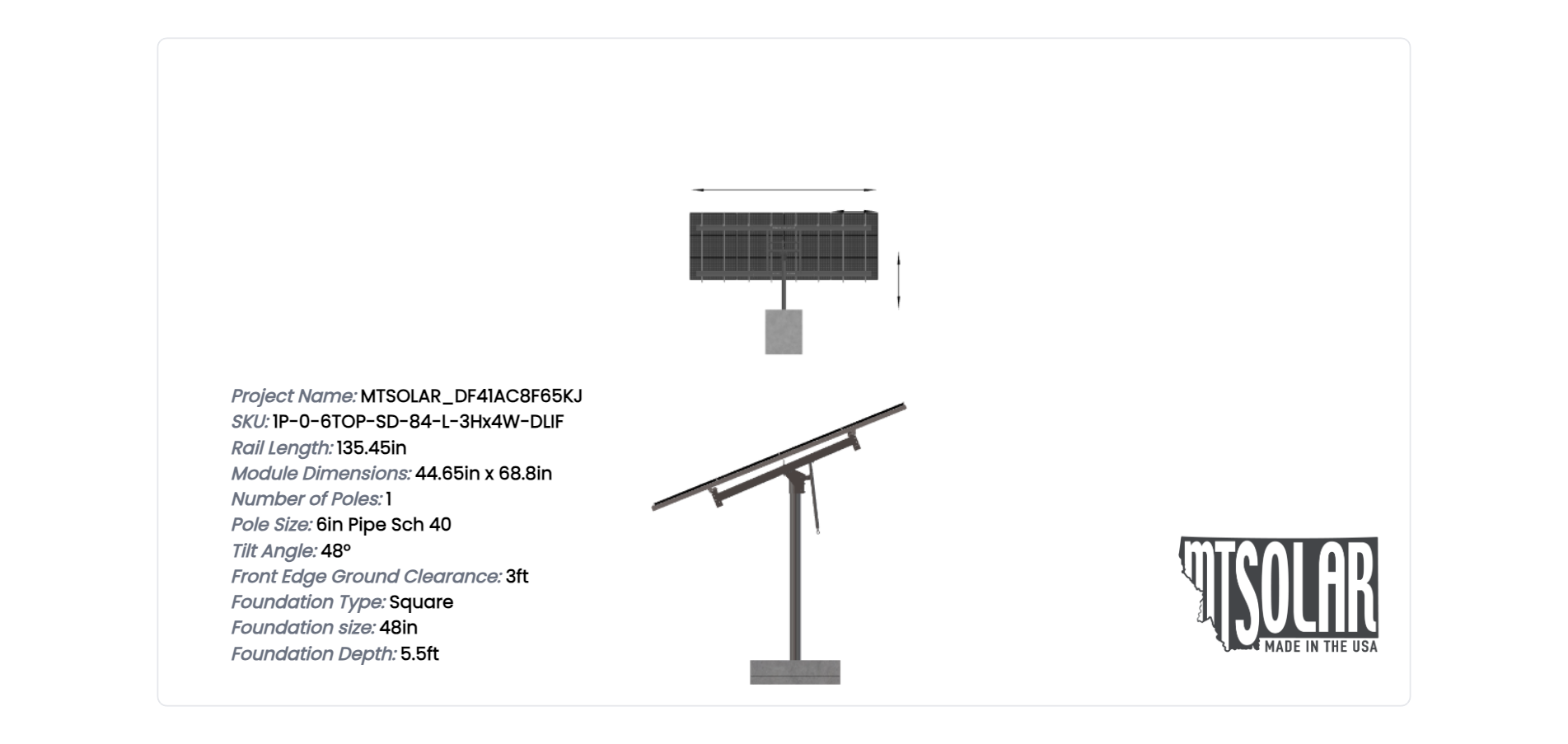

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 44.65 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

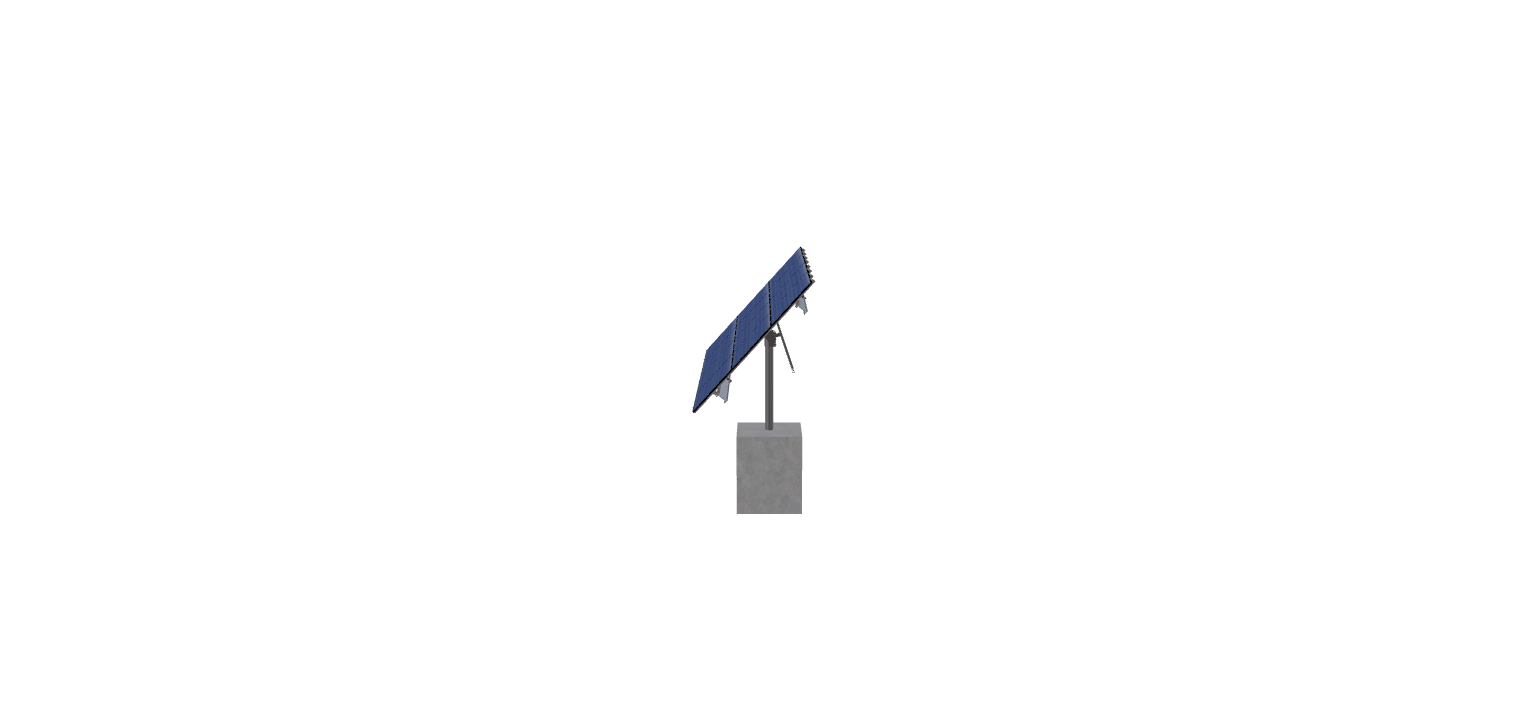

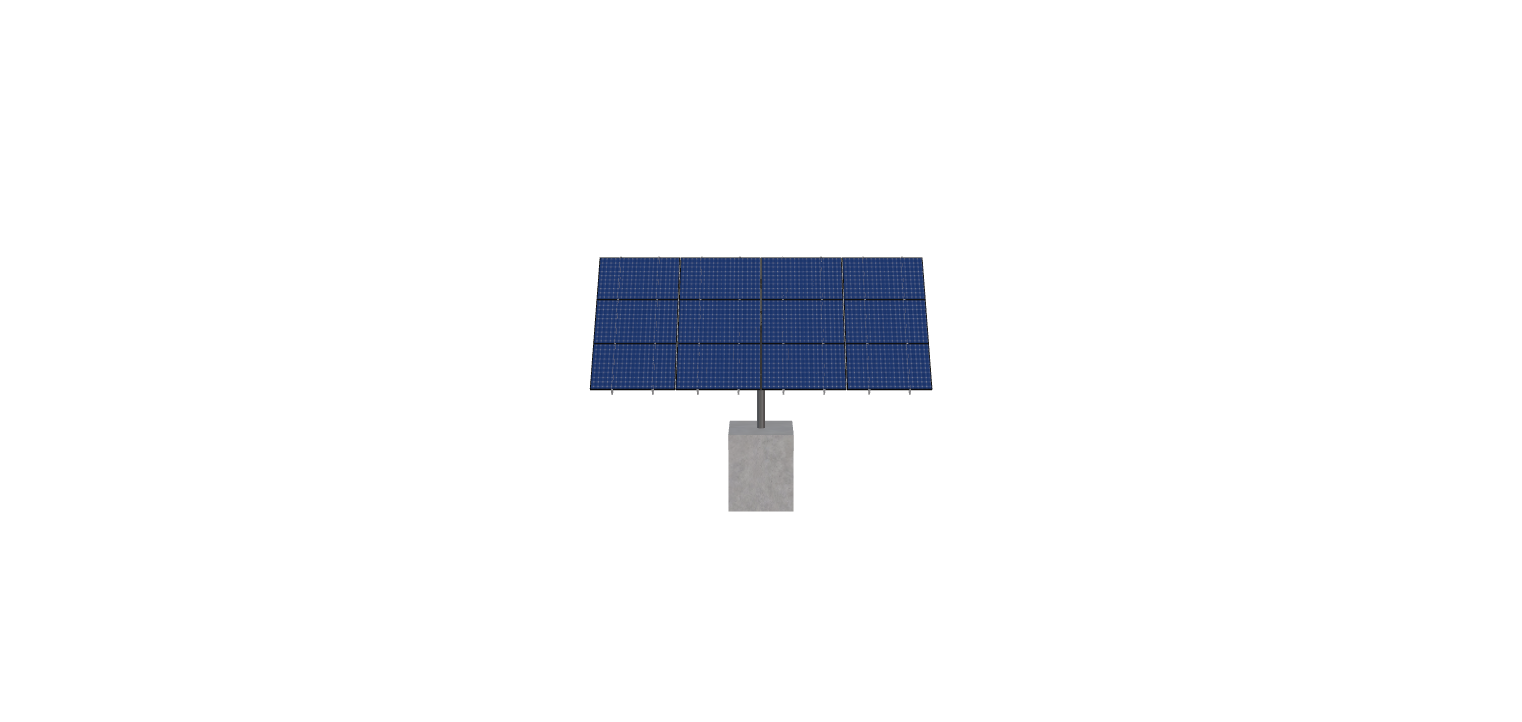

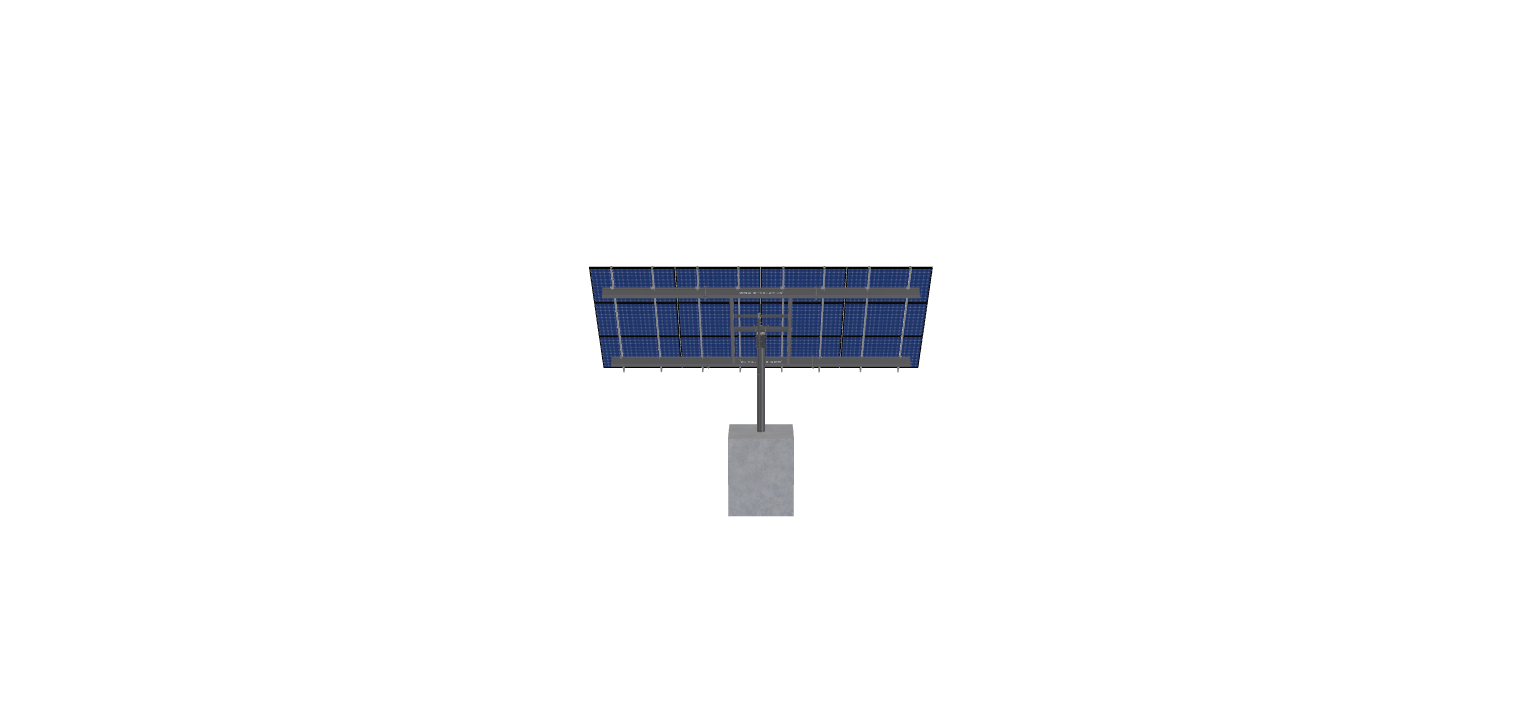

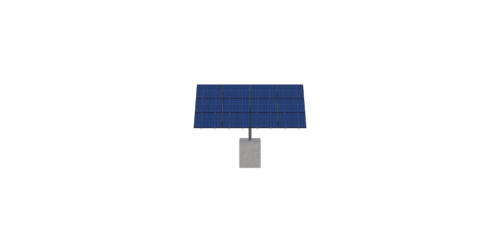

See 3D Model Here
MTSOLAR_DF41AC8F65KJ
$4,656.88
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 44.65 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 792.1800000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-84-L-3HX4W-DLIF |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.19 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 48.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 262.62 |
| ARRAY WIDTH | 23.27 |
| ARRAY HEIGHT | 11.29 |
| RAIL LENGTH | 135.45 |
| MODULE LENGTH | 68.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 11.39 |
| PROJECTED PANEL HEIGHT | 8.39 |
| DESIGNER NAME | LD |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 2145021193.00 |
| PROJECT ID | MTSOLAR, DF41AC8F65KJ |
| SITE ADDRESS | 155, JILL, LOOP, RUSTON, LA, 71270, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 15.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4435.12 |
| TOTAL WEIGHT | 792.18 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ecab6fd1-3754-4fc9-9d65-e8e5ecfea306.pdf |
|
| ID | 8411.00 |
| 3D Solar link |
