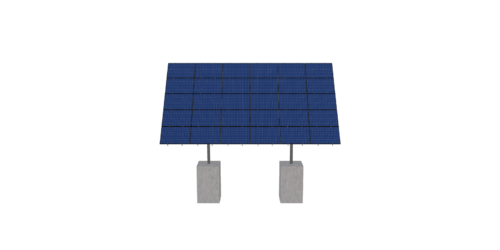

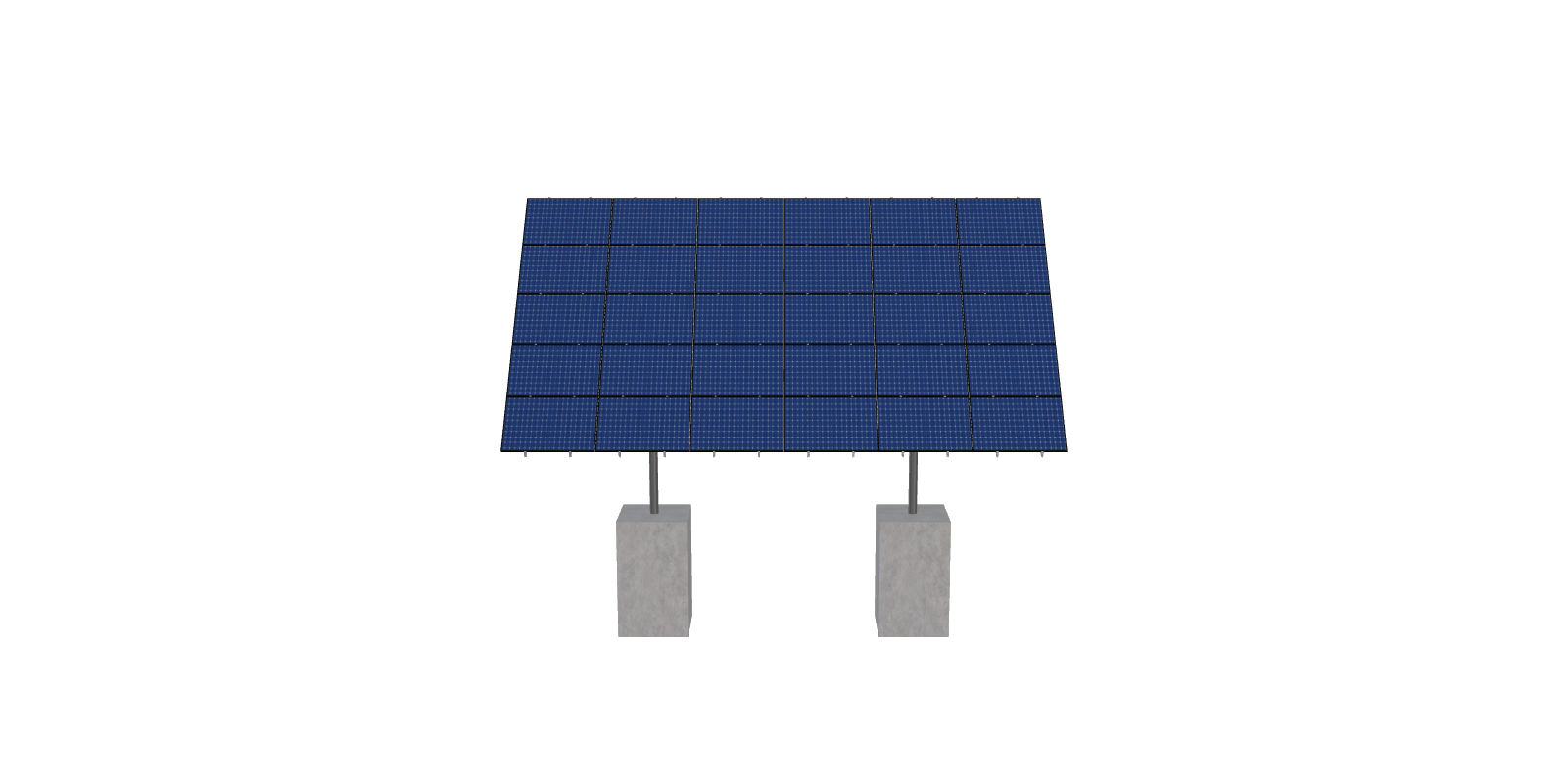

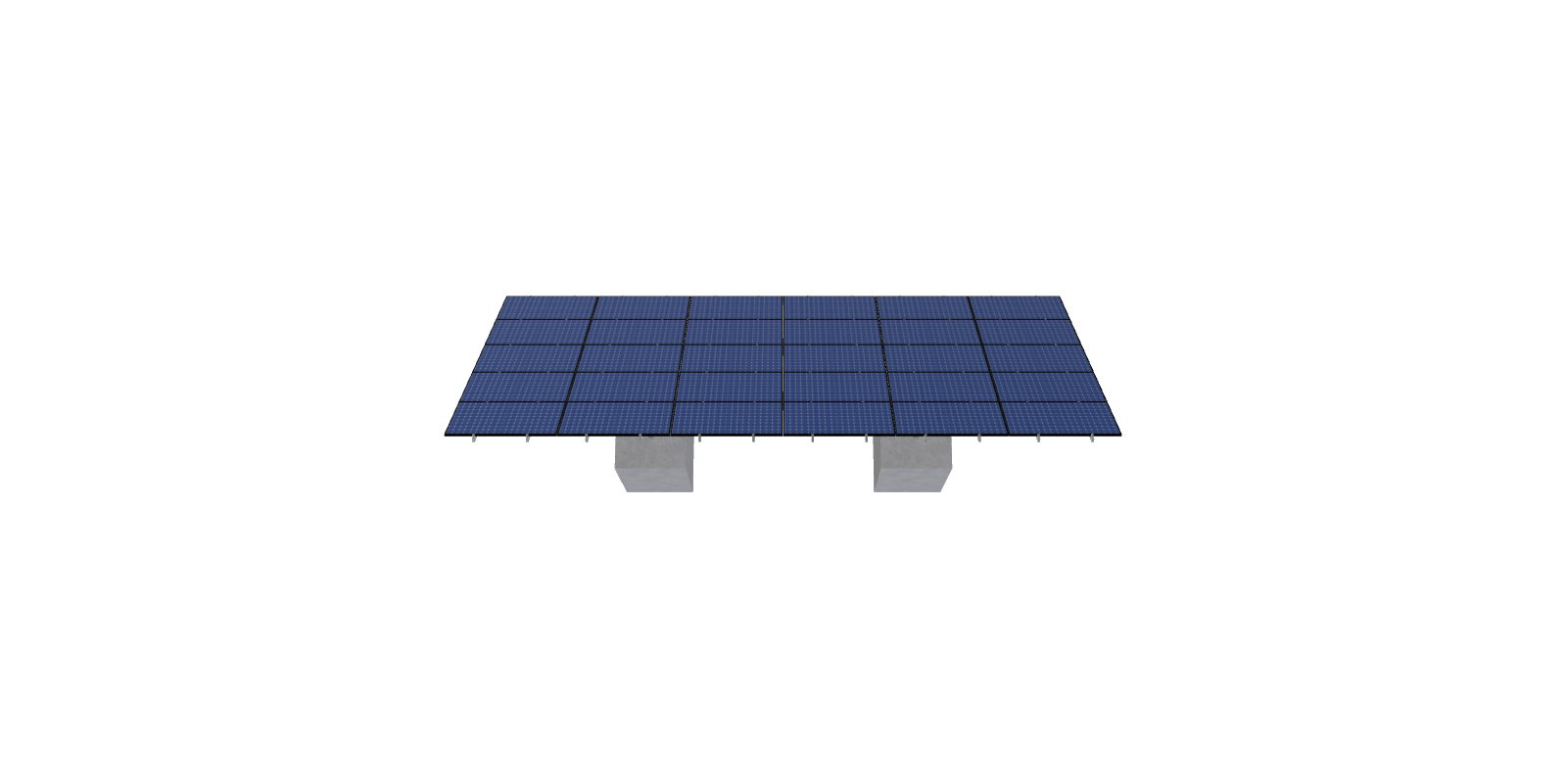

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 46.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).

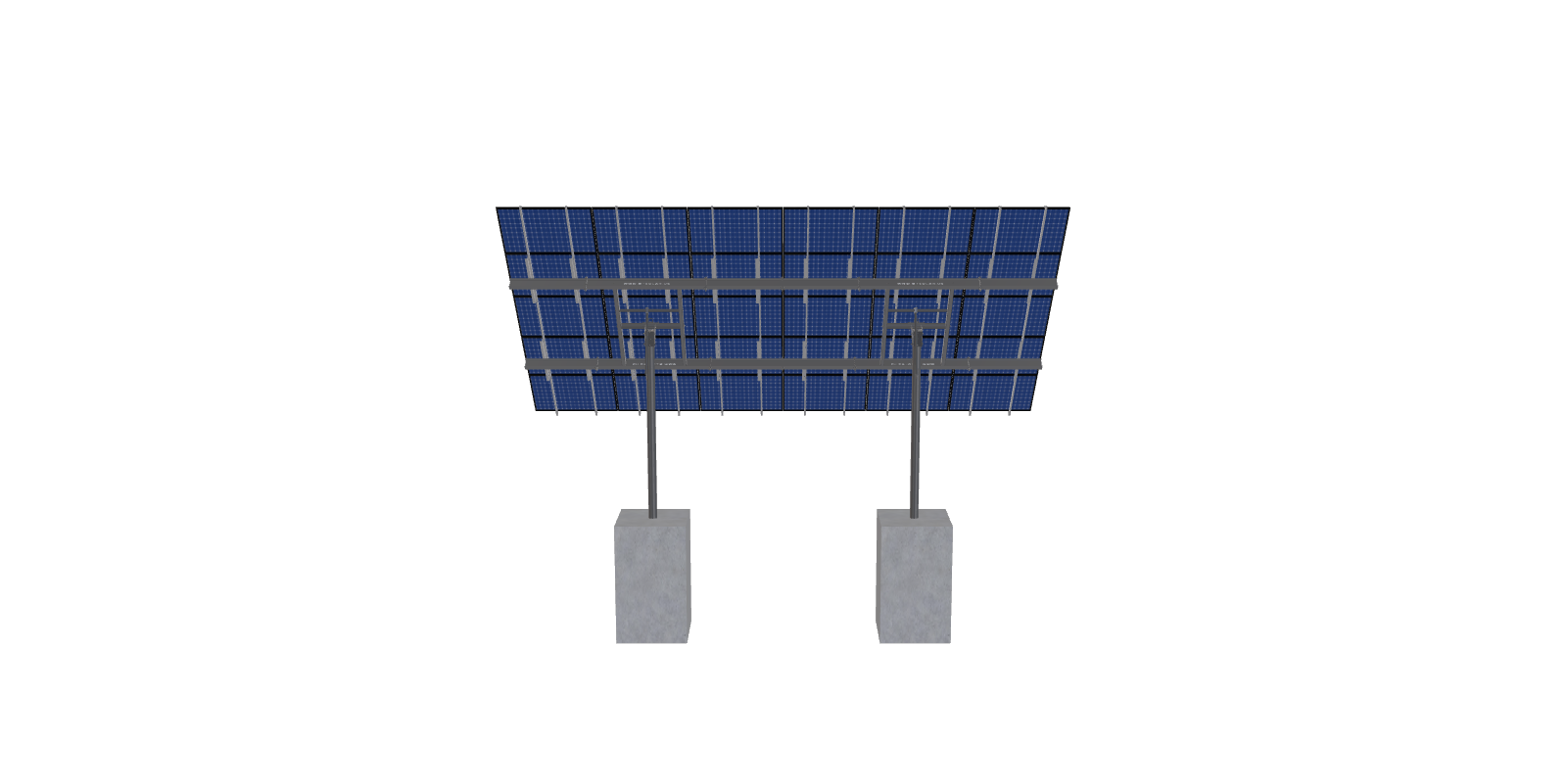

The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DILI37ILKL43
$10,922.46
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 46.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2082.86 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-57-L-5HX6W-192L |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.50 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.75 |

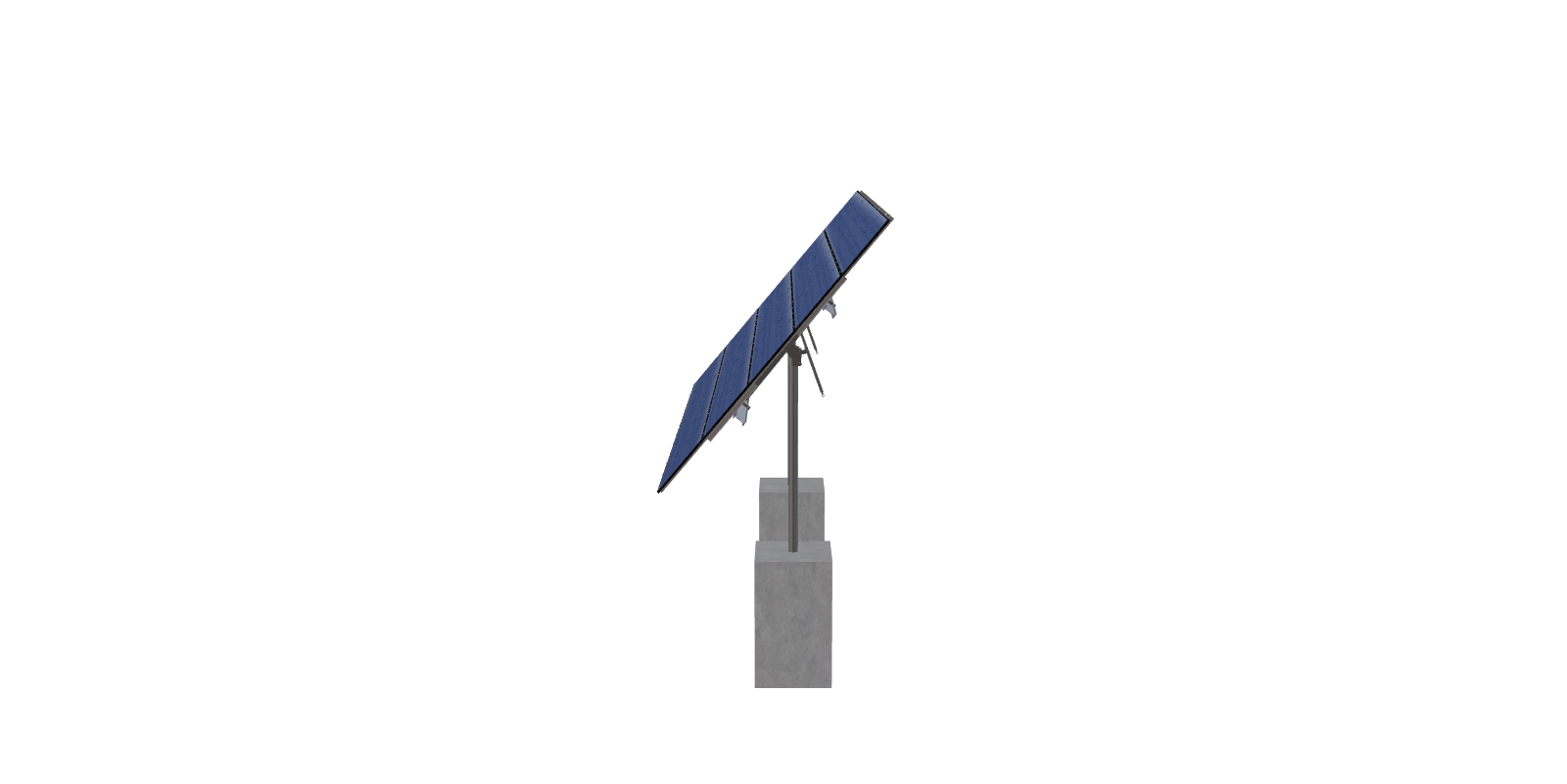

| TILT ANGLE | 50.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 676.60 |
| ARRAY WIDTH | 34.55 |
| ARRAY HEIGHT | 19.58 |
| RAIL LENGTH | 235.00 |
| MODULE LENGTH | 68.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 20.00 |
| PROJECTED PANEL HEIGHT | 15.00 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ARTIE, CROCKER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7814447020.00 |
| PROJECT ID | MTSOLAR, DILI37ILKL43 |
| SITE ADDRESS | NEWBURY, MA, USA |
| MODULE WIDTH | 46.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10402.34 |
| TOTAL WEIGHT | 2082.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/f3fc8d5d-180d-4e0a-b058-6052307a4520.pdf |
|
| ID | 8473.00 |
| 3D Solar link |
