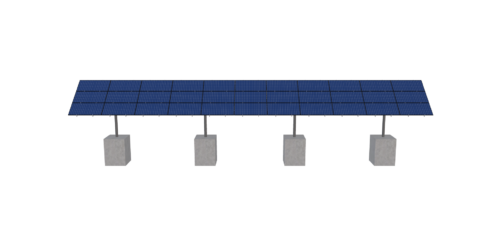

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.26 inches and an array layout of 11 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

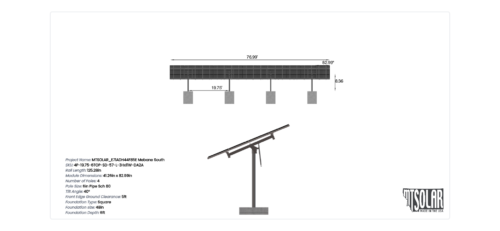

See 3D Model Here
MTSOLAR_E71ADH44F85E Mebane South
$16,810.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.26 inches and an array layout of 11 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2901.62 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-57-L-3HX11W-DA2A |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.36 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 915.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 803.78 |
| ARRAY WIDTH | 76.99 |
| ARRAY HEIGHT | 10.44 |
| RAIL LENGTH | 125.28 |
| MODULE LENGTH | 82.99 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 76.25 |
| GROUND TO TOP | 11.71 |
| PROJECTED PANEL HEIGHT | 6.71 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 15.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ISC |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, E71ADH44F85E, MEBANE, SOUTH |
| SITE ADDRESS | G78J+FX, BAKERSFIELD, CA, USA |
| MODULE WIDTH | 41.26 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16009.95 |
| TOTAL WEIGHT | 2901.62 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/c2b3e63c-9bc7-4800-93de-7e8ef36a5adc.pdf |
|
| ID | 9562.00 |
| 3D Solar link |
