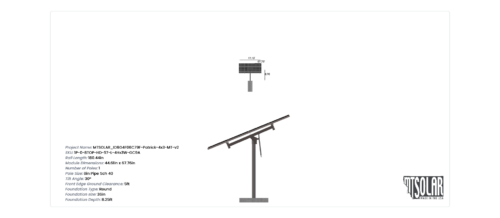

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.76 inches by 44.61 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

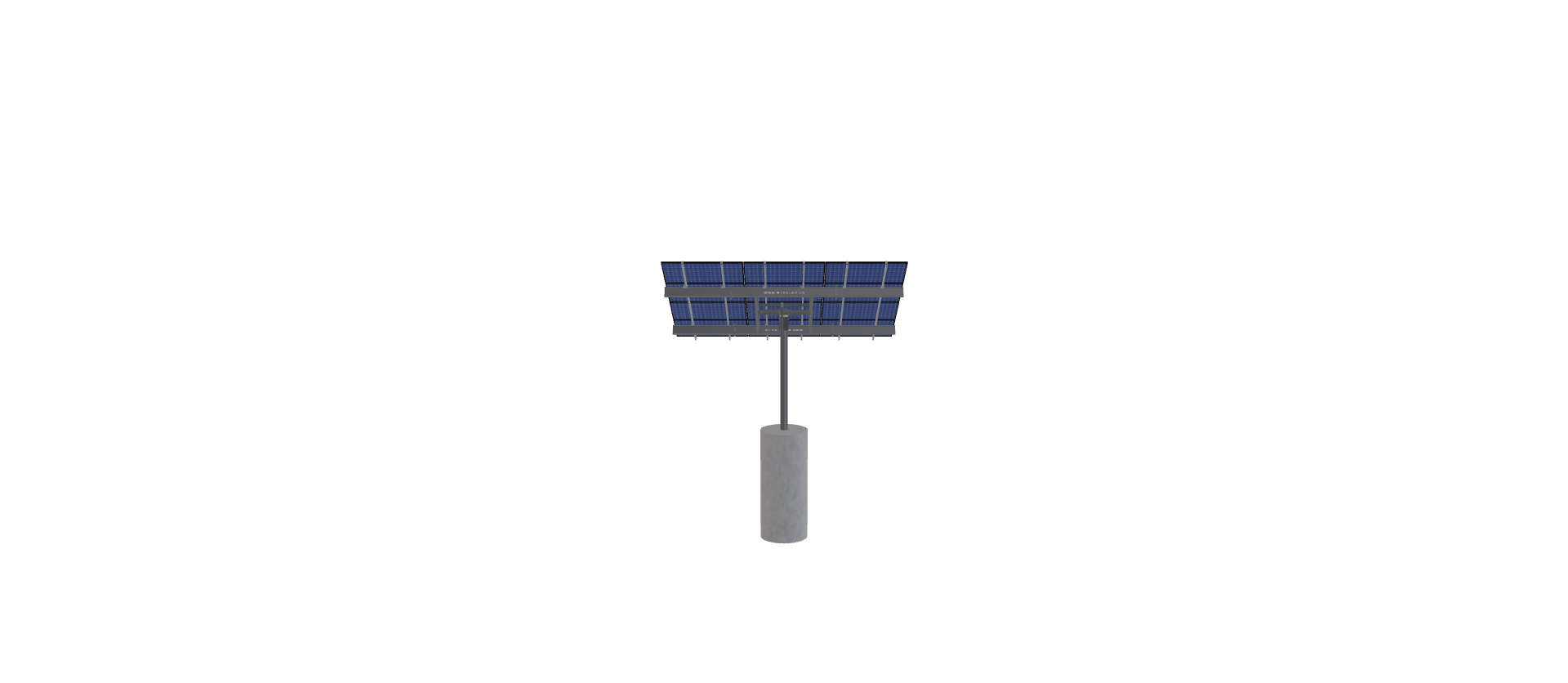

See 3D Model Here
MTSOLAR_ID6G4F06C79F-Patrick-4×3-MT-v2
$4,579.93
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.76 inches by 44.61 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 834.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-57-L-4HX3W-GC9A |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.76 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 258.48 |
| ARRAY WIDTH | 17.19 |
| ARRAY HEIGHT | 15.04 |
| RAIL LENGTH | 180.44 |
| MODULE LENGTH | 67.76 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 12.52 |
| PROJECTED PANEL HEIGHT | 7.52 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, ID6G4F06C79F-PATRICK-4X3-MT-V2 |
| SITE ADDRESS | CR3Q+PF, CLANCY, MT, 59634, USA |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4579.93 |
| TOTAL WEIGHT | 834.37 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/215a7abe-7bdd-4e46-a014-4ed39ebcc803.pdf |
|
| ID | 8285.00 |
| 3D Solar link |
