This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.2 inches by 39.4 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_J6ABHKJ5K06L
$9,318.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.2 inches by 39.4 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1731.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

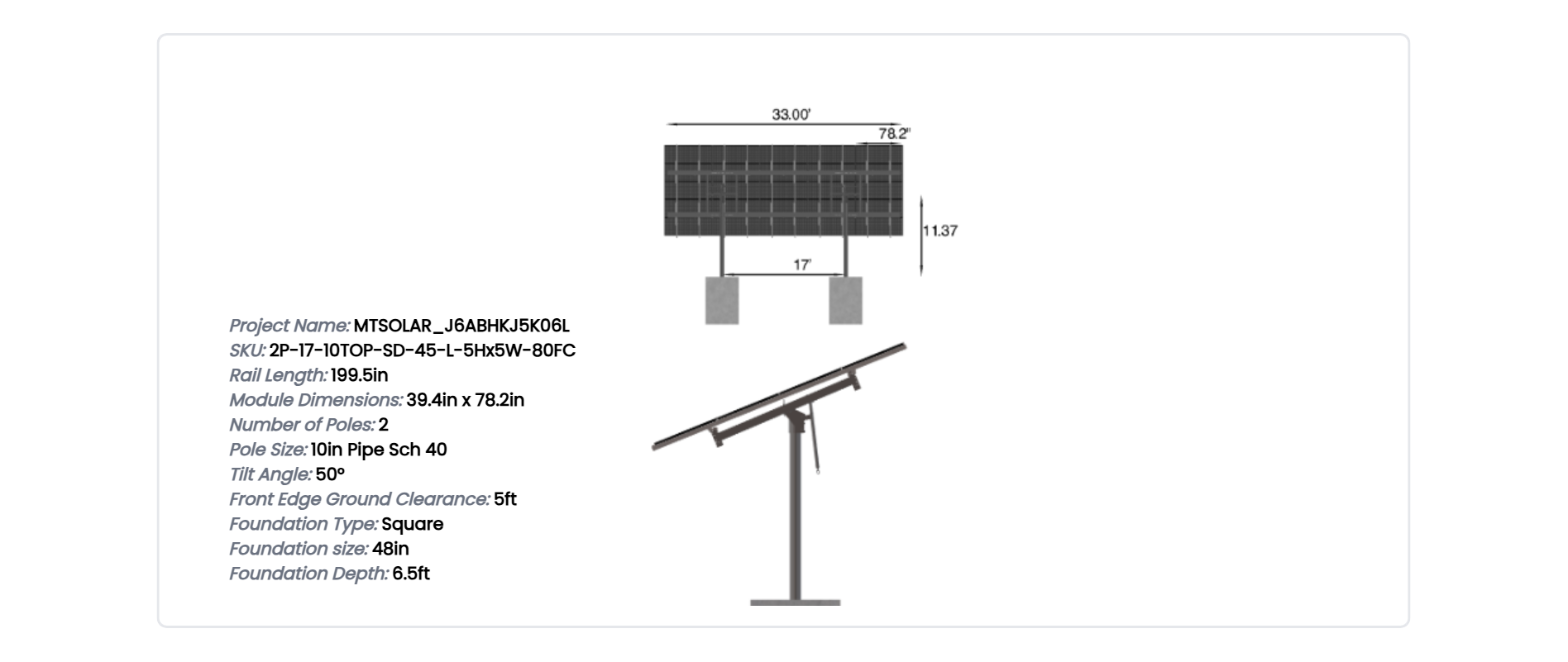

| SKU CODE | 2P-17-10TOP-SD-45-L-5HX5W-80FC |
| DUTY SIZE | SD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.37 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 548.63 |
| ARRAY WIDTH | 33.00 |
| ARRAY HEIGHT | 16.63 |
| RAIL LENGTH | 199.50 |
| MODULE LENGTH | 78.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 17.74 |
| PROJECTED PANEL HEIGHT | 12.74 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4062098076.00 |
| PROJECT ID | MTSOLAR, J6ABHKJ5K06L |
| SITE ADDRESS | 253, FLATIRON, TRL, CAMERON, MT, 59720, USA |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8874.55 |
| TOTAL WEIGHT | 1731.20 |
| TOTAL PALLETS | 2.00 |
