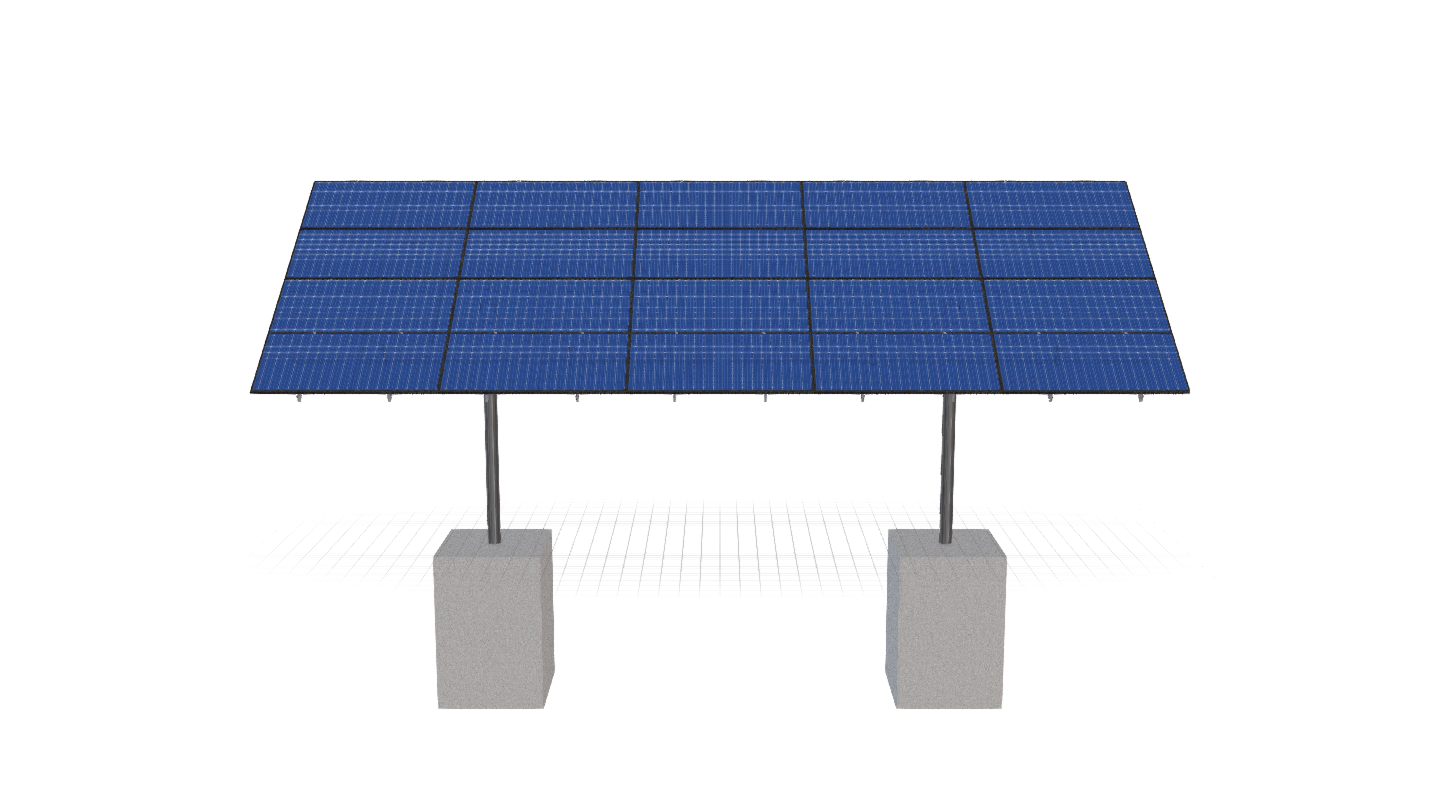

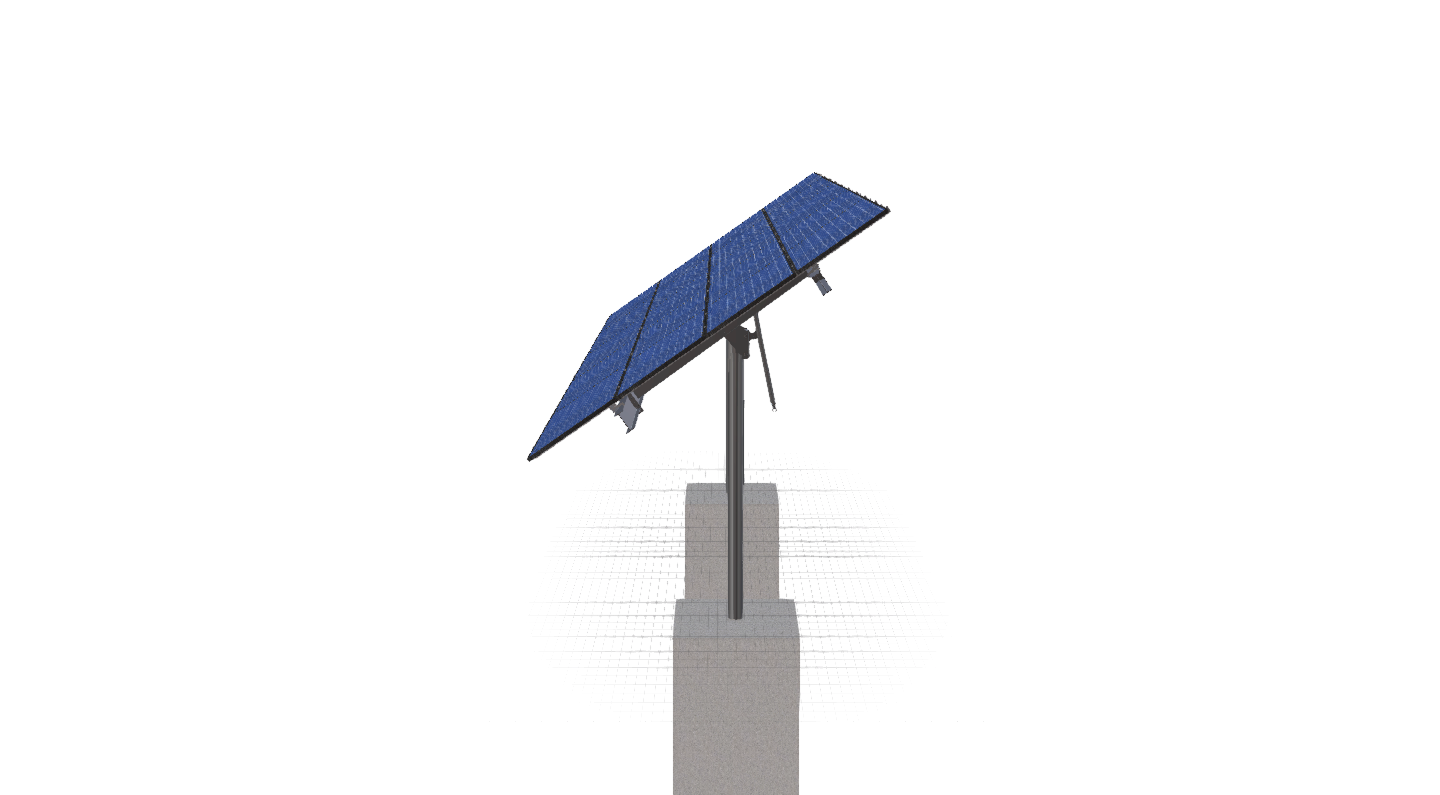

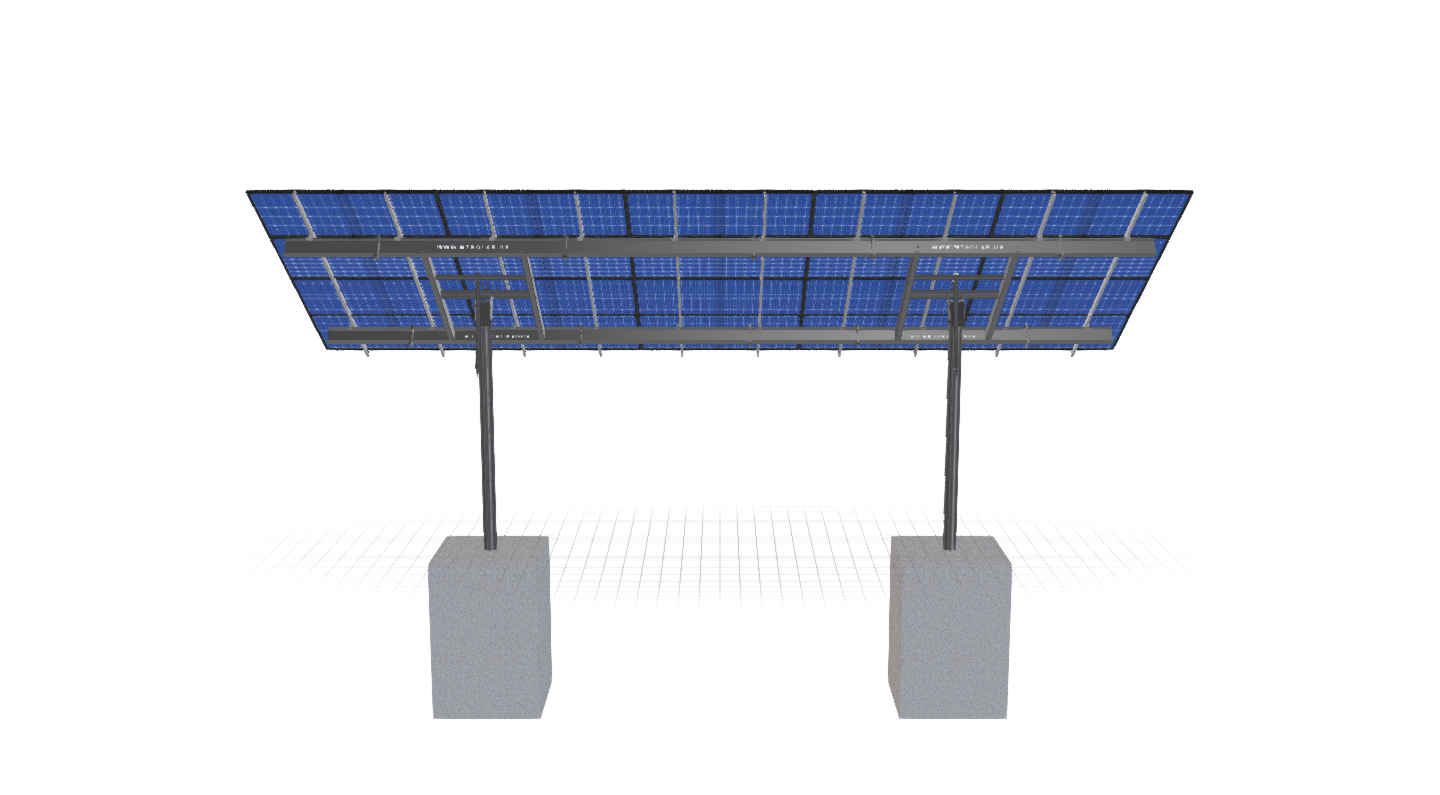

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 41 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_J7E4F4FJHK3I
$9,511.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 41 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1675.3 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-45-L-4HX5W-273K |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.97 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 507.22 |
| ARRAY WIDTH | 36.67 |
| ARRAY HEIGHT | 13.83 |
| RAIL LENGTH | 166.00 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 14.89 |
| PROJECTED PANEL HEIGHT | 7.84 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, J7E4F4FJHK3I |
| SITE ADDRESS | 523, S, 5TH, ST, BRAINERD, MN, 56401, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9058.43 |
| TOTAL WEIGHT | 1675.30 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/46d225c0-2c48-4f07-ba47-554115b1077e.pdf |
|
| ID | 699.00 |
| 3D Solar link |
