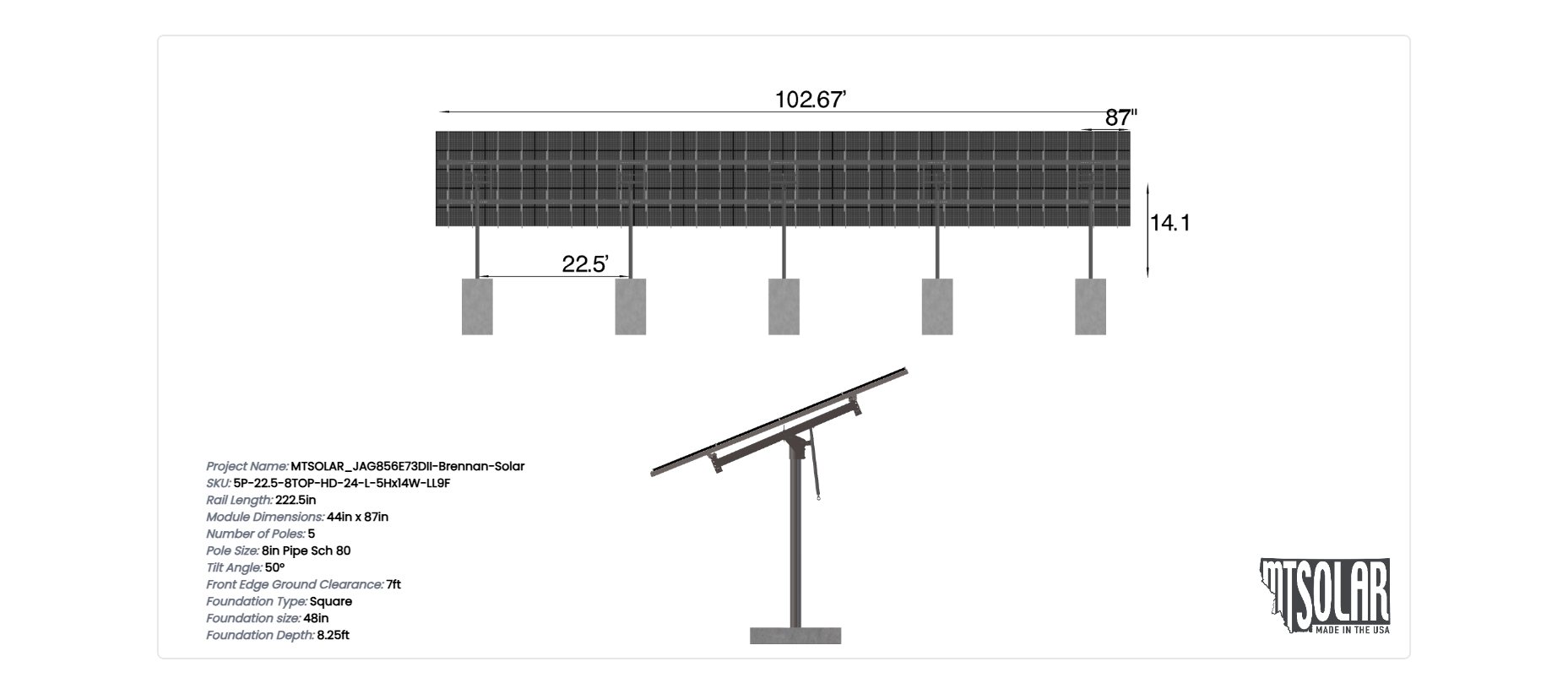

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

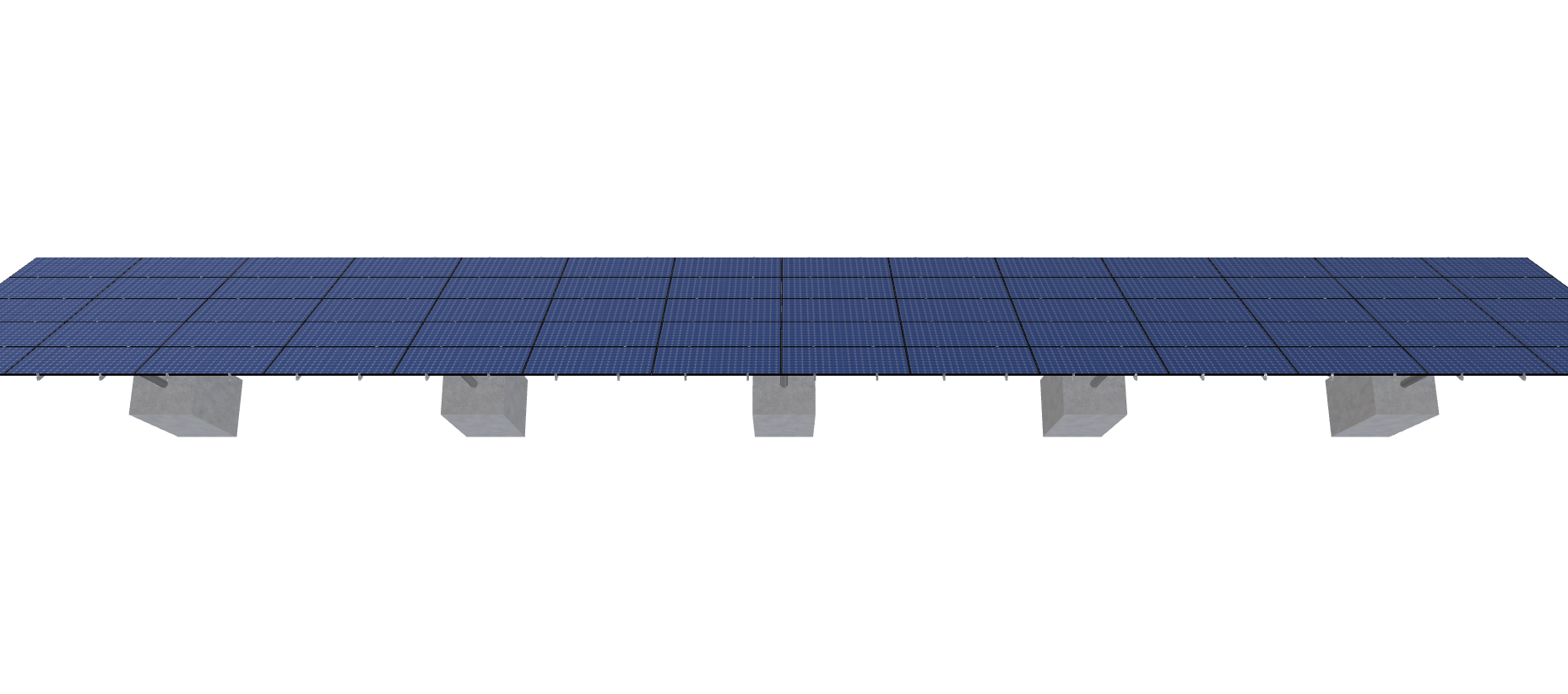

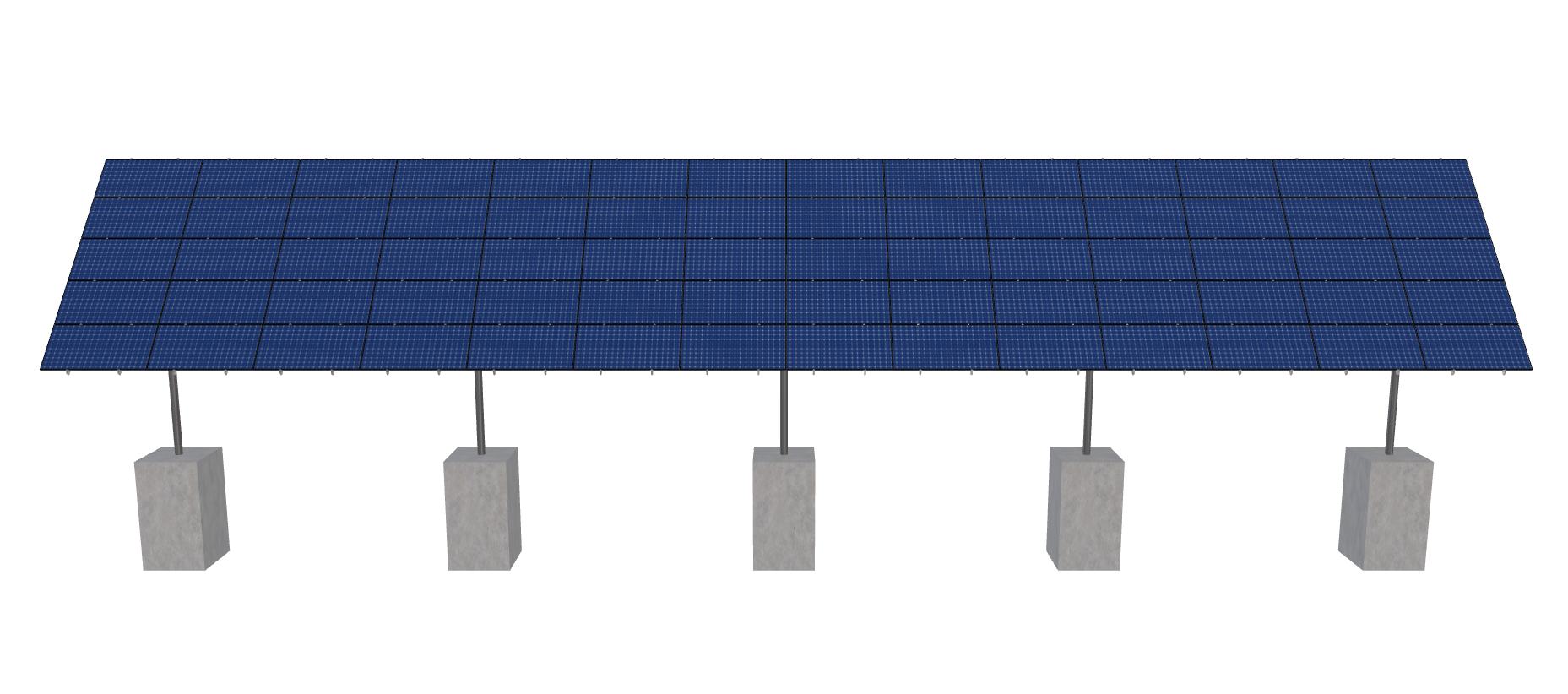

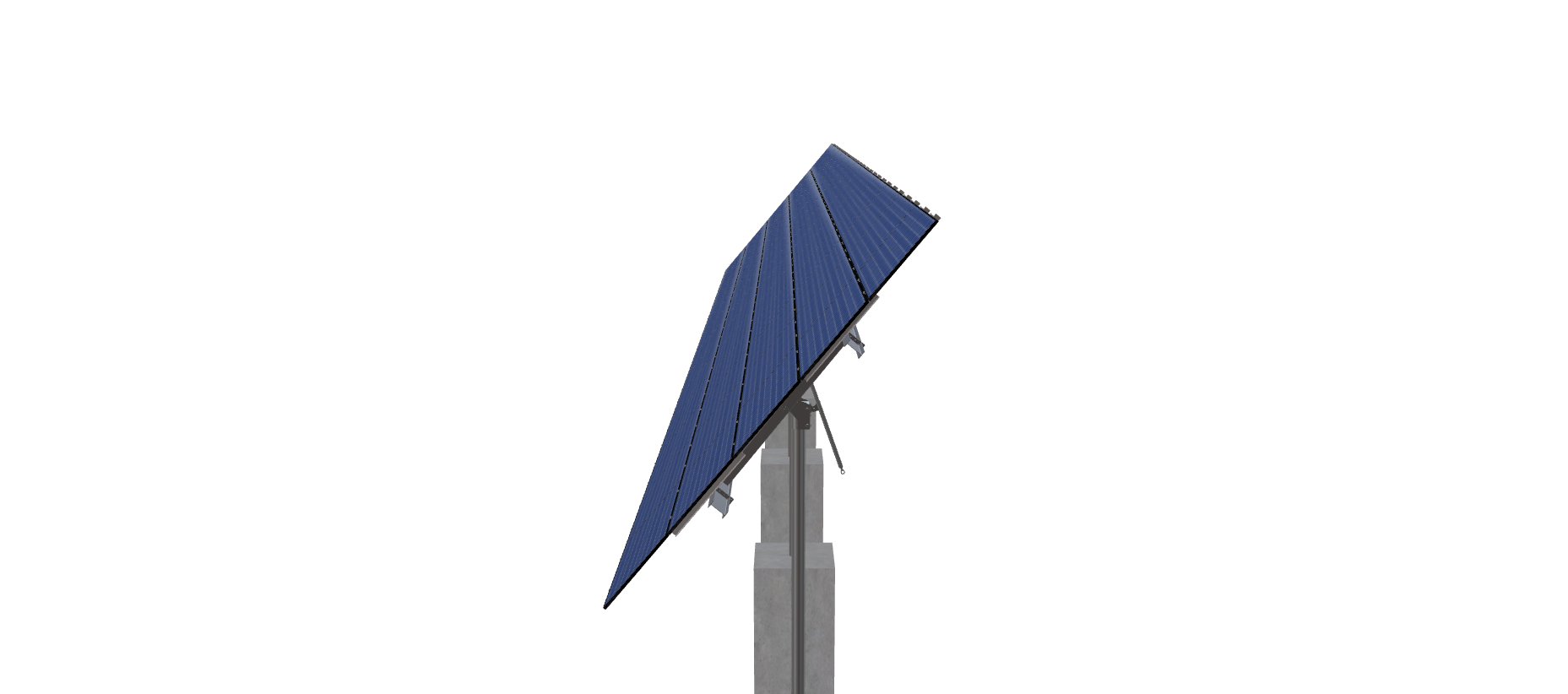

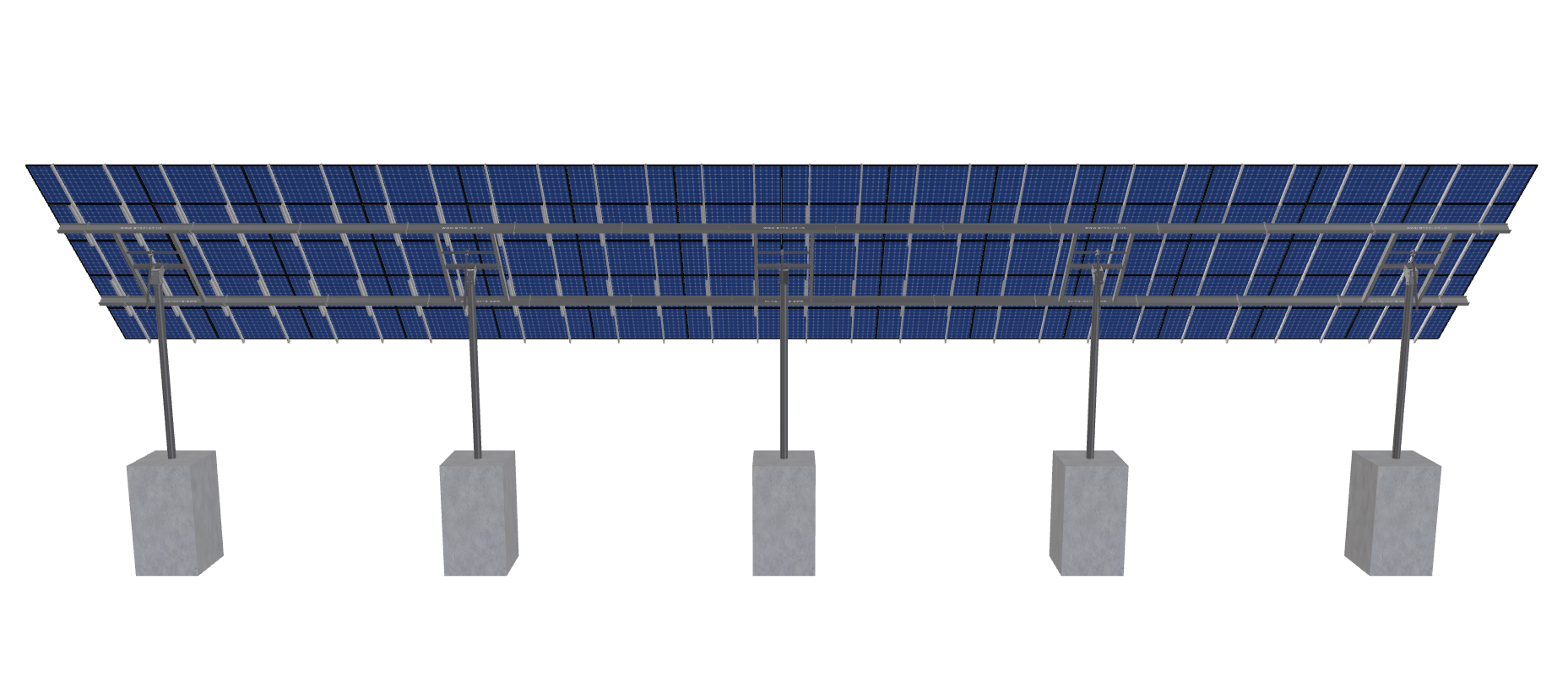

See 3D Model Here
MTSOLAR_JAG856E73DII-Brennan-Solar
$27,041.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5478.79 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-HD-24-L-5HX14W-LL9F |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.10 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1218.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1903.61 |
| ARRAY WIDTH | 102.67 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 101.50 |
| GROUND TO TOP | 21.20 |
| PROJECTED PANEL HEIGHT | 14.20 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, JAG856E73DII-BRENNAN-SOLAR |
| SITE ADDRESS | HAVRE, MT, 59501, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 27041.41 |
| TOTAL WEIGHT | 5478.79 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/d8d62b23-b78c-422d-955a-d1c30ef1e54a.pdf |
|
| ID | 8075.00 |
| 3D Solar link |
