MTSOLAR_JKG1DIHHEJGL

$3,918.92

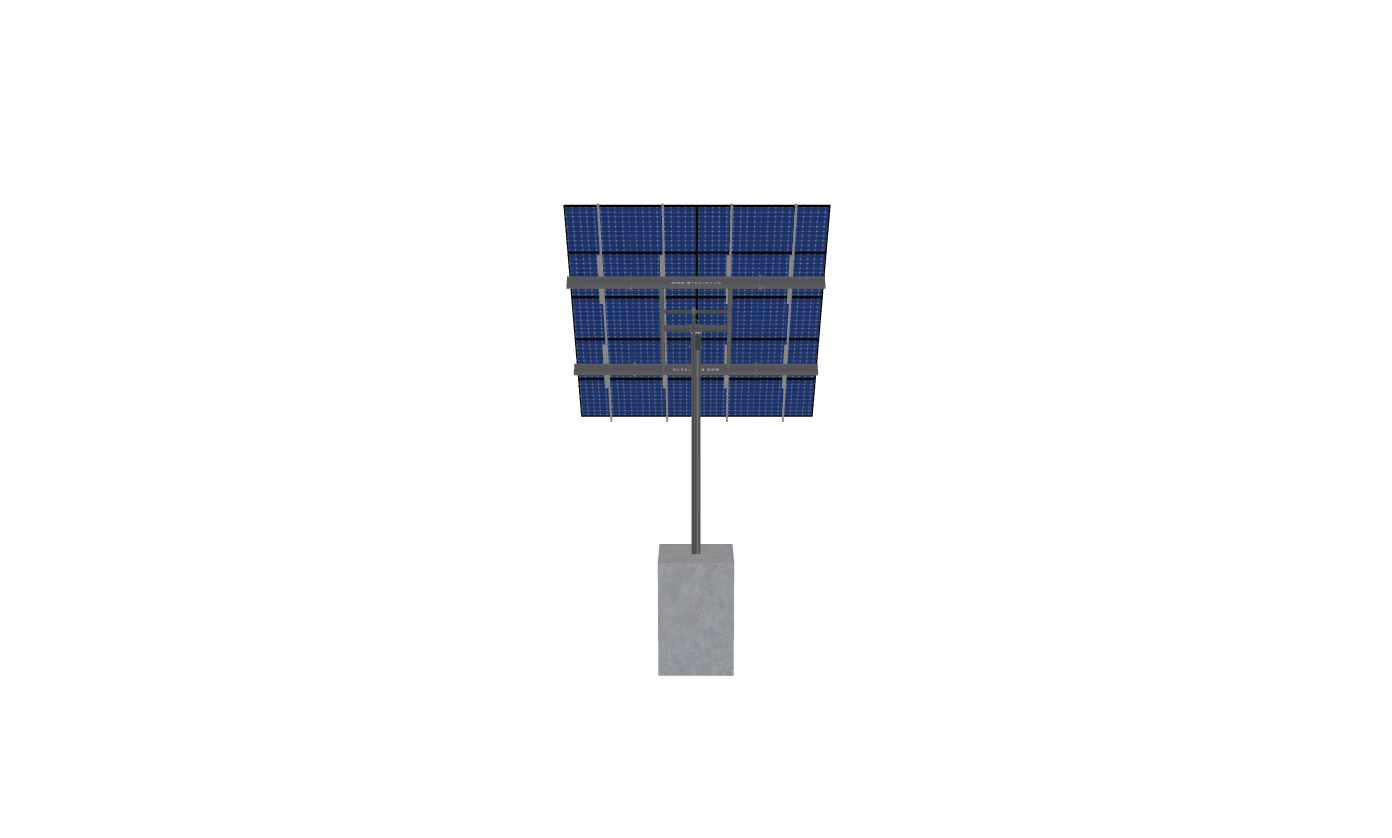

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-45-L-5Hx2W-4644 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 754.88 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-45-L-5HX2W-4644

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

13.70

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

180.00

GROUND CLEARANCE

6.50

NO POLES

1.00

MODULE AREA

282.50

ARRAY WIDTH

15.03

ARRAY HEIGHT

18.79

RAIL LENGTH

225.50

MODULE LENGTH

89.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

15.00

GROUND TO TOP

20.82

PROJECTED PANEL HEIGHT

14.24

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

25.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, JKG1DIHHEJGL

SITE ADDRESS

LOPEZ, ISLAND, WA, 98261, USA

MODULE WIDTH

44.60

NUMBER ROWS

5.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3918.92

TOTAL WEIGHT

754.88

TOTAL PALLETS

1.00
