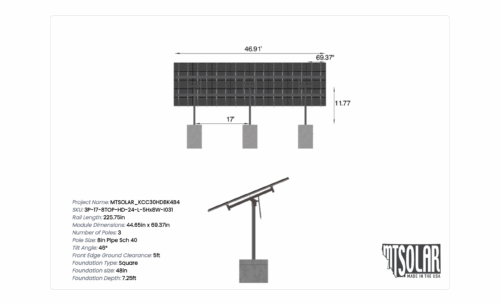

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

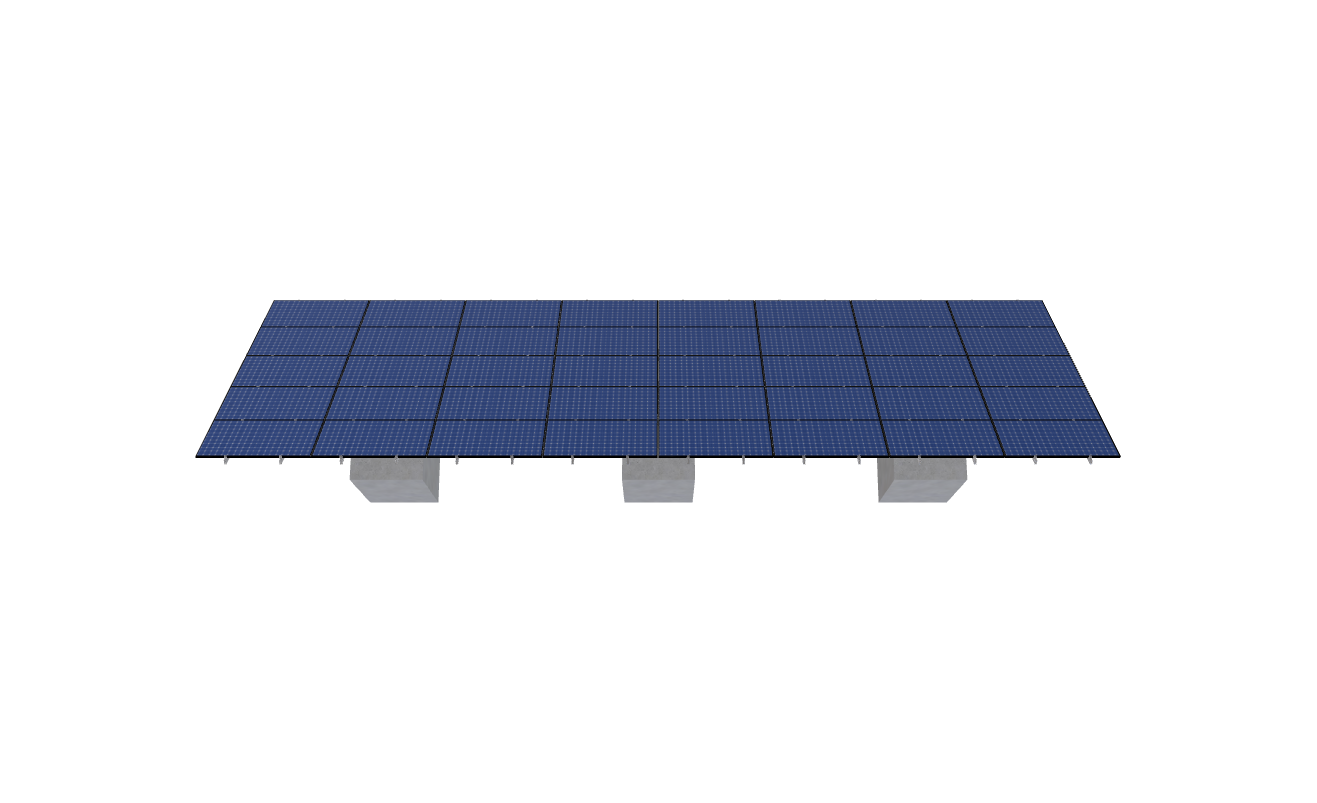

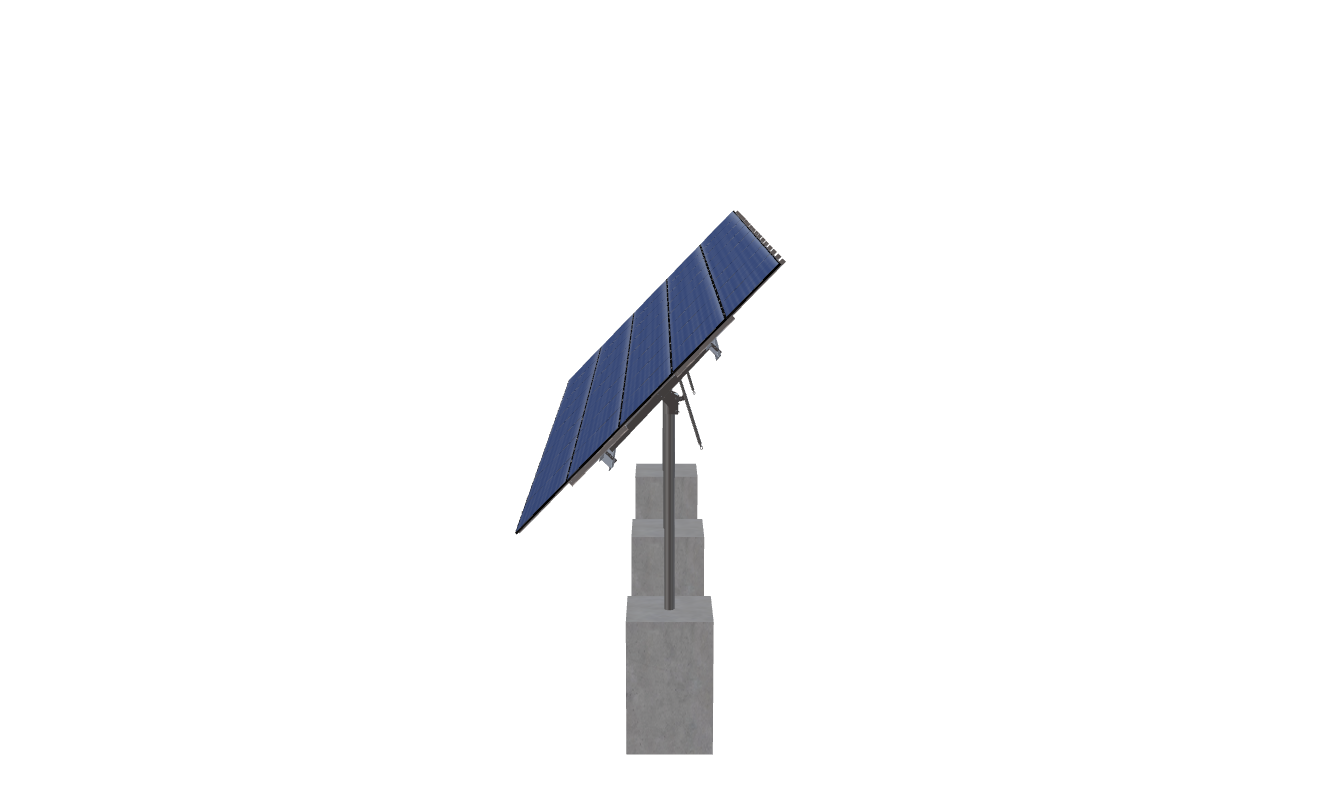

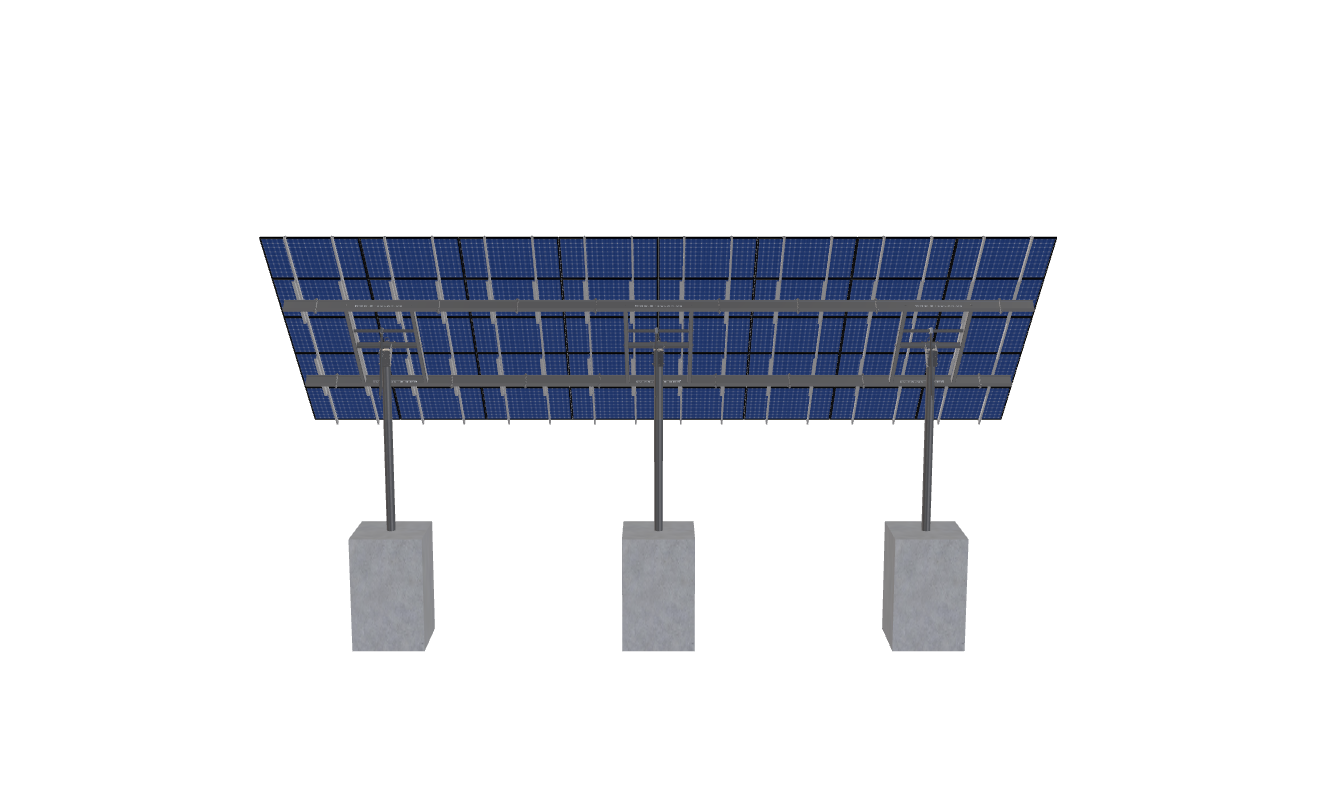

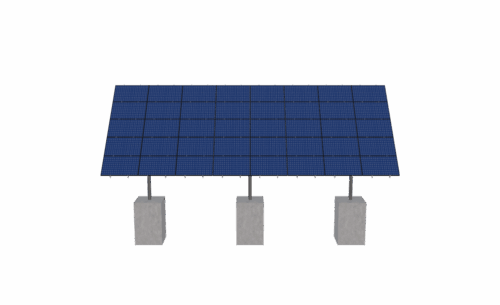

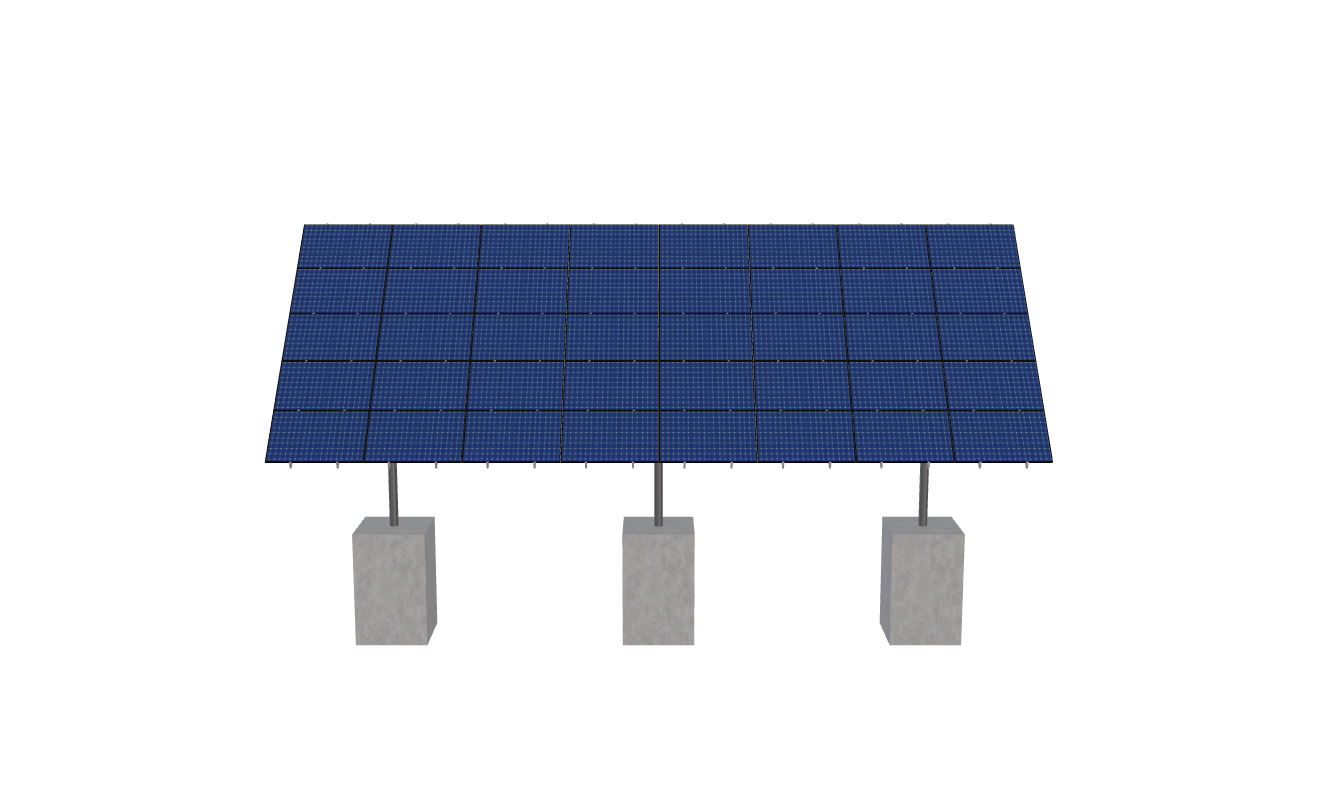

See 3D Model Here
MTSOLAR_KCC30HDBK4B4
$15,361.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2927.29 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-HD-24-L-5HX8W-I031 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.77 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 882.56 |
| ARRAY WIDTH | 46.91 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 69.37 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 18.53 |
| PROJECTED PANEL HEIGHT | 13.53 |
| DESIGNER NAME | KEN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 3156811395.00 |
| PROJECT ID | MTSOLAR, KCC30HDBK4B4 |
| SITE ADDRESS | CARTHAGE, NY, 13619, USA |
| MODULE INFO | TRINA, BIFACIAL |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15361.55 |
| TOTAL WEIGHT | 2927.29 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/1ec07b25-0734-4f0e-90a0-18812916bccd.pdf |
|
| ID | 11311.00 |
| 3D Solar link |
