This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

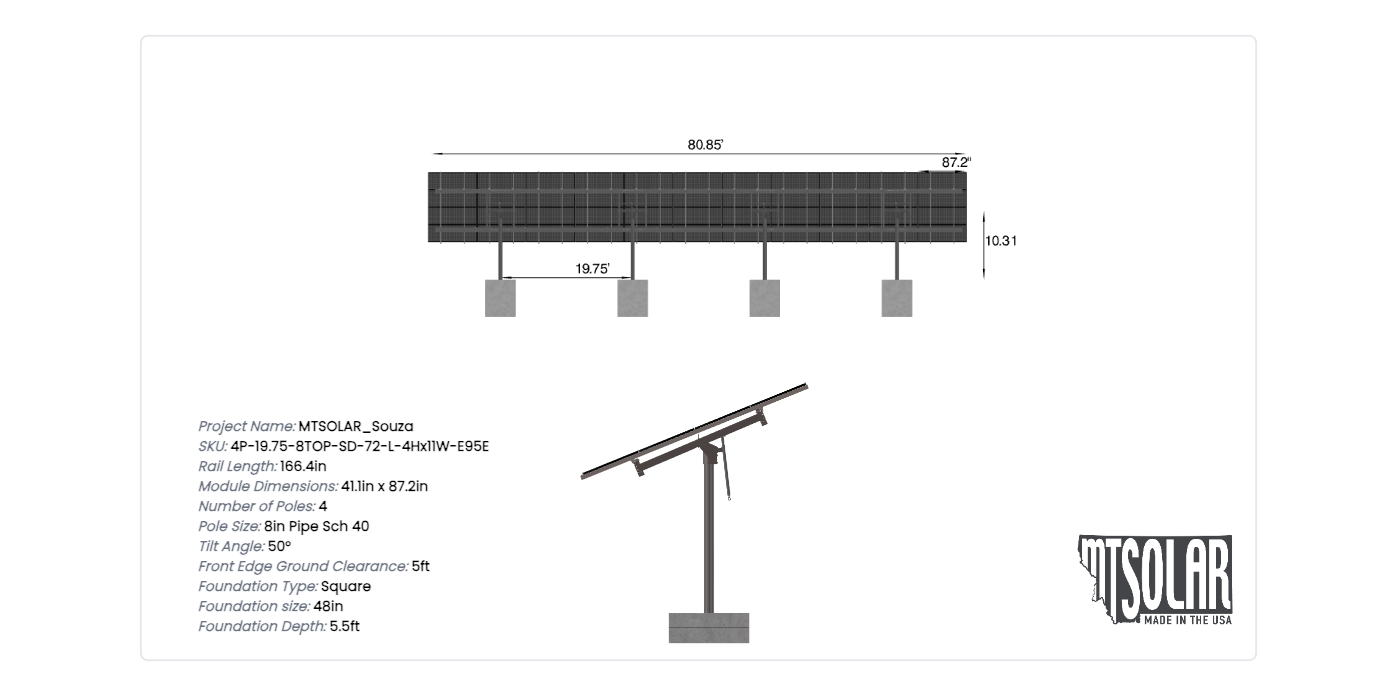

See 3D Model Here

SKU: 4P-19.75-8TOP-SD-72-L-4Hx11W-E95E Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3086.92 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-8TOP-SD-72-L-4HX11W-E95E

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

10.31

WING SPAN

72.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

50.00

CANTILEVER

945.00

GROUND CLEARANCE

5.00

NO POLES

4.00

MODULE AREA

1121.12

ARRAY WIDTH

80.85

ARRAY HEIGHT

13.87

RAIL LENGTH

166.40

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

78.75

GROUND TO TOP

15.56

PROJECTED PANEL HEIGHT

10.49

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, SOUZA

SITE ADDRESS

29, BELL, RD, CHAZY, NY, 12921, USA

MODULE WIDTH

41.10

NUMBER ROWS

4.00

NUMBER COLUMNS

11.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

17059.95

TOTAL WEIGHT

3086.92

TOTAL PALLETS

4.00

pdf

https://skycivquotes.s3.amazonaws.com/a7fd2fa2-a756-43f5-8b33-aff9a96ea320.pdf

ID

4959.00
