$8,947.32

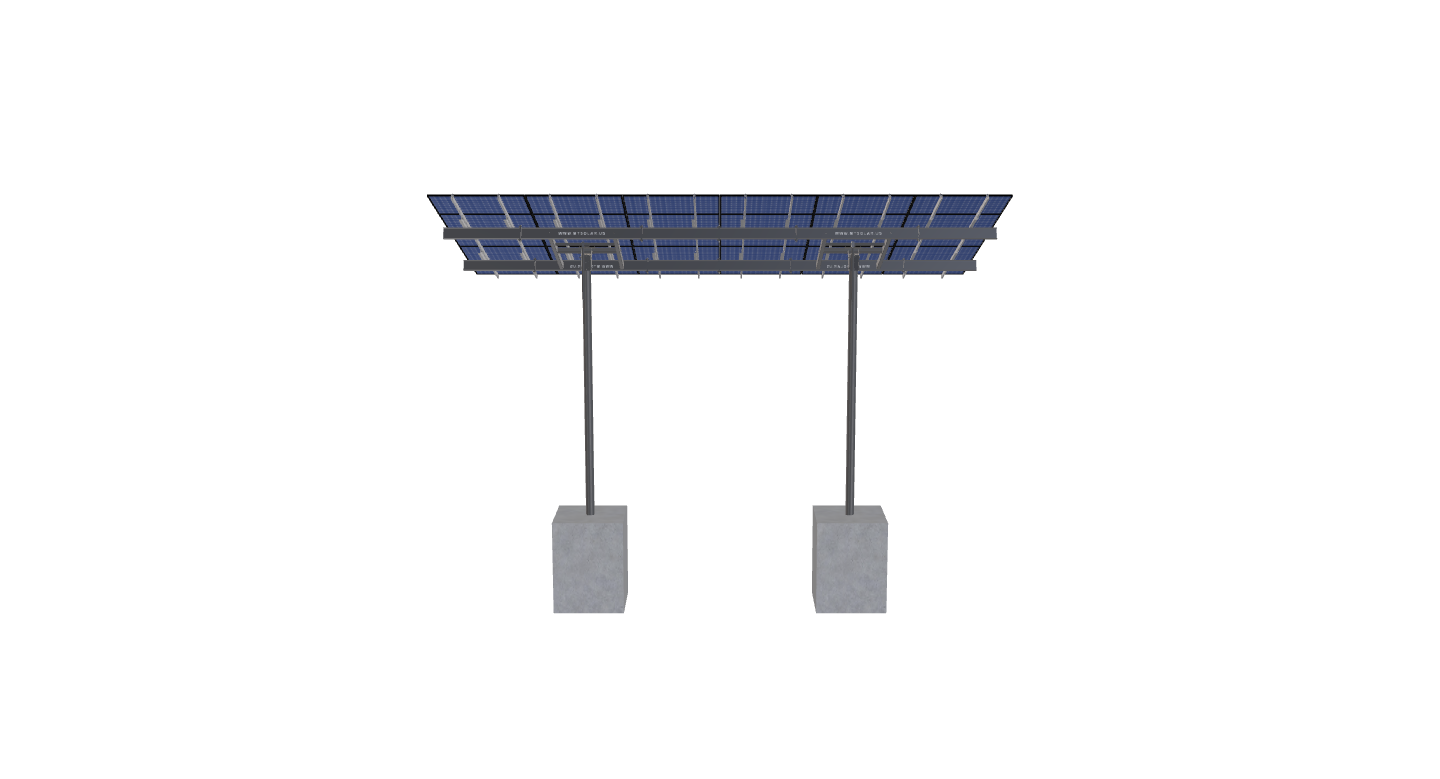

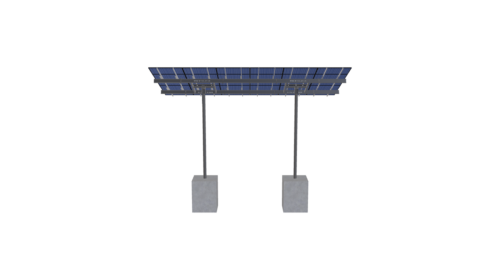

This Pole Mount is designed for modules with dimensions of 67.8″ by 44.6″ and an array layout of 5 high by 6 wide.
This mount fits on 2 – 6″ Sch 80 steel poles with a spacing of 19.75′ (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
SKU: 2P-19.75-6TOP-SD-36-L-5Hx6W-B12H
See 3D Model Here
This Pole Mount is designed for modules with dimensions of 67.8″ by 44.6″ and an array layout of 5 high by 6 wide.
This mount fits on 2 – 6″ Sch 80 steel poles with a spacing of 19.75′ (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
SKU: 2P-19.75-6TOP-SD-36-L-5Hx6W-B12H
See 3D Model Here
| Weight | 1808.6399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://skycivquotes.s3.amazonaws.com/84c65fe1-a592-4998-a023-8ea4a6a0cd26.pdf |
|

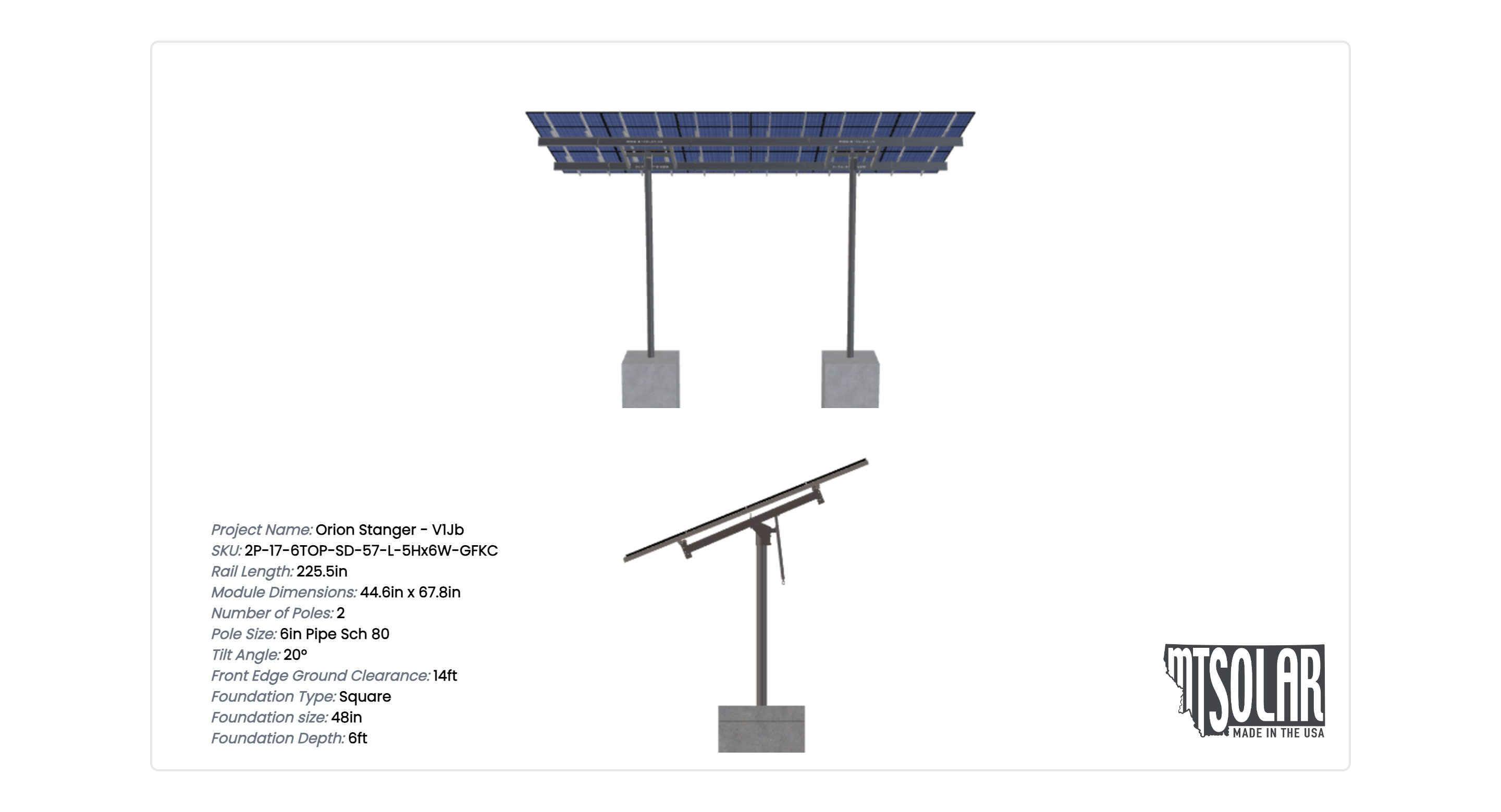

| PRODUCT TYPE | BEAM |
| PROJECT ID | ORION, STANGER, -, V1JB |
| SKU CODE | 2P-17-6TOP-SD-57-L-5HX6W-GFKC |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| DUTY SIZE | SD |
| WING SPAN | 57.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| MODULE WIDTH | 44.60 |
| MODULE LENGTH | 67.80 |
| TILT ANGLE | 20.00 |
| GROUND CLEARANCE | 14.00 |
| ARRAY WIDTH | 34.40 |
| ARRAY HEIGHT | 18.79 |
| MODULE AREA | 646.43 |
| POLE HEIGHT | 17.21 |
| GROUND TO TOP | 20.39 |
| RAIL LENGTH | 225.50 |
| MAX FOUNDATION DEPTH | 6.00 |
| TOTAL FRAME LENGTH | 34.00 |
| PROJECTED PANEL HEIGHT | 6.36 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER EMAIL | |
| SITE ADDRESS | 22212, LOCUST, WY, BRIER, WA, 98036, USA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| TOTAL PRICE | 9204.29 |
| TOTAL WEIGHT | 1808.64 |
| TOTAL PALLETS | 2.00 |
| ID | 7978.00 |
| 3D Solar link |
