Plant Land – V1JB

$18,336.97

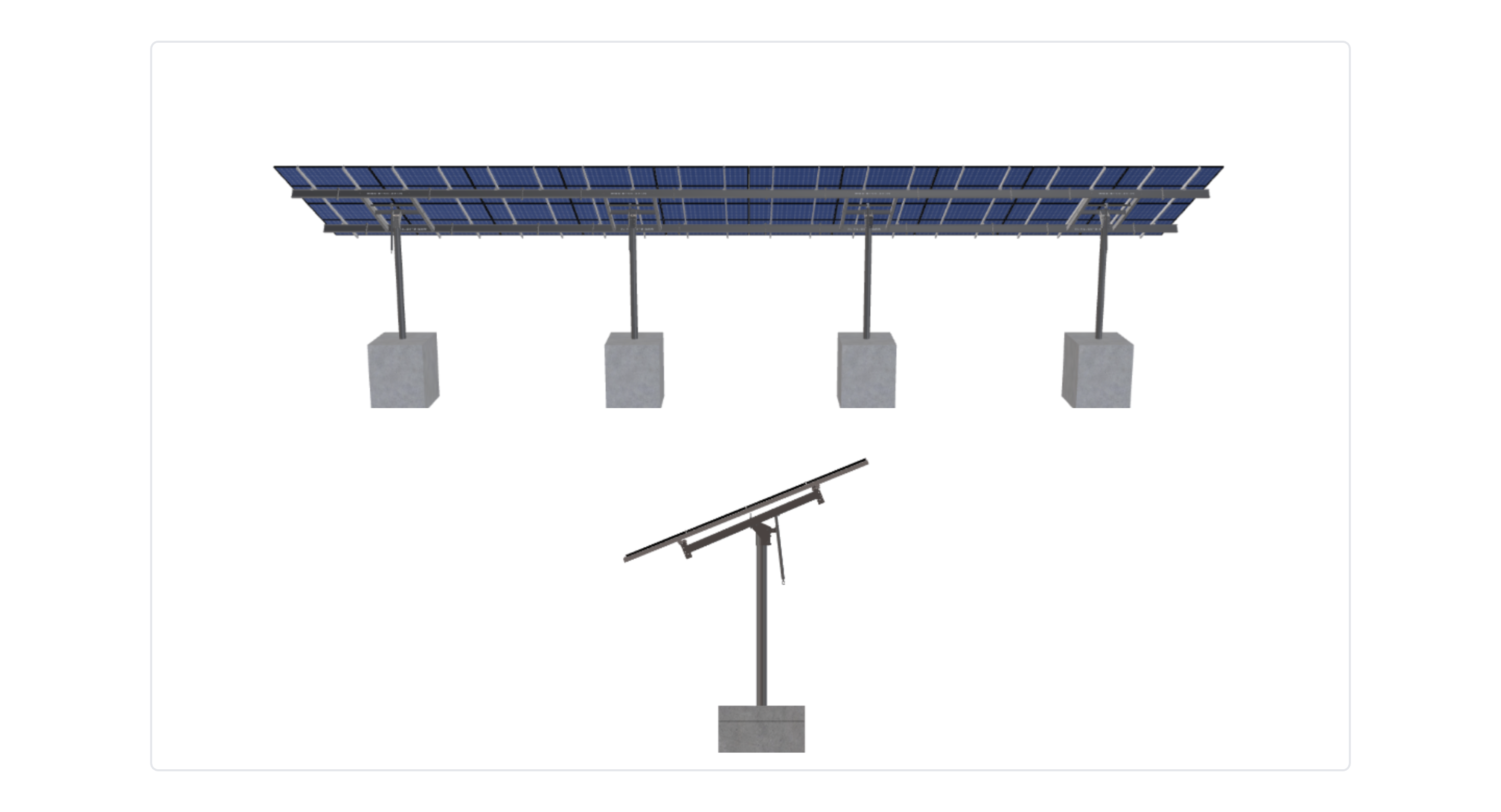

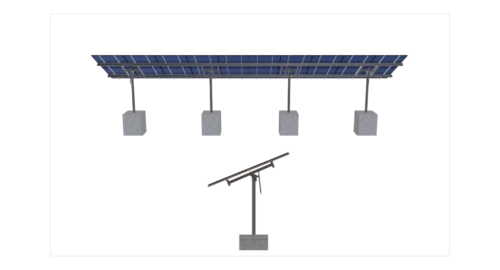

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8 inches by 44.6 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $18,336.97
Total options:
Order total:
SKU: 4P-19.75-6TOP-HD-45-L-4Hx10W-IHLE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8 inches by 44.6 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3414.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-6TOP-HD-45-L-4HX10W-IHLE

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

10.76

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

30.00

CANTILEVER

891.00

GROUND CLEARANCE

7.00

NO POLES

4.00

MODULE AREA

1124.99

ARRAY WIDTH

74.83

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

88.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

74.25

GROUND TO TOP

14.47

PROJECTED PANEL HEIGHT

7.43

WIND SPEED OVERRIDE

99.00

SNOW LOAD OVERRIDE

49.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

PLANT, LAND, -, V1JB

SITE ADDRESS

1008, US-2, KALISPELL, MT, 59901, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

18336.97

TOTAL WEIGHT

3414.38

TOTAL PALLETS

4.00
