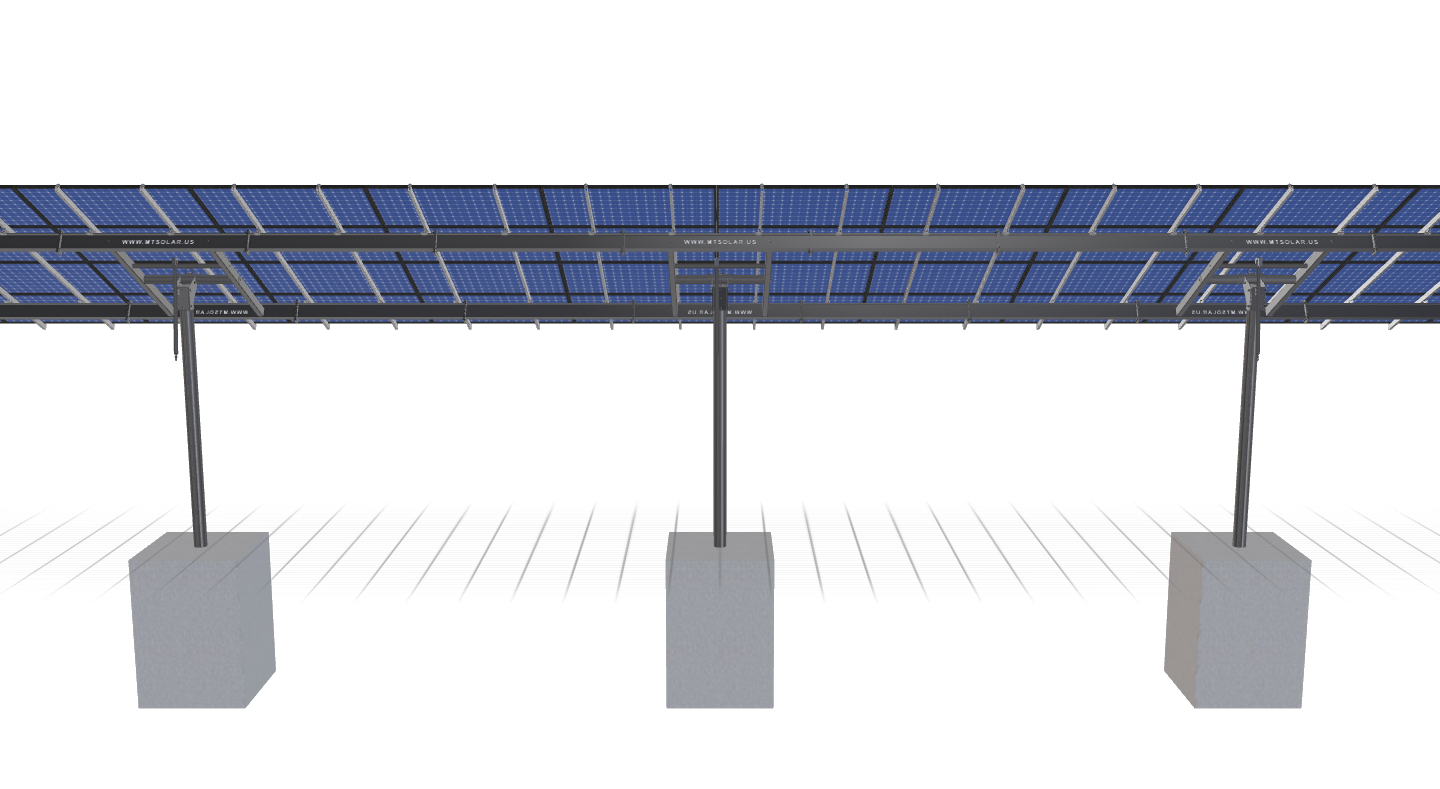

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 44.65 inches and an array layout of 16 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
PopeDouglasSWM-RevA
$30,347.79
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 44.65 inches and an array layout of 16 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5405.67 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-XD-57-L-4HX16W-FCI5 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.53 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 28.00 |
| CANTILEVER | 1284.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1625.40 |
| ARRAY WIDTH | 108.00 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 80.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 107.00 |
| GROUND TO TOP | 15.03 |
| PROJECTED PANEL HEIGHT | 6.99 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | POPEDOUGLASSWM-REVA |
| SITE ADDRESS | 2115, JEFFERSON, ST, ALEXANDRIA, MN, 56308, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 28902.66 |
| TOTAL WEIGHT | 5405.67 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/71bb66b8-ac15-49ed-8554-47735587f485.pdf |
|
| ID | 926.00 |
| 3D Solar link |
