This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.87 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

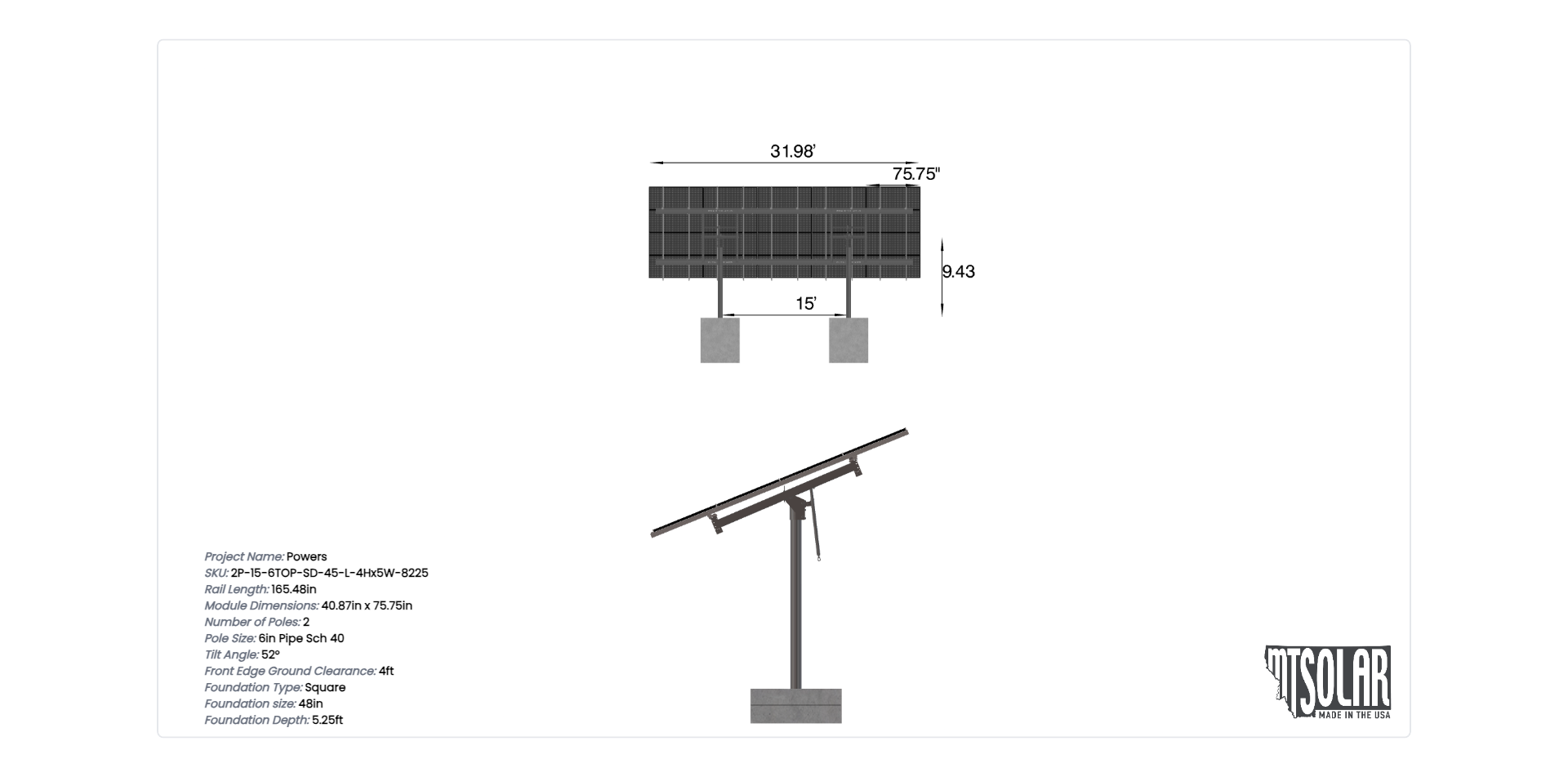

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-15-6TOP-SD-45-L-4Hx5W-8225 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.87 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1291.6 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-6TOP-SD-45-L-4HX5W-8225

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

9.43

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

52.00

CANTILEVER

360.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

440.99

ARRAY WIDTH

31.98

ARRAY HEIGHT

13.79

RAIL LENGTH

165.48

MODULE LENGTH

75.75

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

30.00

GROUND TO TOP

14.80

PROJECTED PANEL HEIGHT

10.74

PROJECT ID

POWERS

SITE ADDRESS

1189, CANYON, DR, RIDGWAY, CO, 81432, USA

MODULE WIDTH

40.87

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

7389.99

TOTAL WEIGHT

1291.60

TOTAL PALLETS

2.00
