Presnell-TOP15-v2cu

$4,720.16

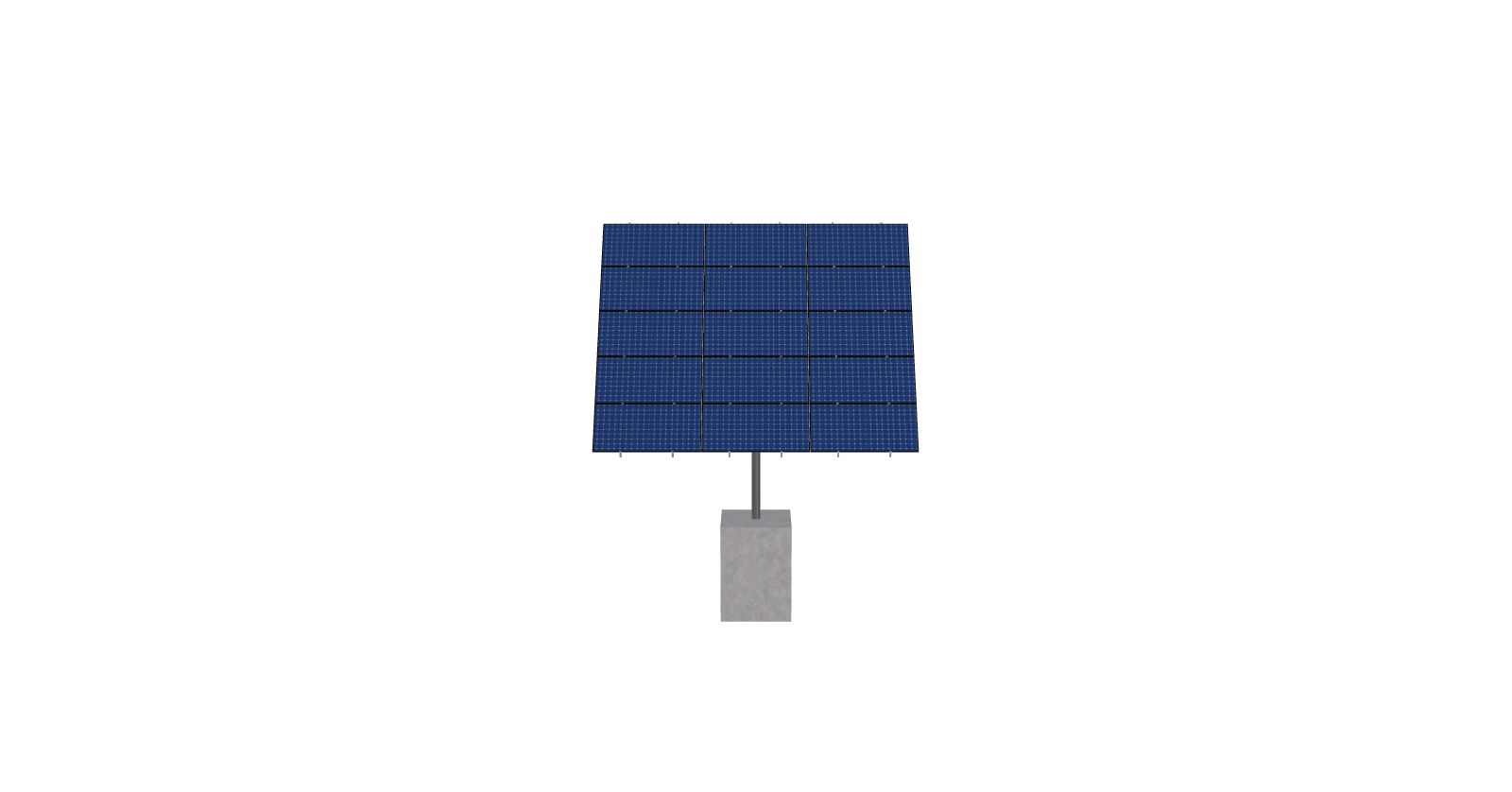

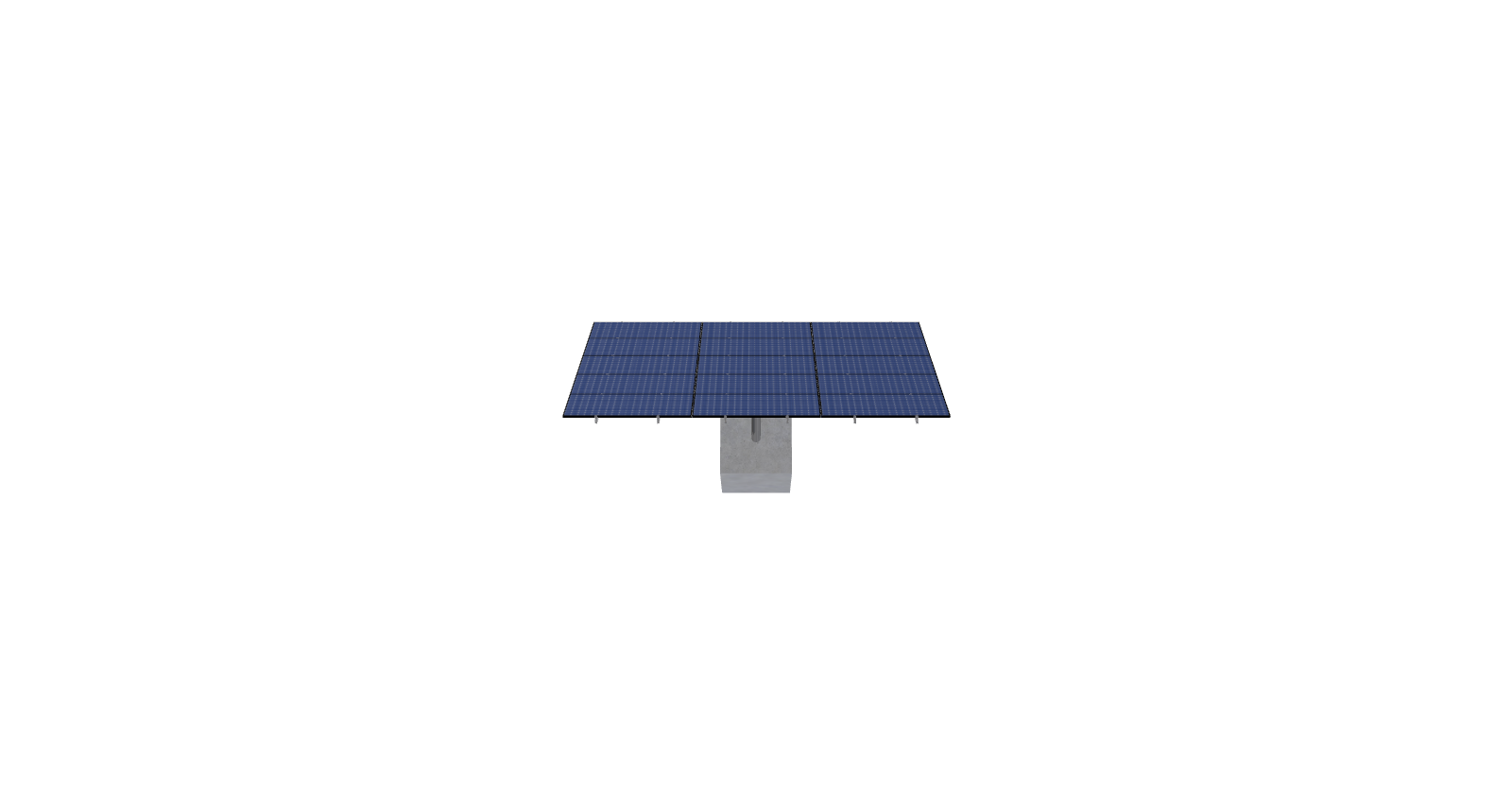

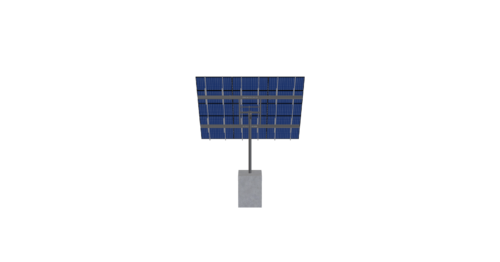

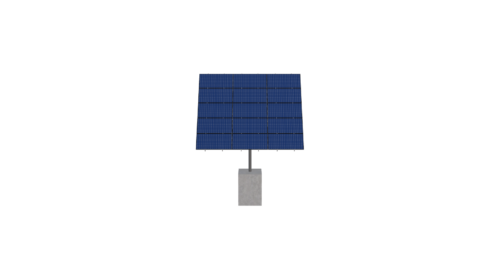

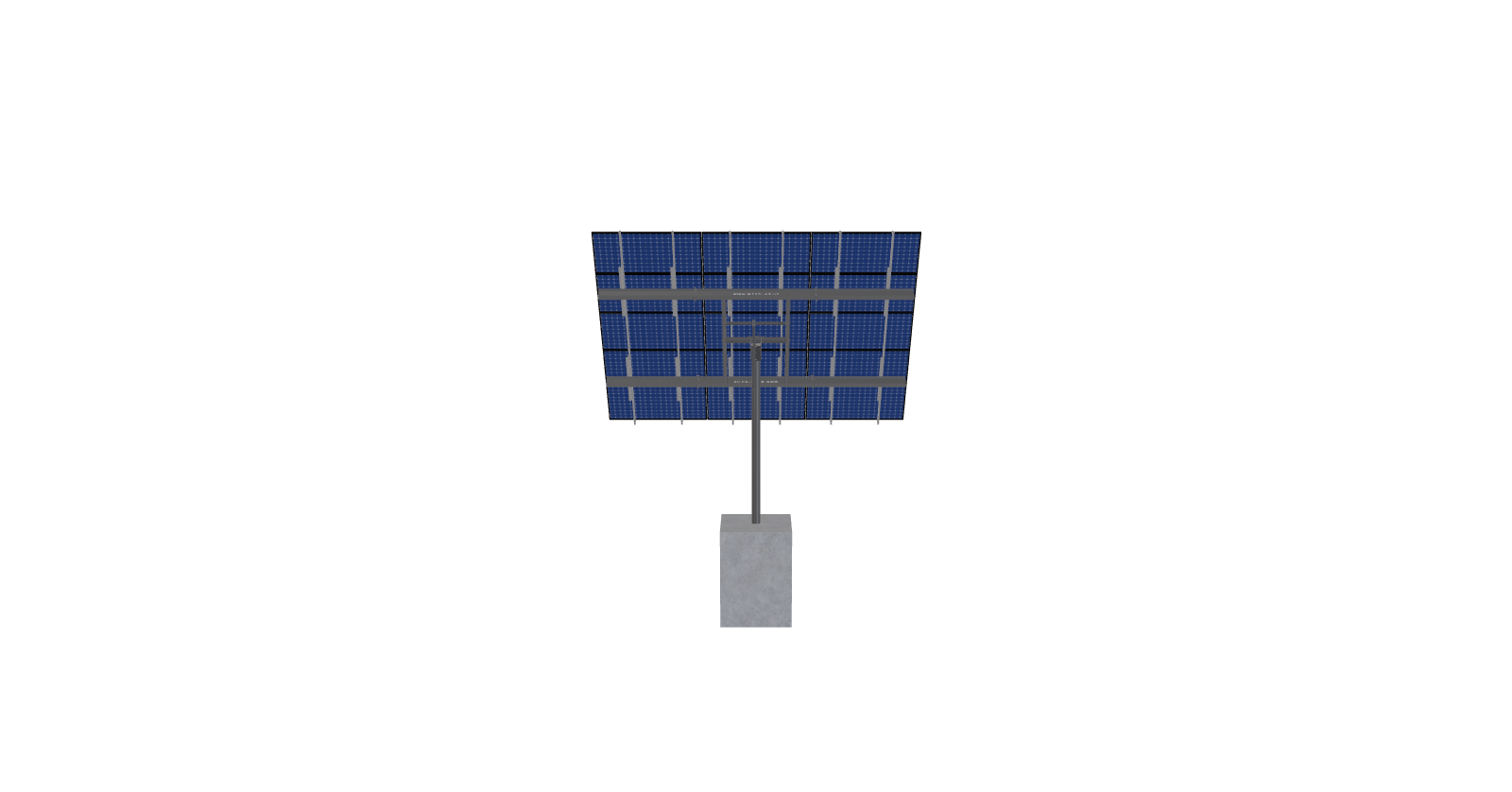

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-72-L-5Hx3W-GJ95 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.06 inches by 39.45 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 937.3199999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-72-L-5HX3W-GJ95

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.82

WING SPAN

72.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

55.00

CANTILEVER

234.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

333.17

ARRAY WIDTH

20.02

ARRAY HEIGHT

16.65

RAIL LENGTH

199.75

MODULE LENGTH

79.06

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

18.55

PROJECTED PANEL HEIGHT

13.46

WIND SPEED OVERRIDE

98.00

SNOW LOAD OVERRIDE

69.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

PRESNELL-TOP15-V2CU

SITE ADDRESS

ST, REGIS, MT, 59866, USA

MODULE WIDTH

39.45

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4720.16

TOTAL WEIGHT

937.32

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/7ace8250-e251-4c76-bac6-cf01e47e62bf.pdf

ID

7381.00
