$3,306.69

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

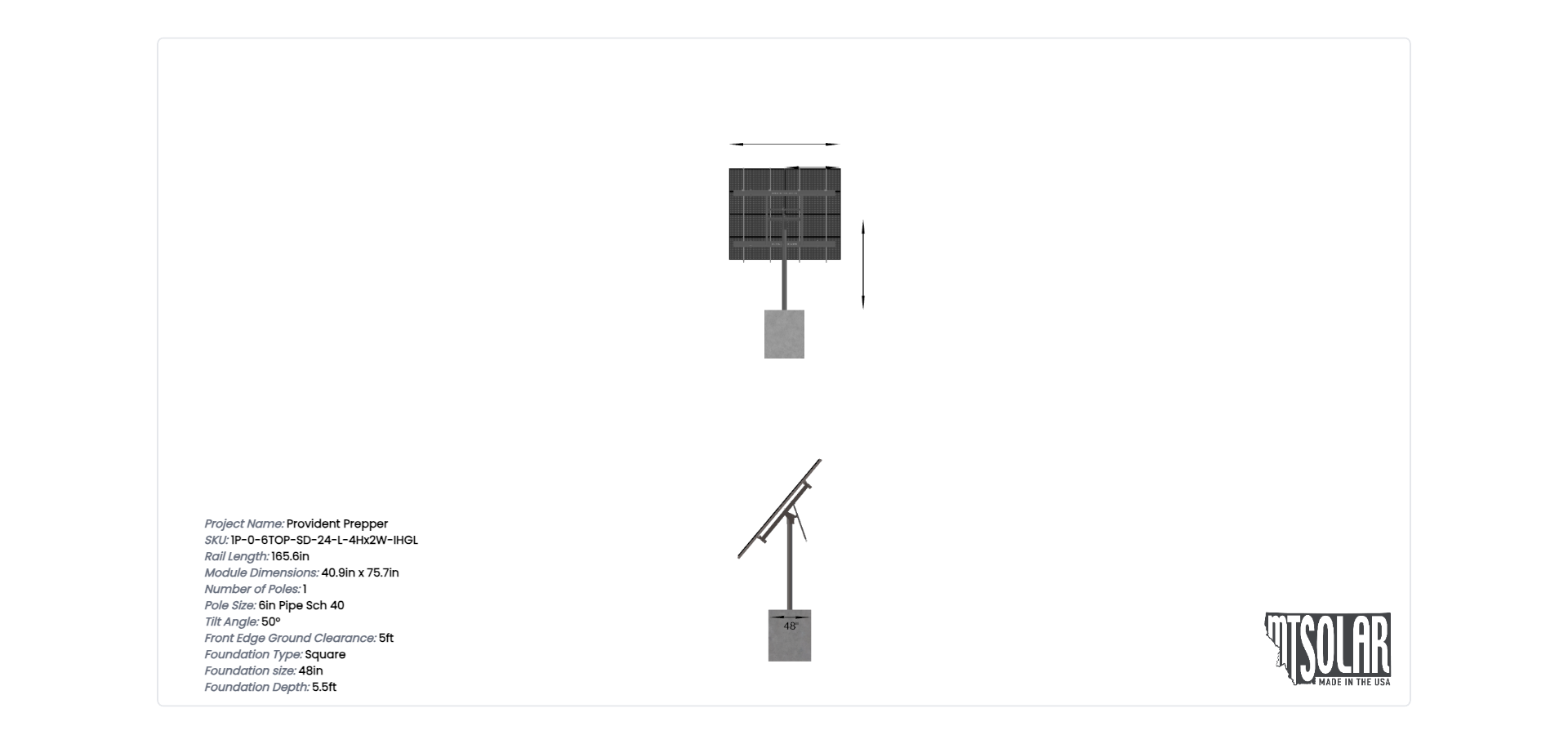

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-24-L-4Hx2W-IHGL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 563.44 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-24-L-4HX2W-IHGL

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.29

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

50.00

CANTILEVER

138.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

176.41

ARRAY WIDTH

12.78

ARRAY HEIGHT

13.80

RAIL LENGTH

165.60

MODULE LENGTH

75.70

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

15.51

PROJECTED PANEL HEIGHT

10.44

PROJECT ID

PROVIDENT, PREPPER

SITE ADDRESS

26, 650, E, MONA, UT, 84645, USA

MODULE WIDTH

40.90

NUMBER ROWS

4.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

112.00

SNOW LOAD OVERRIDE

40.00

DIRECT SNOW LOAD

TRUE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3306.69

TOTAL WEIGHT

563.44

TOTAL PALLETS

1.00
