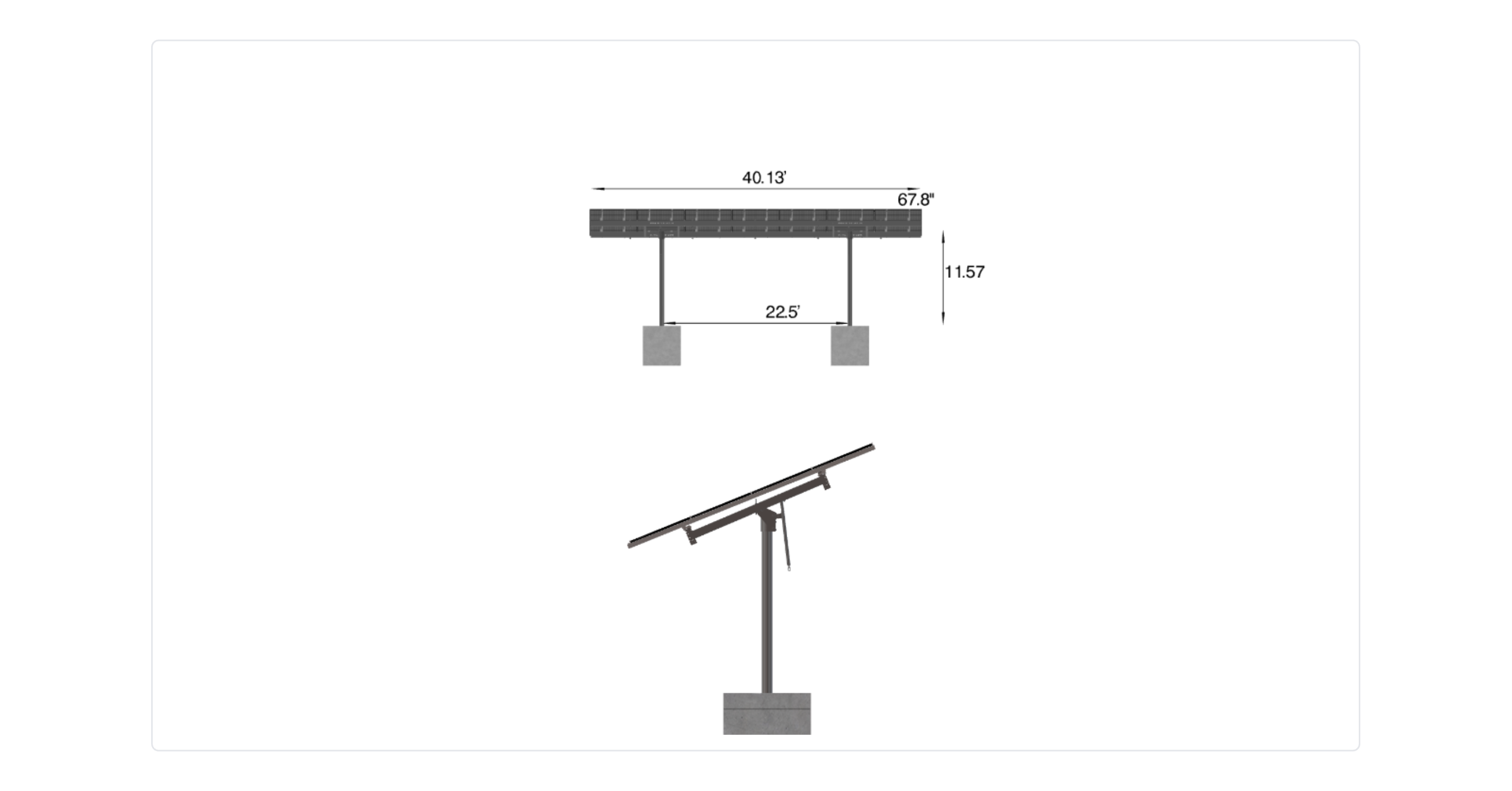

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 43 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

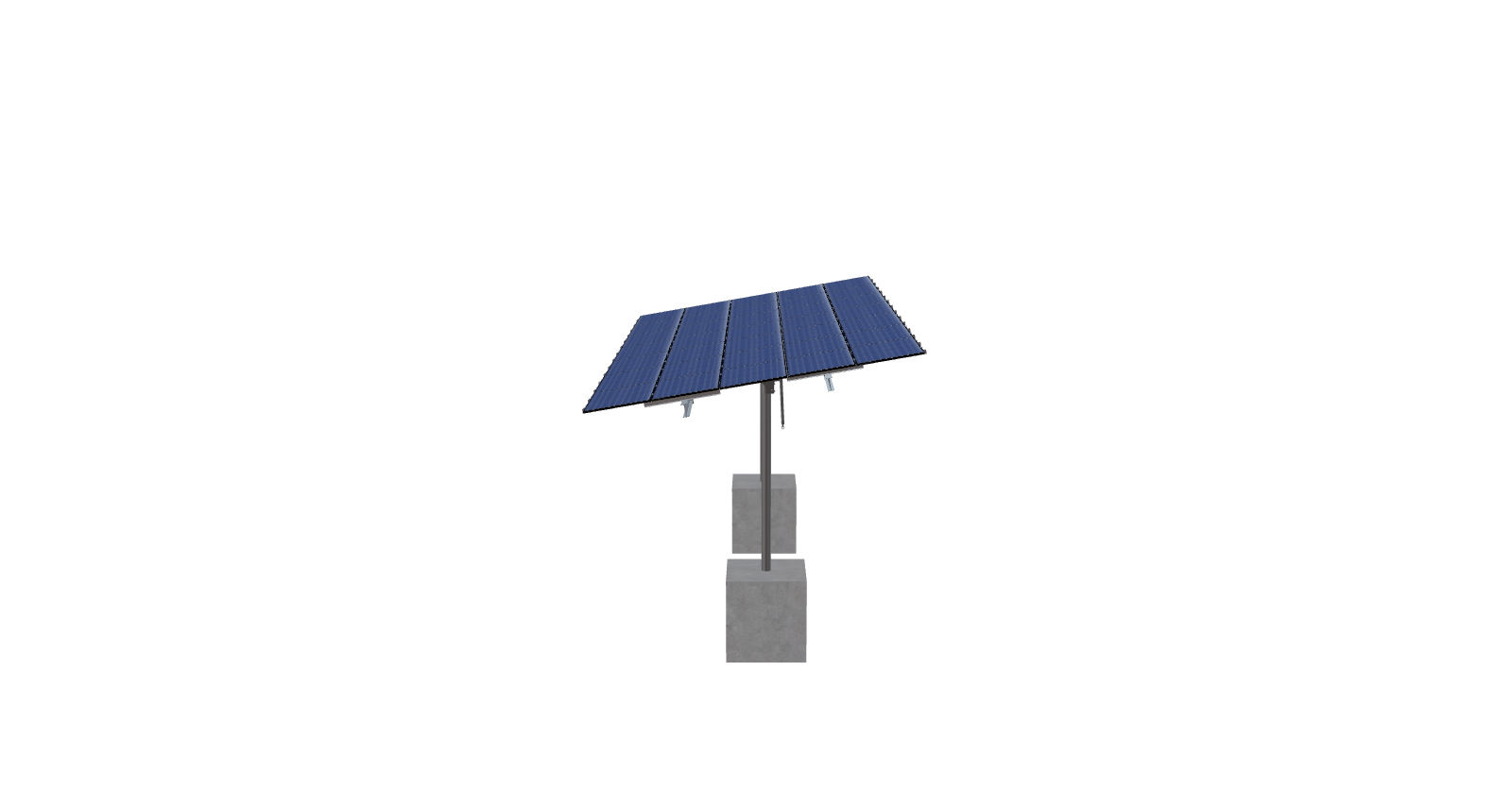

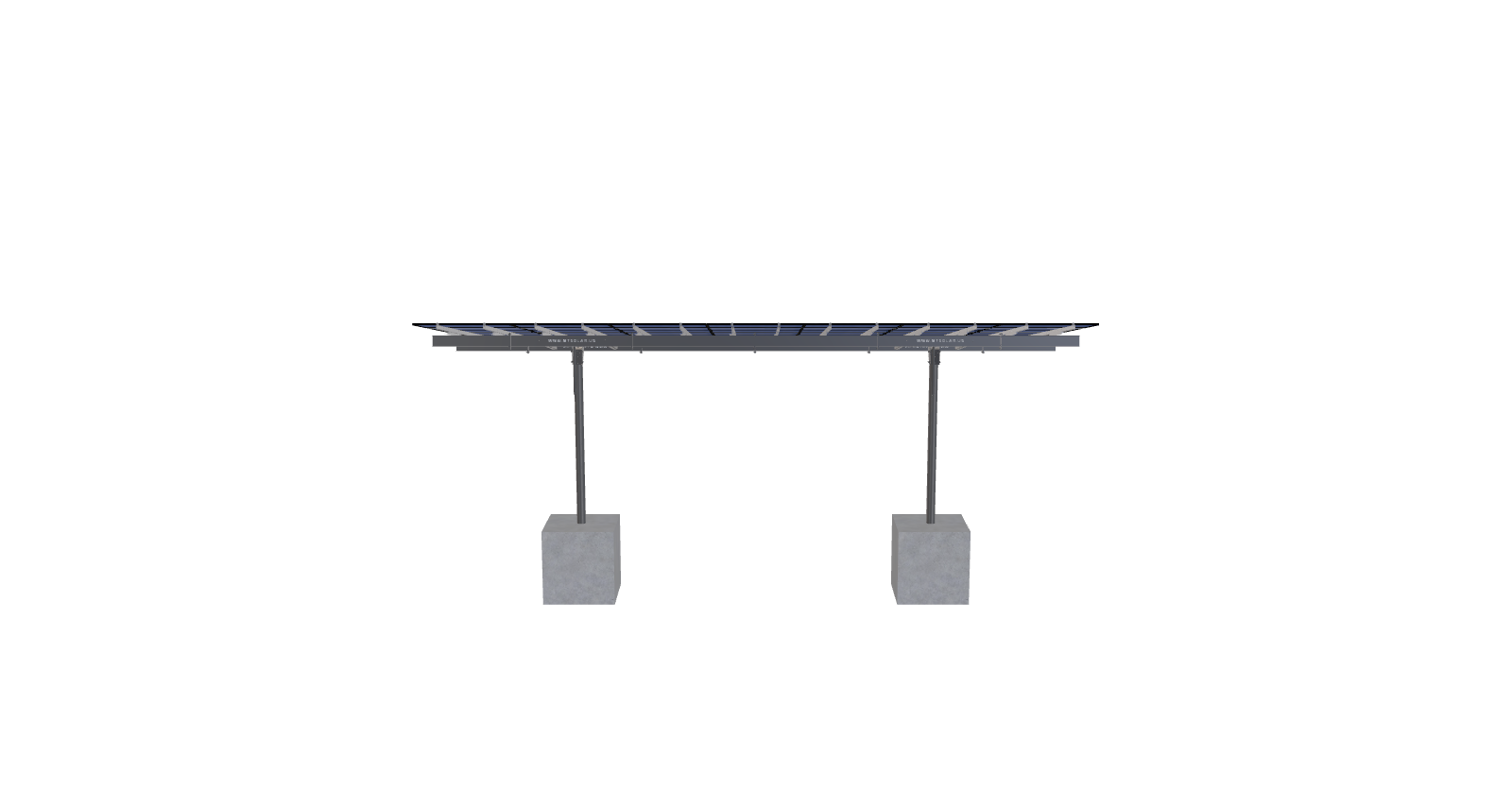

See 3D Model Here
Provo PV Carport-V2cu
$12,334.47
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 43 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2504.7799999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-XD-57-L-5HX7W-KHHH |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.57 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 727.42 |
| ARRAY WIDTH | 40.13 |
| ARRAY HEIGHT | 18.13 |
| RAIL LENGTH | 217.50 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 13.13 |
| PROJECTED PANEL HEIGHT | 3.11 |
| WIND SPEED OVERRIDE | 102.00 |
| SNOW LOAD OVERRIDE | 31.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | PROVO, PV, CARPORT-V2CU |
| SITE ADDRESS | 398, S, 500, W, PROVO, UT, 84601, USA |
| MODULE WIDTH | 43.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 12334.47 |
| TOTAL WEIGHT | 2504.78 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/127004c1-6f4a-4227-8e11-a82926e0838a.pdf |
|
| ID | 7059.00 |
| 3D Solar link |
