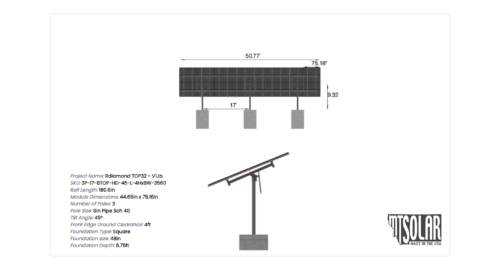

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.16 inches by 44.65 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

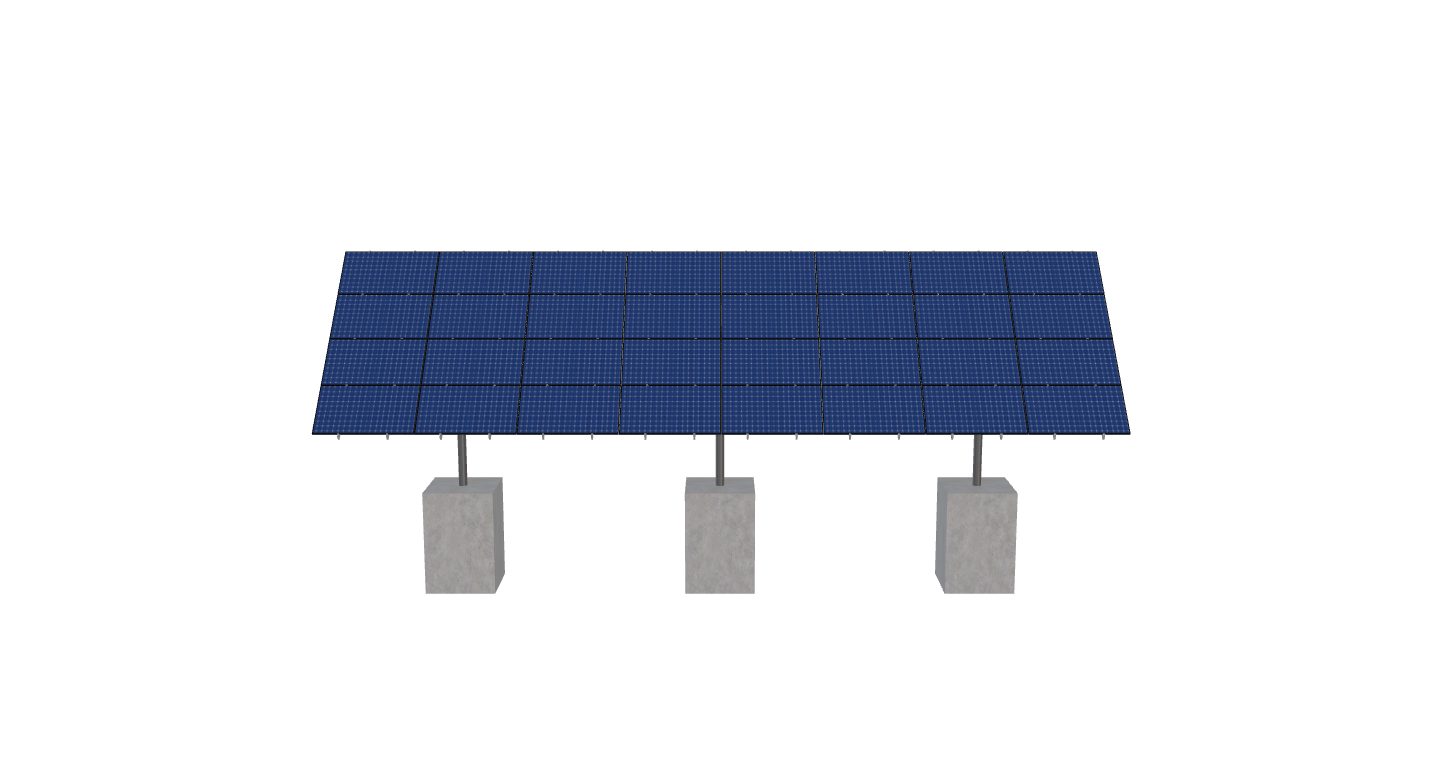

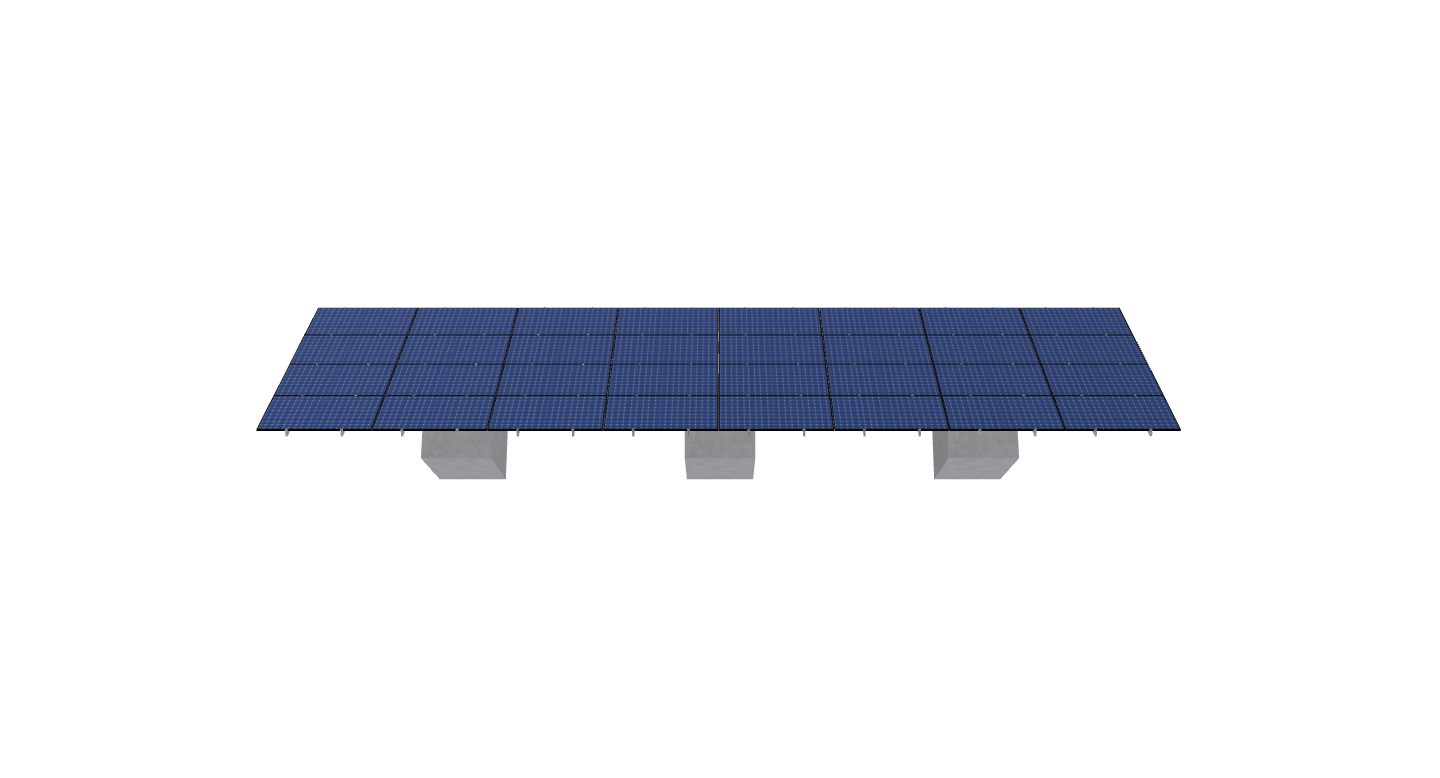

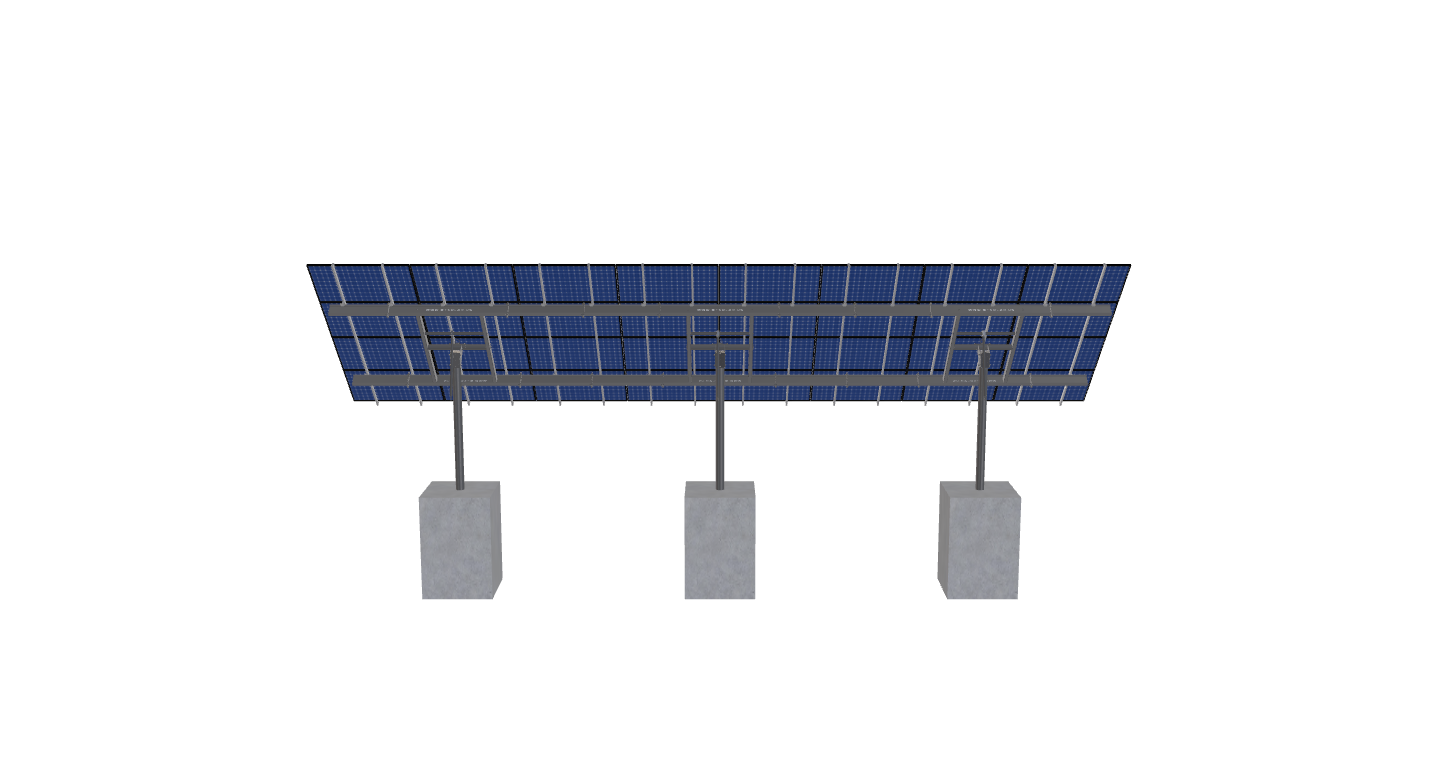

See 3D Model Here
Rdiamond TOP32 – V1Jb
$14,243.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.16 inches by 44.65 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2483.49 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-HD-45-L-4HX8W-3560 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.32 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 764.14 |
| ARRAY WIDTH | 50.77 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 75.16 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 14.64 |
| PROJECTED PANEL HEIGHT | 10.64 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | RDIAMOND, TOP32, -, V1JB |
| SITE ADDRESS | 40, GREER, RD, OROVILLE, WA, 98844, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 13565.57 |
| TOTAL WEIGHT | 2483.49 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/3edf2f20-668d-4933-8946-e0d1f9f4224b.pdf |
|
| ID | 10368.00 |
| 3D Solar link |
