This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.21 inches by 44.65 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

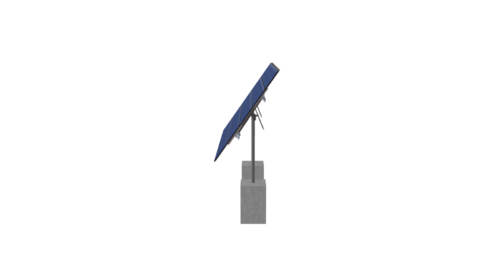

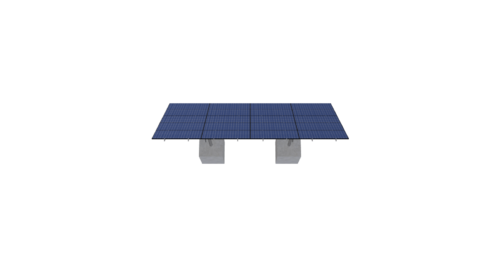

See 3D Model Here
RG 24 – Rim Rd-RCII-v1
$9,385.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.21 inches by 44.65 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1772.8600000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-45-L-5HX4W-7IAF |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 12.71 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 565.69 |
| ARRAY WIDTH | 30.07 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.21 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 20.32 |
| PROJECTED PANEL HEIGHT | 15.24 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 128.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | RG, 24, -, RIM, RD-RCII-V1 |
| SITE ADDRESS | QG99+37, CONCOW, CA, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 8938.50 |
| TOTAL WEIGHT | 1772.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/961fee1b-d938-4d96-be11-134e5ccaa934.pdf |
|
| ID | 6197.00 |
| 3D Solar link |
