Robert John

$16,833.68

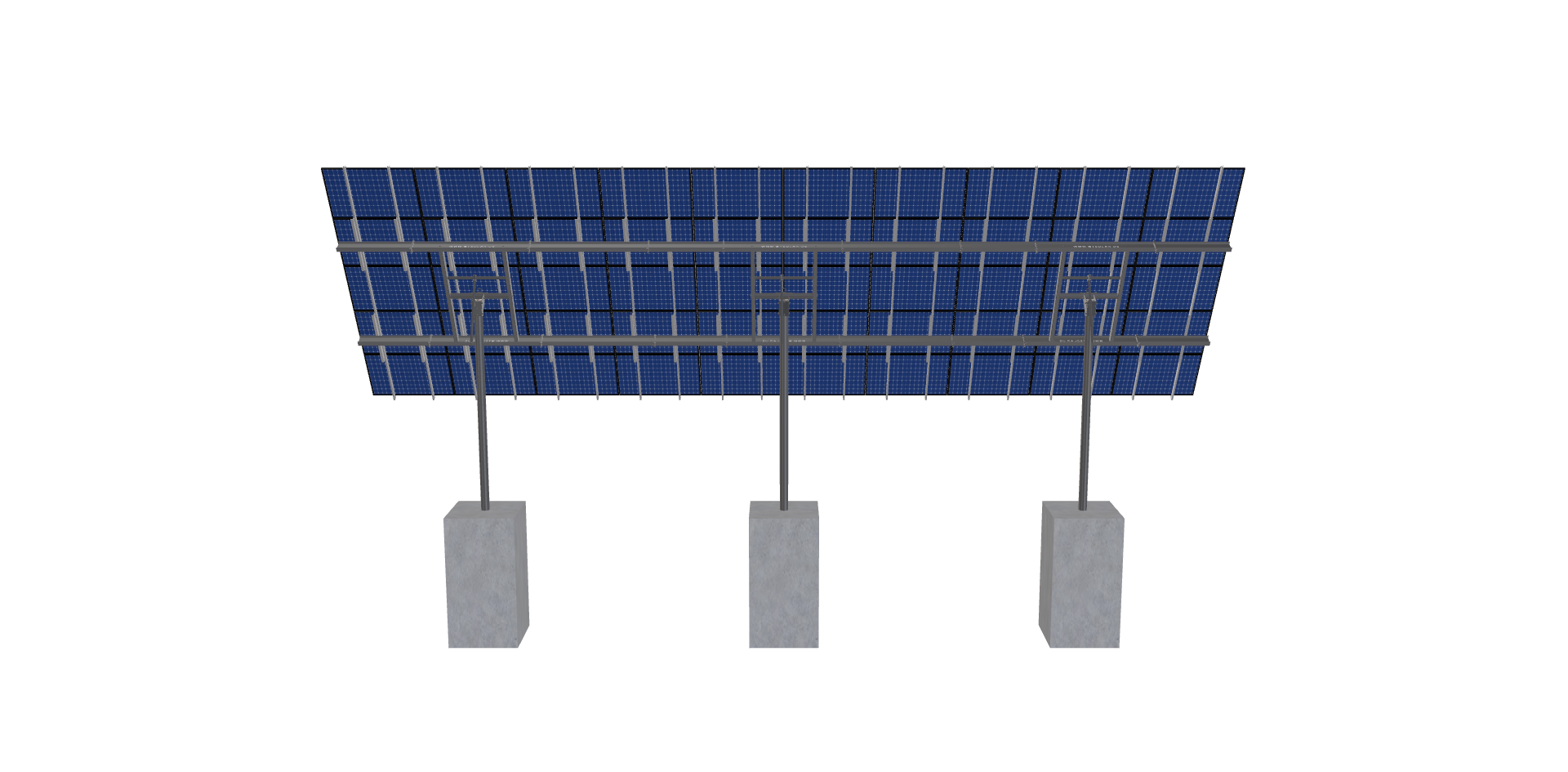

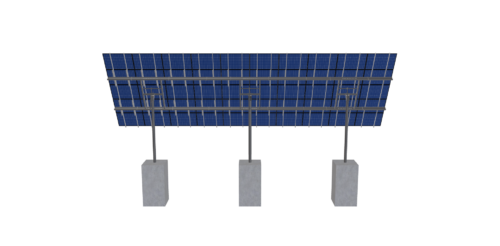

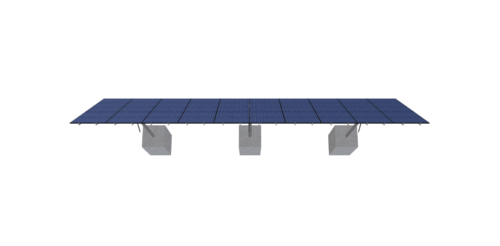

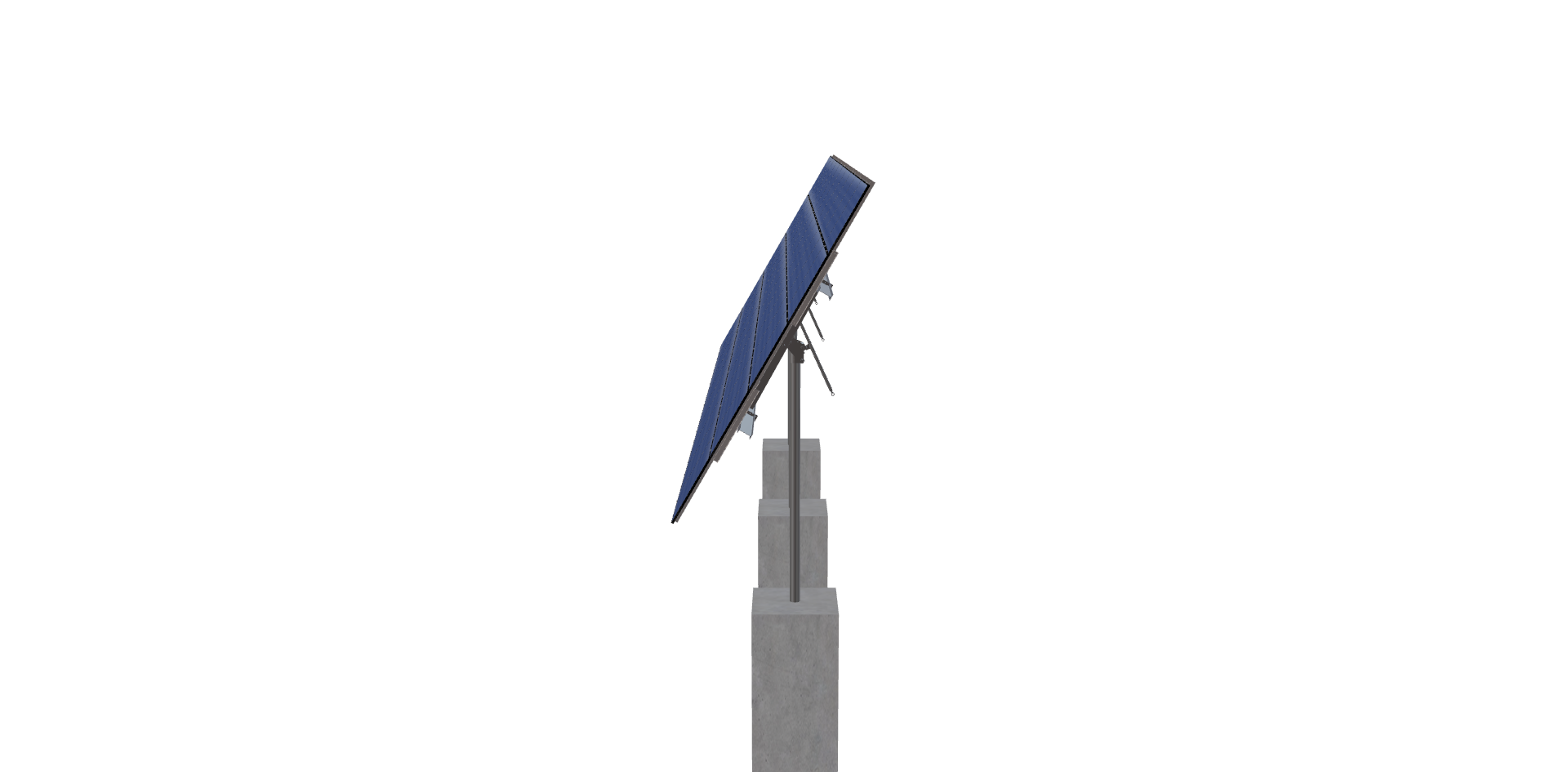

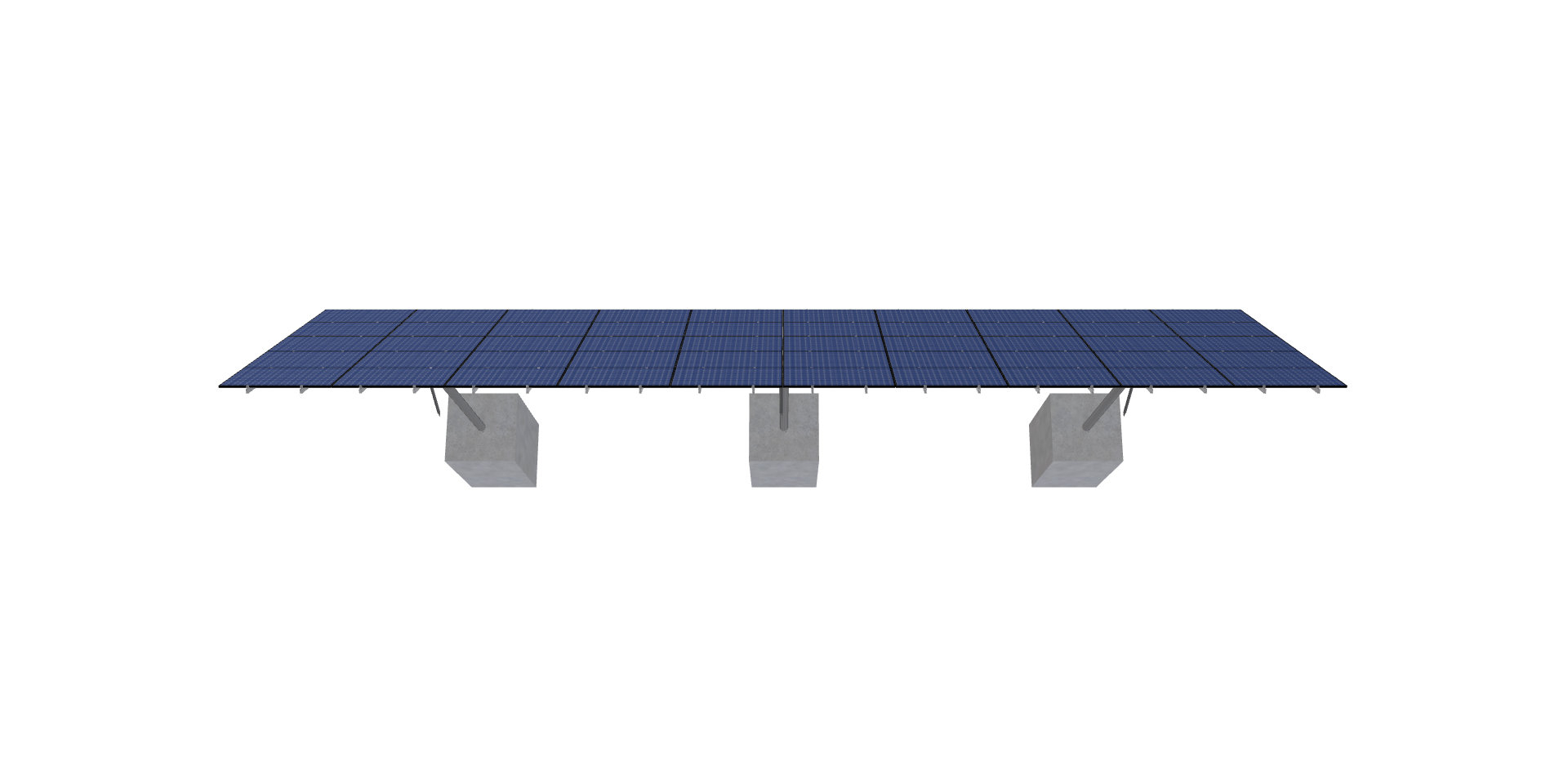

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

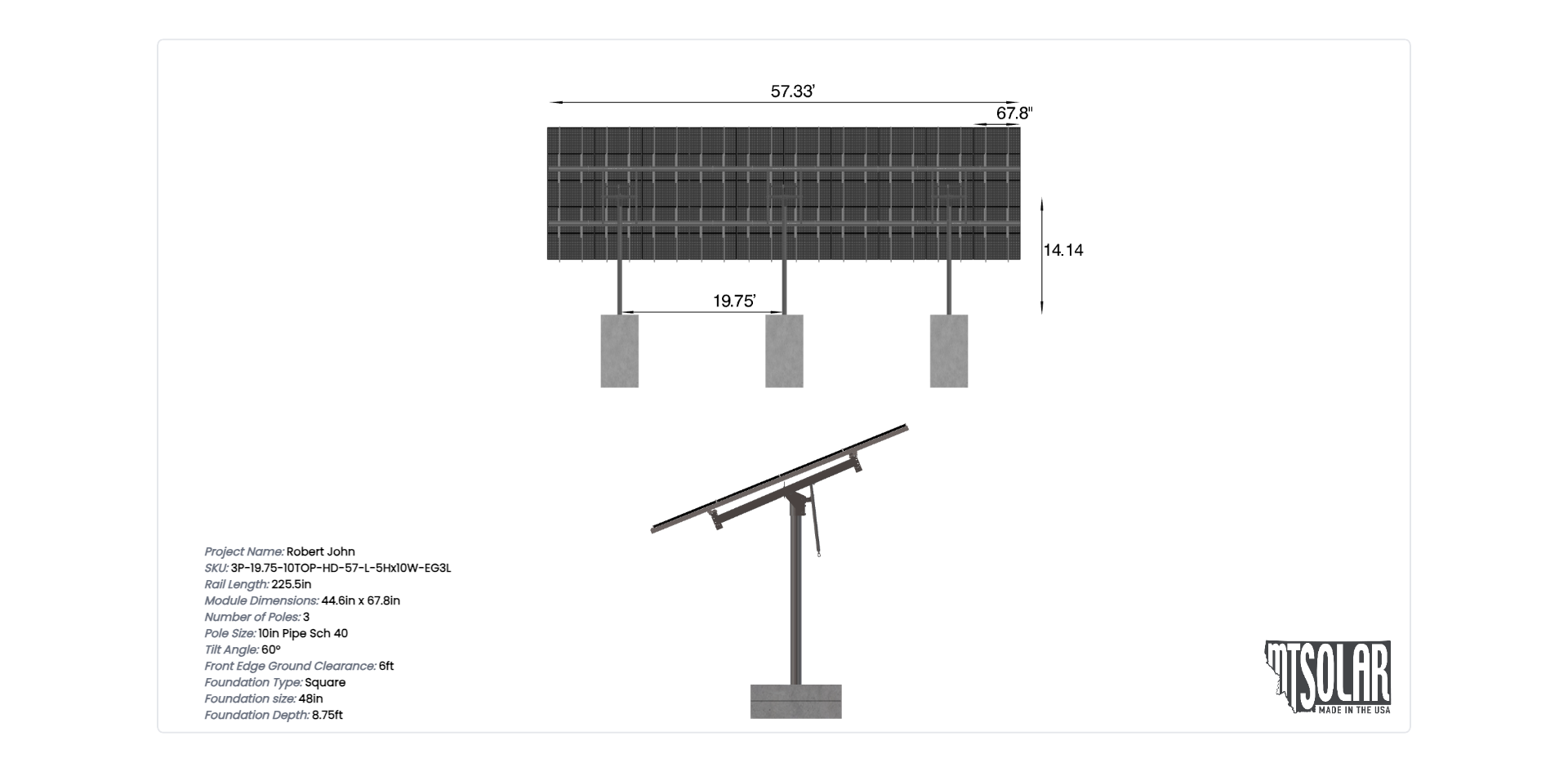

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-19.75-10TOP-HD-57-L-5Hx10W-EG3L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3395.09 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-10TOP-HD-57-L-5HX10W-EG3L

DUTY SIZE

HD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

14.14

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.75

TILT ANGLE

60.00

CANTILEVER

678.00

GROUND CLEARANCE

6.00

NO POLES

3.00

MODULE AREA

1077.39

ARRAY WIDTH

57.33

ARRAY HEIGHT

18.79

RAIL LENGTH

225.50

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

56.50

GROUND TO TOP

22.18

PROJECTED PANEL HEIGHT

16.09

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

ROBERT, JOHN

SITE ADDRESS

2549, DALL, SHEEP, LANE, FAIRBANKS, AK, 99709, USA

MODULE WIDTH

44.60

NUMBER ROWS

5.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

16833.68

TOTAL WEIGHT

3395.09

TOTAL PALLETS

3.00
