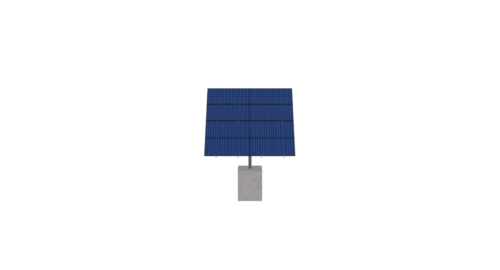

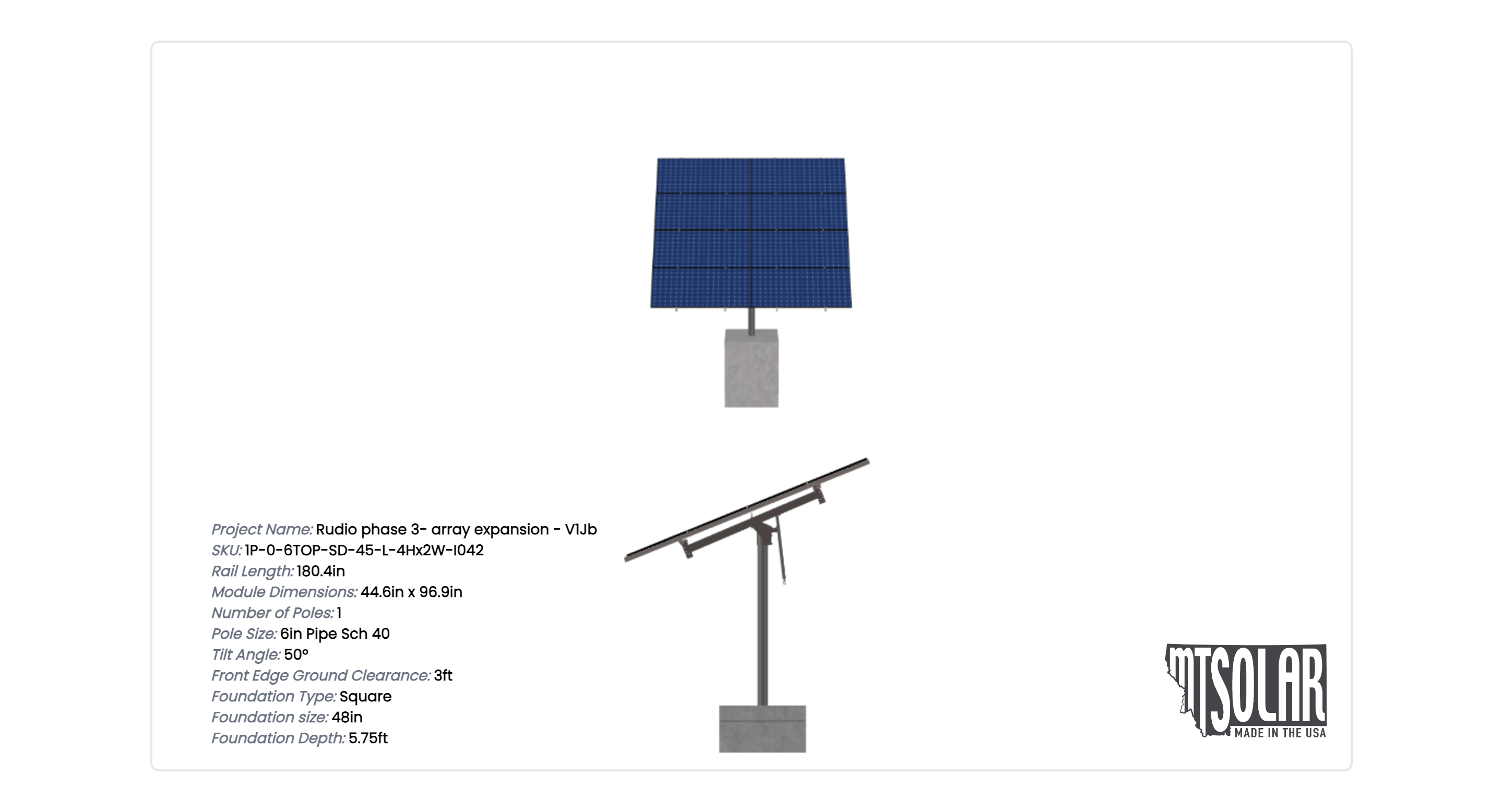

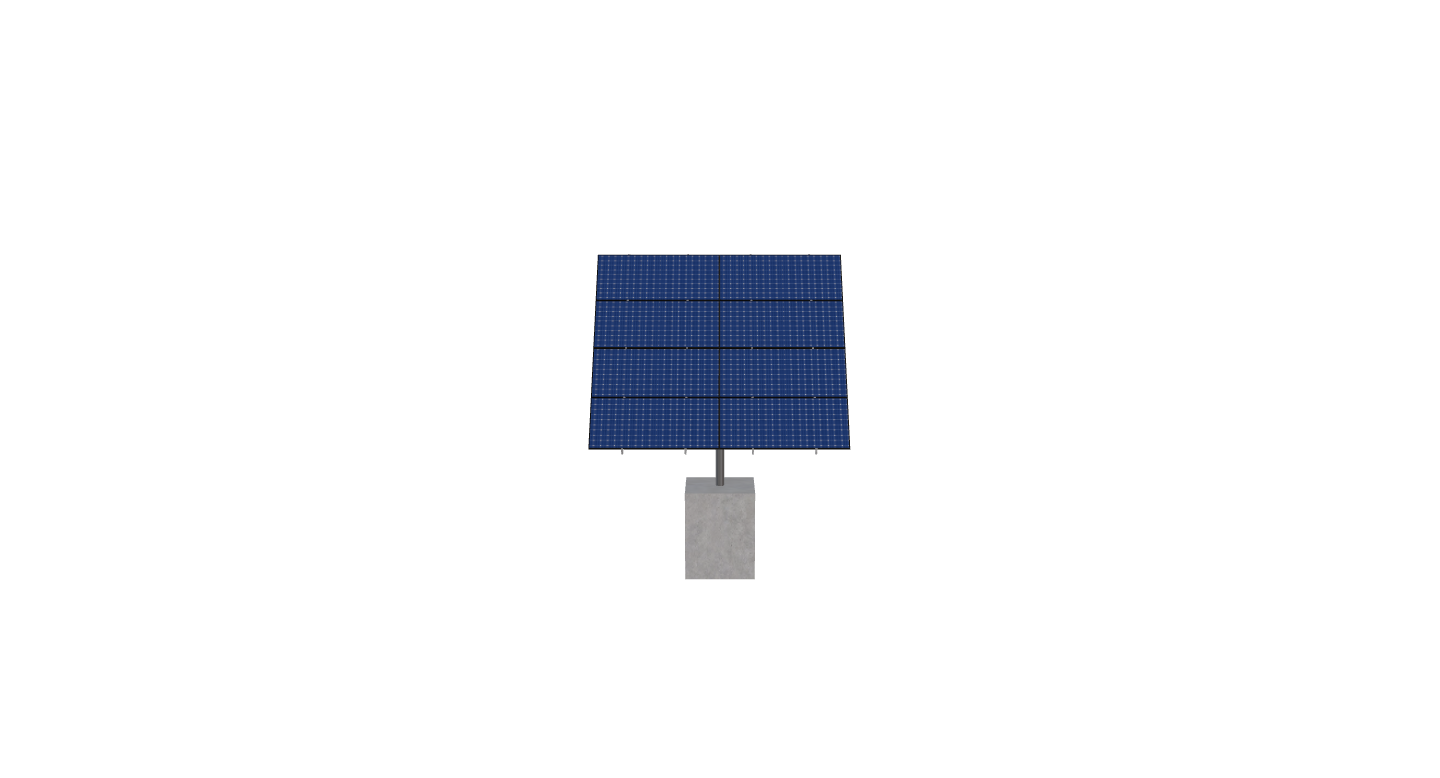

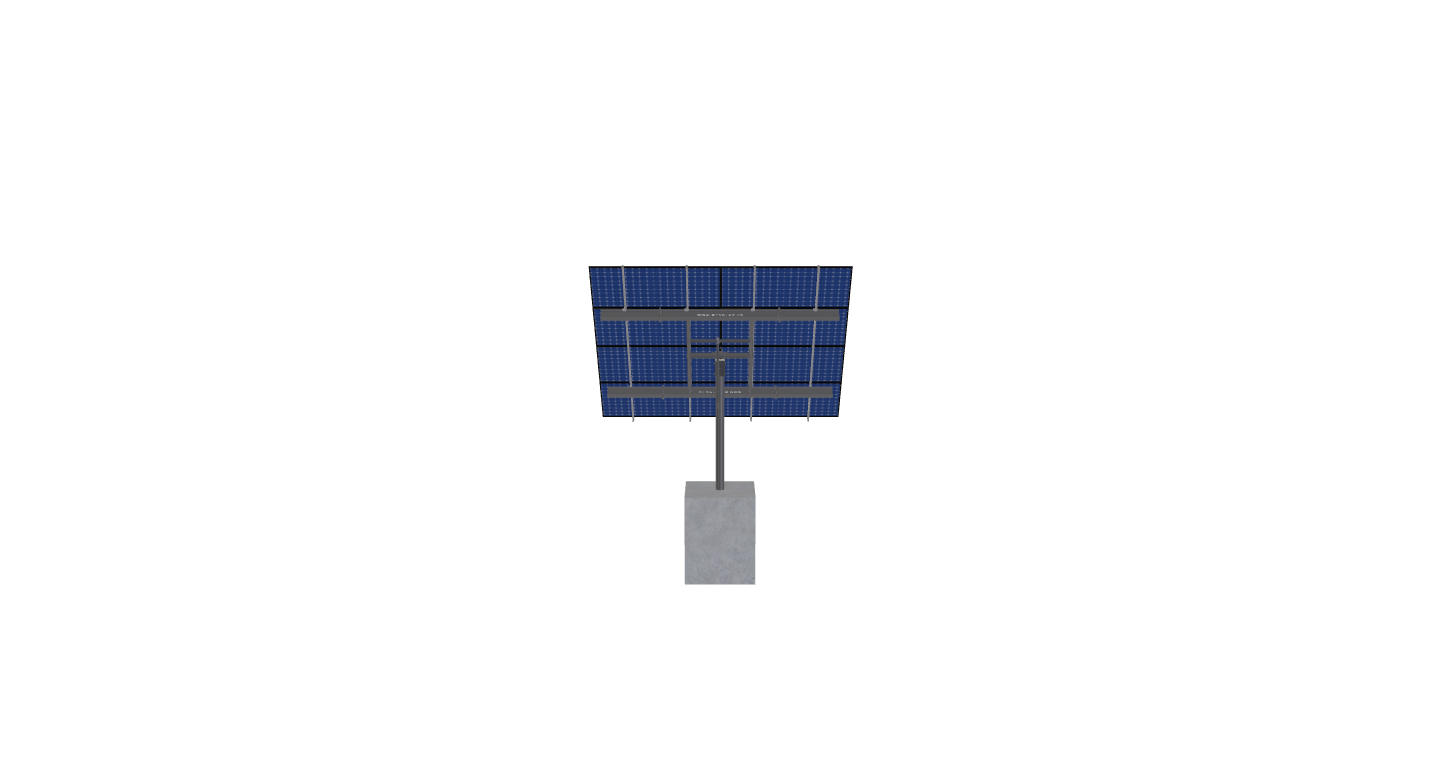

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.9 inches by 44.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Rudio phase 3- array expansion – V1Jb
$3,710.12
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.9 inches by 44.6 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 638.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-4HX2W-I042 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 245.29 |
| ARRAY WIDTH | 16.32 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 96.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 14.52 |
| PROJECTED PANEL HEIGHT | 11.52 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | RUDIO, PHASE, 3-, ARRAY, EXPANSION, -, V1JB |
| SITE ADDRESS | TIBBETTS, MOUNTAIN, RD, BROWNFIELD, ME, 04010, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 108.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3710.12 |
| TOTAL WEIGHT | 638.76 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/51d7f6f0-301b-4cc8-bec3-00fc406ca173.pdf |
|
| ID | 10889.00 |
| 3D Solar link |
