Solar Hotel – Chicago

$27,292.41

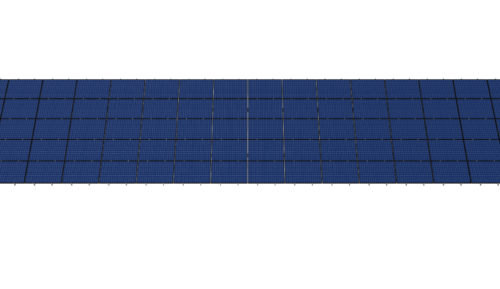

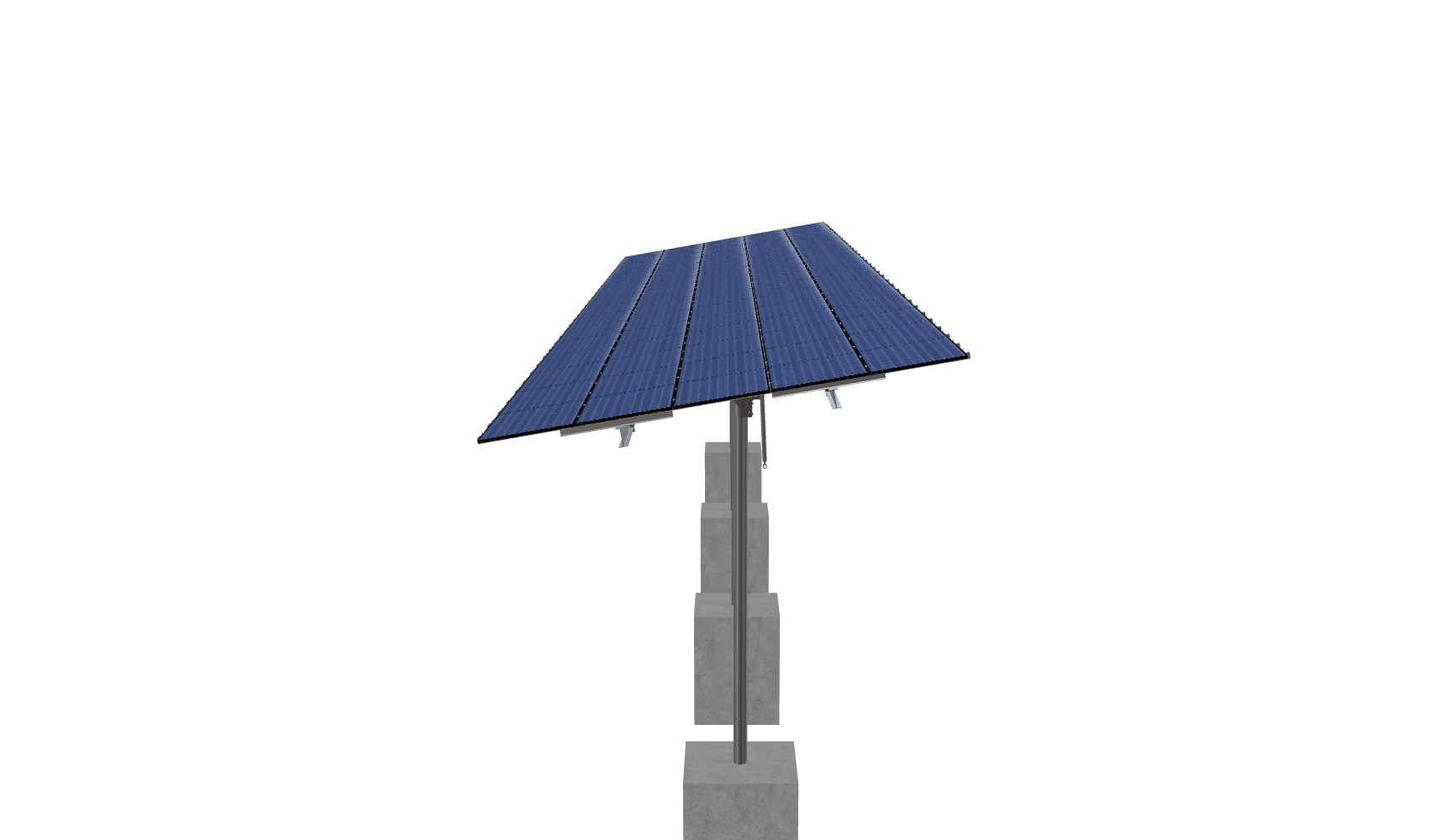

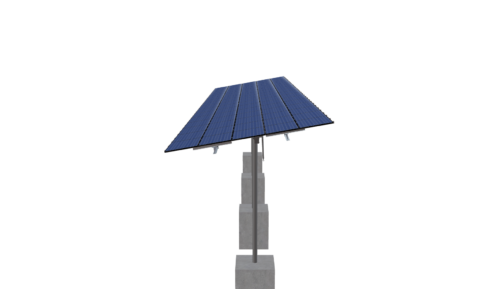

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 62 inches by 41.5 inches and an array layout of 16 wide by 5 high.

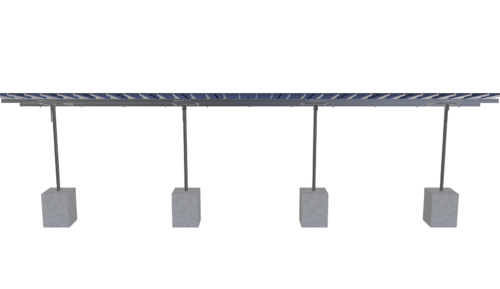

This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-22.5-10TOP-XD-45-L-5Hx16W-GH03 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 62 inches by 41.5 inches and an array layout of 16 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 5450.04 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-22.5-10TOP-XD-45-L-5HX16W-GH03

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

22.50

POLE HEIGHT

15.52

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

10.00

CANTILEVER

990.00

GROUND CLEARANCE

14.00

NO POLES

4.00

MODULE AREA

1470.00

ARRAY WIDTH

84.00

ARRAY HEIGHT

17.50

RAIL LENGTH

210.00

MODULE LENGTH

62.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

82.50

GROUND TO TOP

17.02

PROJECTED PANEL HEIGHT

3.00

PROJECT ID

SOLAR, HOTEL, -, CHICAGO

SITE ADDRESS

77, N, GILBERT, ST, DANVILLE, IL, 61832, USA

MODULE WIDTH

41.50

NUMBER ROWS

5.00

NUMBER COLUMNS

16.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

27292.41

TOTAL WEIGHT

5450.04

TOTAL PALLETS

4.00
