This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.8 inches by 44.7 inches and an array layout of 12 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Solen Energy GH
$19,890.91
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.8 inches by 44.7 inches and an array layout of 12 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3581.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

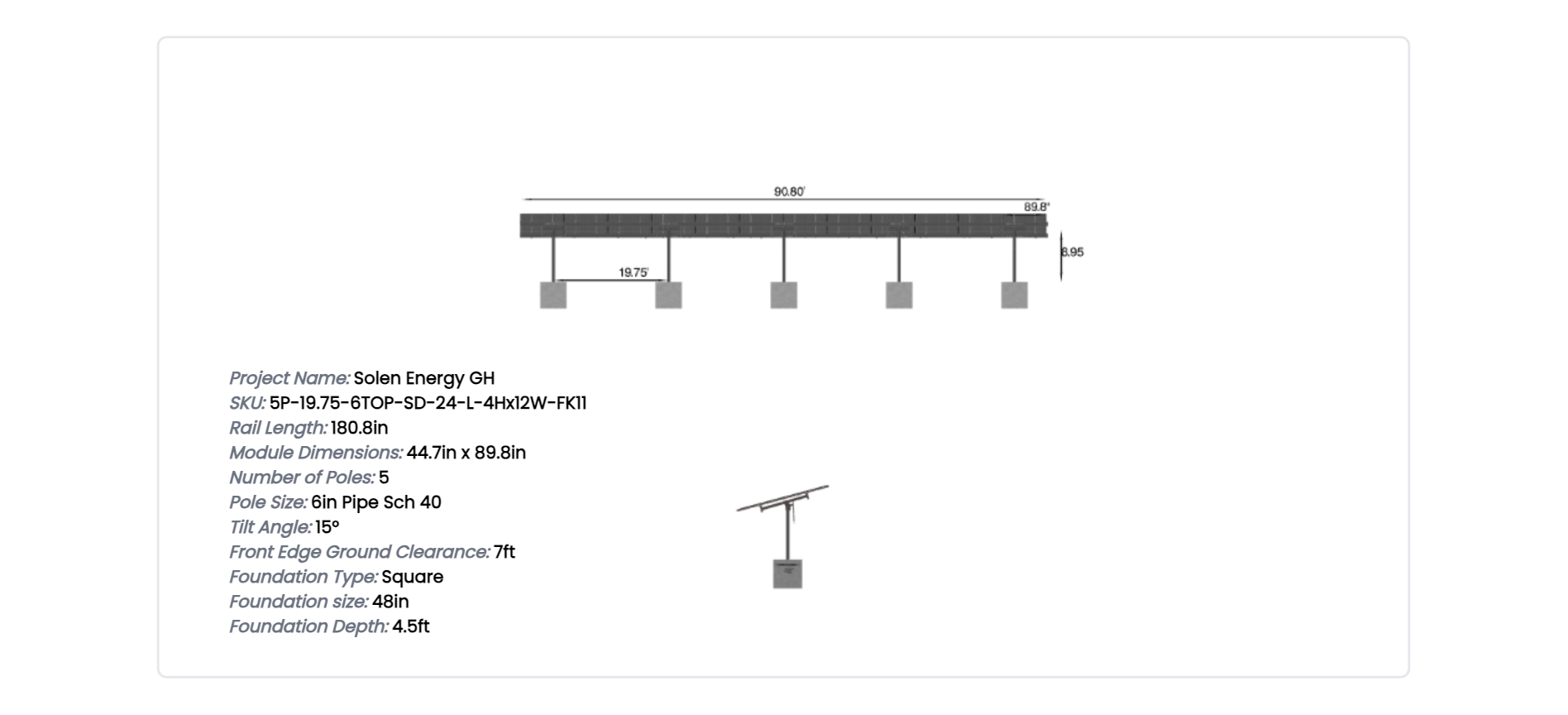

| SKU CODE | 5P-19.75-6TOP-SD-24-L-4HX12W-FK11 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.95 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1368.05 |
| ARRAY WIDTH | 90.80 |
| ARRAY HEIGHT | 15.07 |
| RAIL LENGTH | 180.80 |
| MODULE LENGTH | 89.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 10.90 |
| PROJECTED PANEL HEIGHT | 3.90 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | RALF |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4153228125.00 |
| PROJECT ID | SOLEN, ENERGY, GH |
| SITE ADDRESS | 575, BOULDER, CT, PLEASANTON, CA, 94566, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19890.91 |
| TOTAL WEIGHT | 3581.64 |
| TOTAL PALLETS | 5.00 |
