This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in%20Pipe%20Sch%2080 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

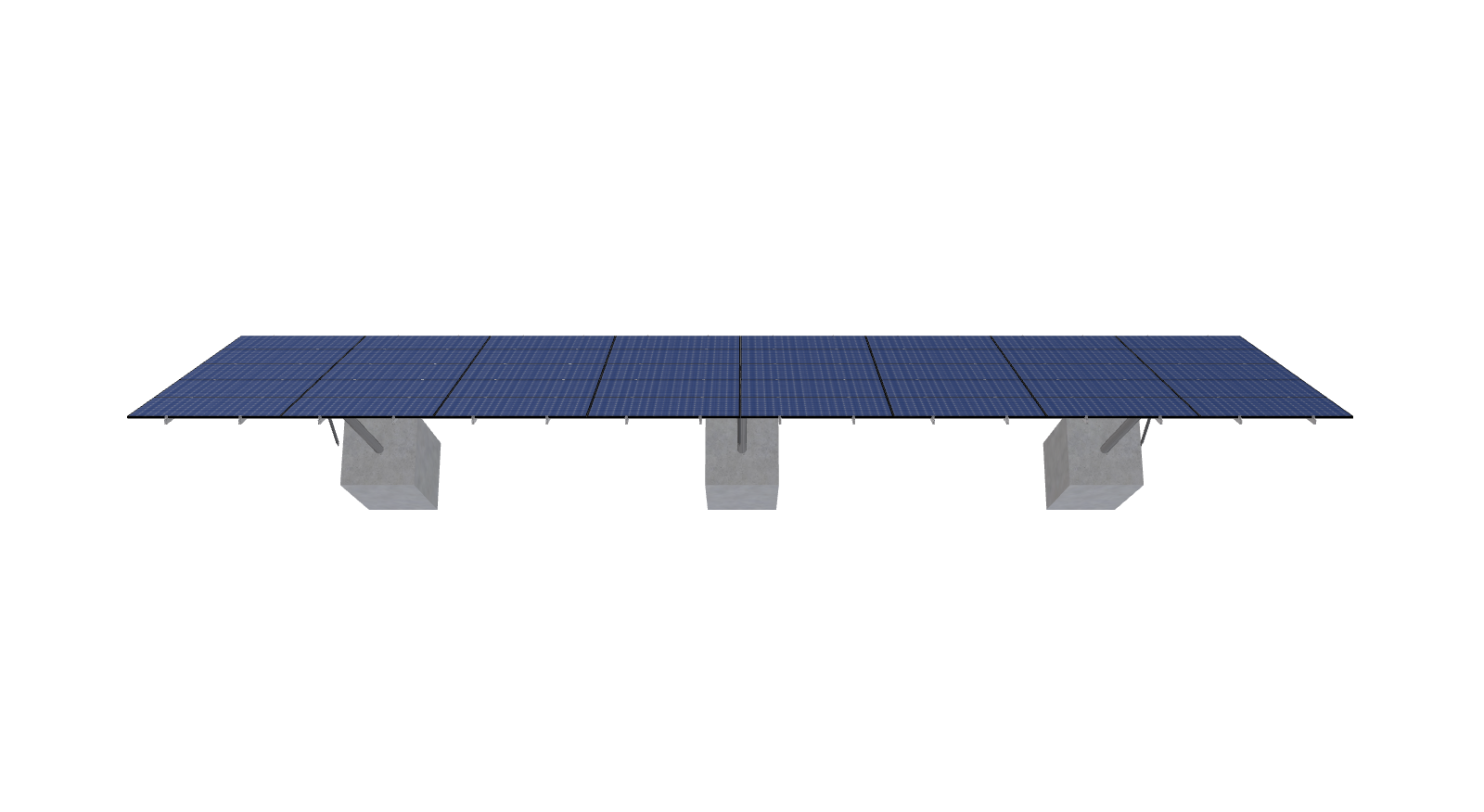

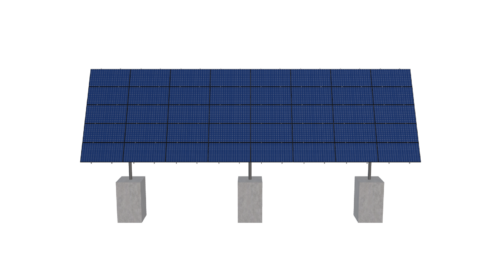

See 3D Model Here
South Pack Solar – 5×8 – 90×45 – V1Jb
$16,694.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in%20Pipe%20Sch%2080 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3217.17 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-45-L-5HX8W-5863 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |

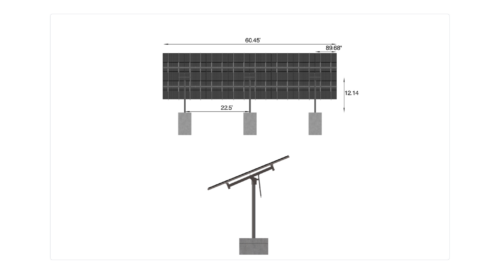

| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.14 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.75 |

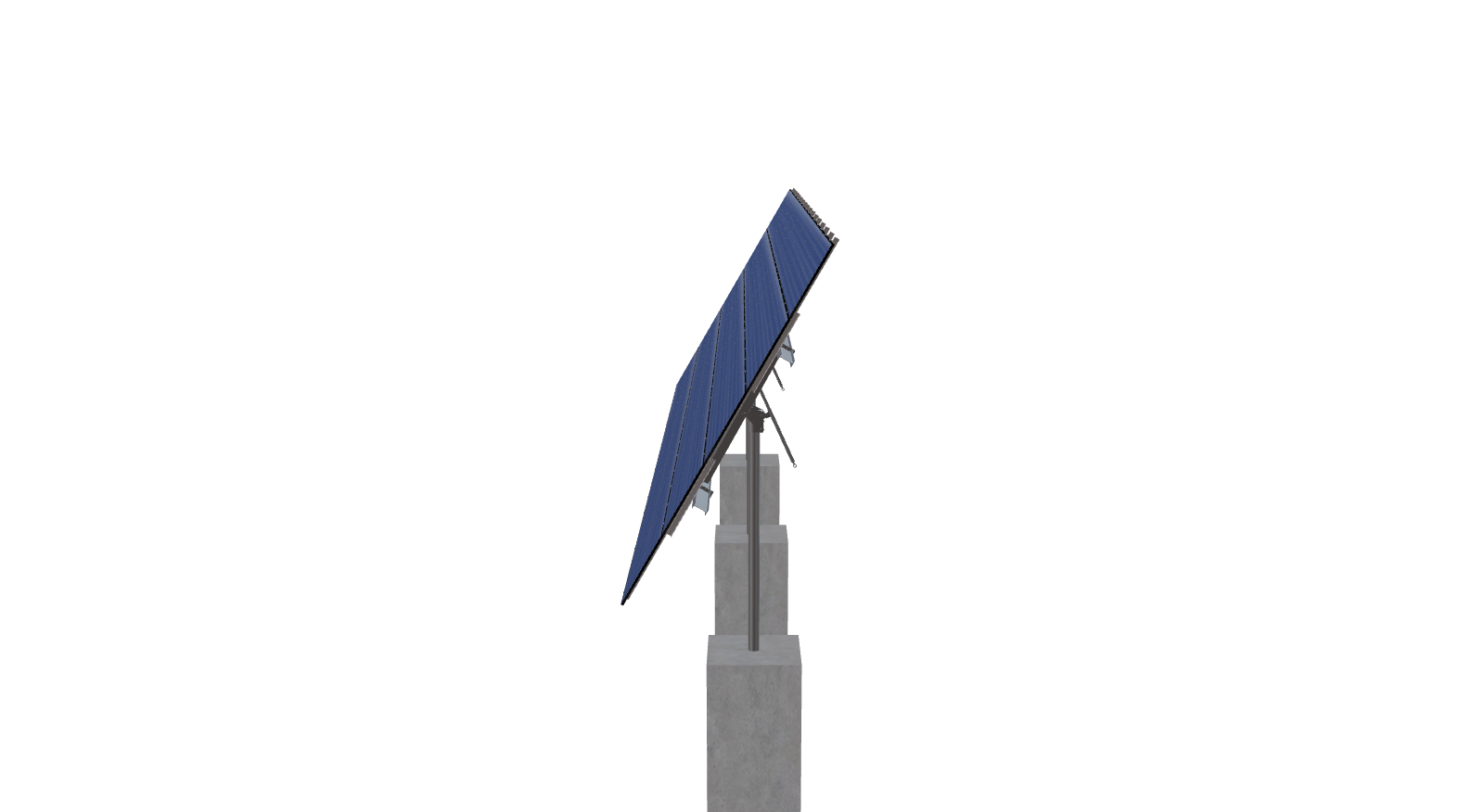

| TILT ANGLE | 60.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1137.03 |
| ARRAY WIDTH | 60.45 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.70 |
| MODULE LENGTH | 89.68 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 20.29 |
| PROJECTED PANEL HEIGHT | 16.29 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | SOUTH, PACK, SOLAR, -, 5X8, -, 90X45, -, V1JB |
| SITE ADDRESS | ANTRIM, NH, 03440, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 103.00 |
| SNOW LOAD OVERRIDE | 88.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15899.27 |
| TOTAL WEIGHT | 3217.17 |
| TOTAL PALLETS | 3.00 |
https%3A%2F%2Fskycivquotes.s3.amazonaws.com%2Fde0c498e-488d-4d5a-a164-dfcbd801ca5c.pdf |
|
| ID | 9404.00 |
| 3D Solar link |
