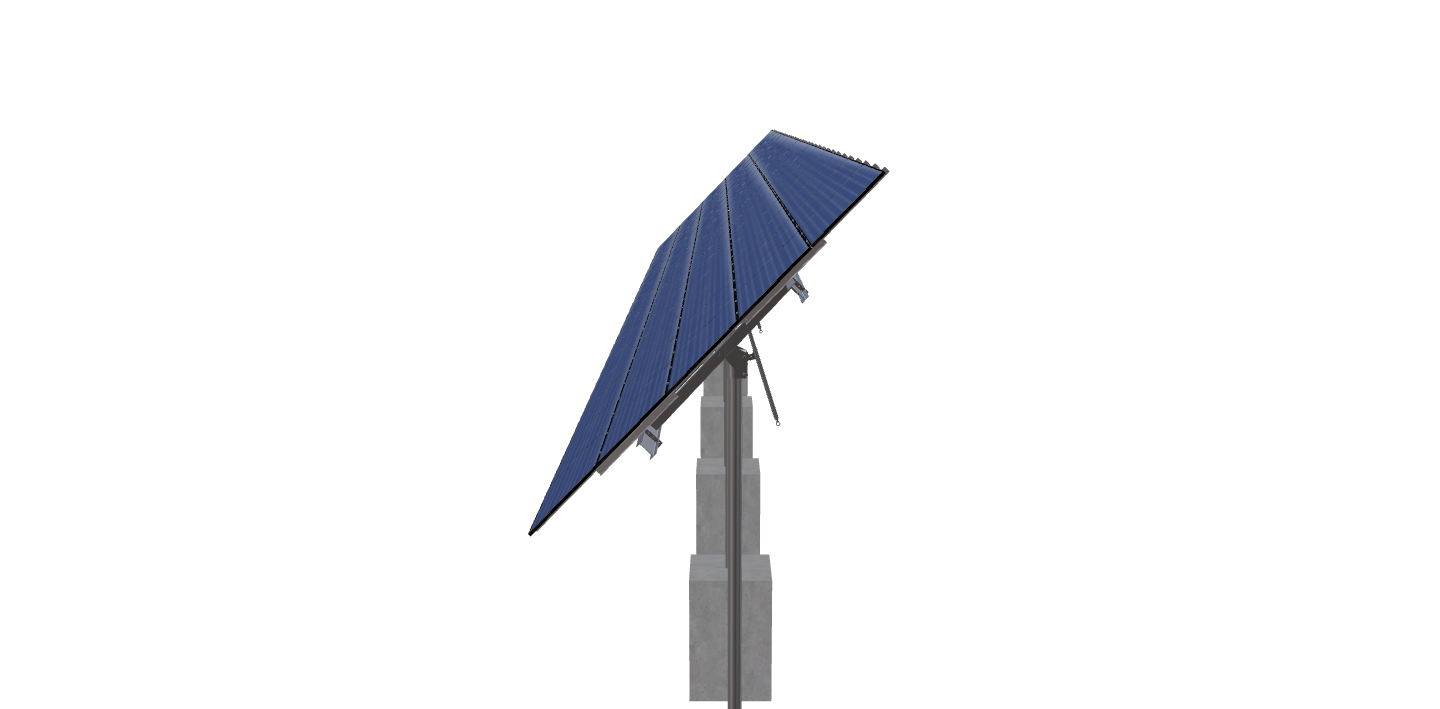

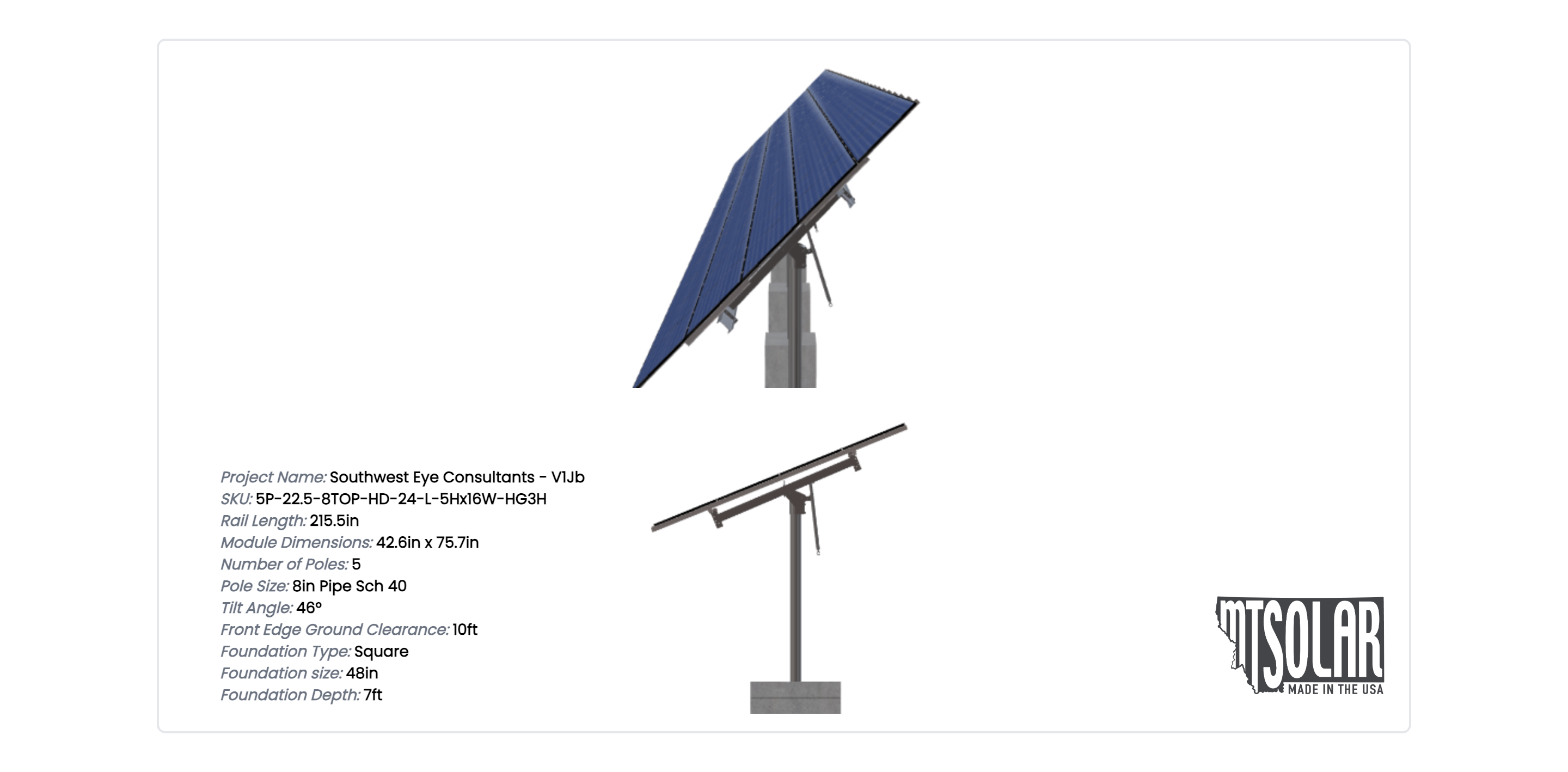

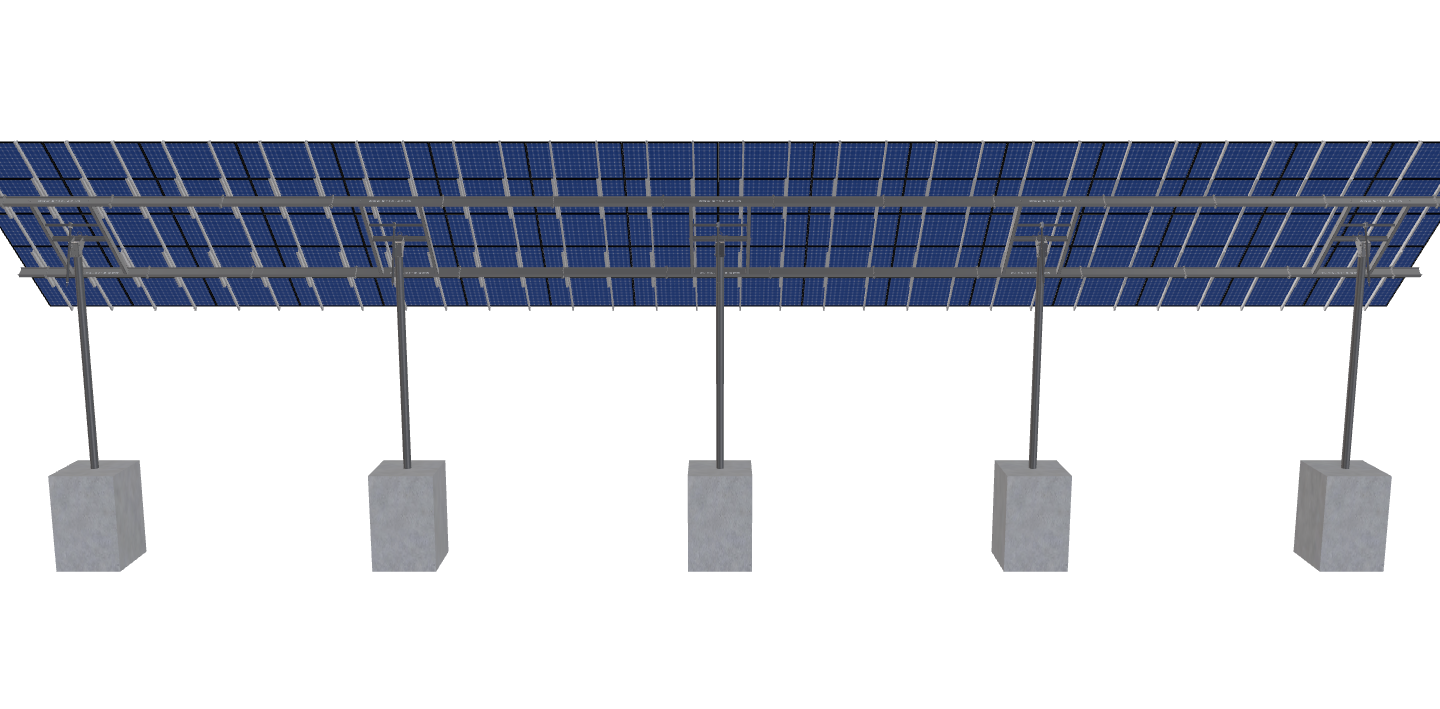

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 42.6 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Southwest Eye Consultants – V1Jb
$28,597.97
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 42.6 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 5681.67 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 5P-22.5-8TOP-HD-24-L-5HX16W-HG3H |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 5.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 16.46 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 7.00 |
TILT ANGLE | 46.00 |
CANTILEVER | 1218.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 5.00 |
MODULE AREA | 1836.54 |
ARRAY WIDTH | 102.27 |
ARRAY HEIGHT | 17.96 |
RAIL LENGTH | 215.50 |
MODULE LENGTH | 75.70 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 101.50 |
GROUND TO TOP | 22.84 |
PROJECTED PANEL HEIGHT | 12.77 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
DESIGNER NAME | |
DESIGNER EMAIL | |
DESIGNER PHONE | |
PROJECT ID | SOUTHWEST, EYE, CONSULTANTS, -, V1JB |
SITE ADDRESS | 1266, ESCALANTE, DR, DURANGO, CO, 81303, USA |
MODULE WIDTH | 42.60 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 16.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 28597.97 |
TOTAL WEIGHT | 5681.67 |
TOTAL PALLETS | 5.00 |
