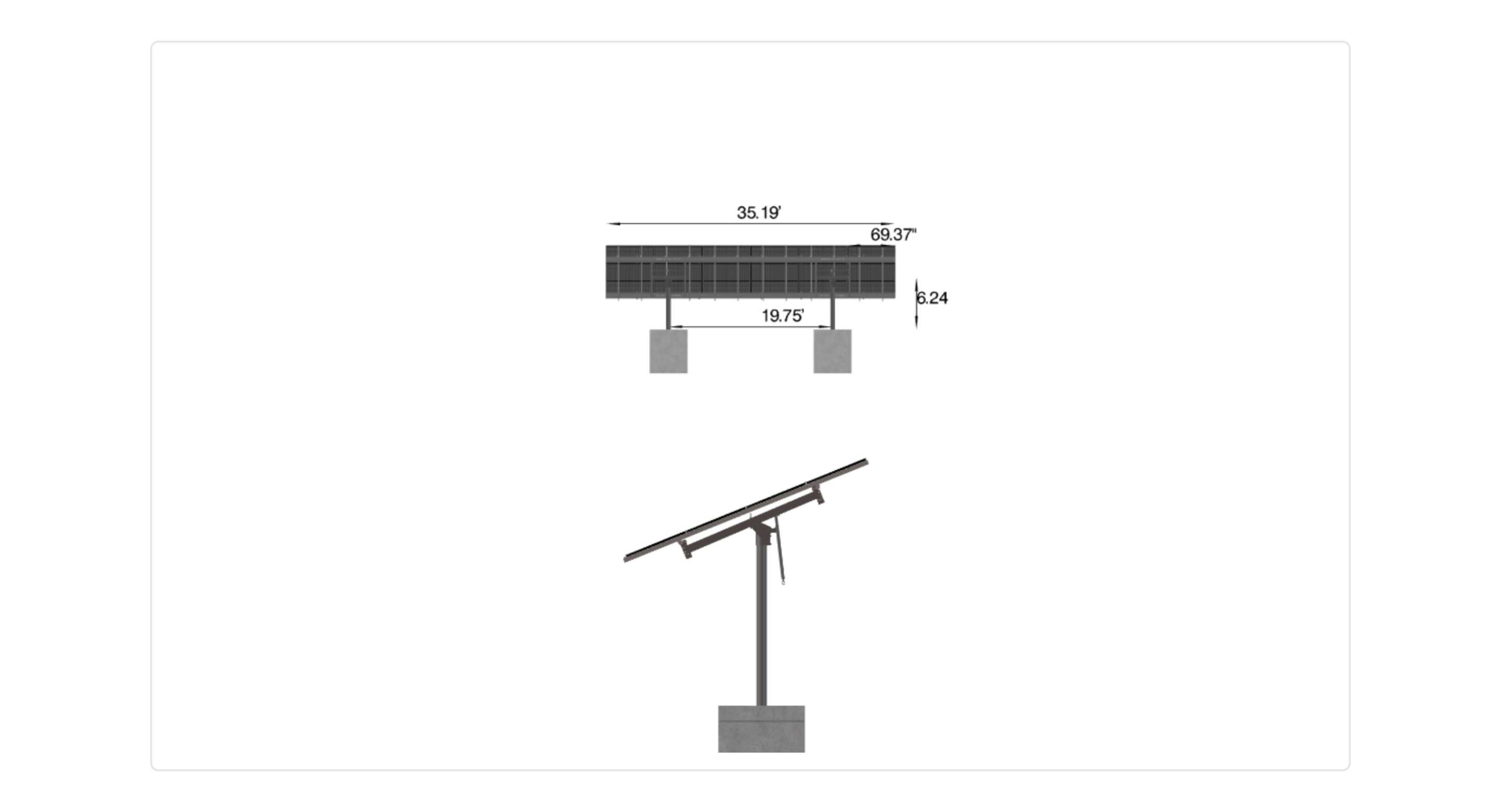

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 44.65 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

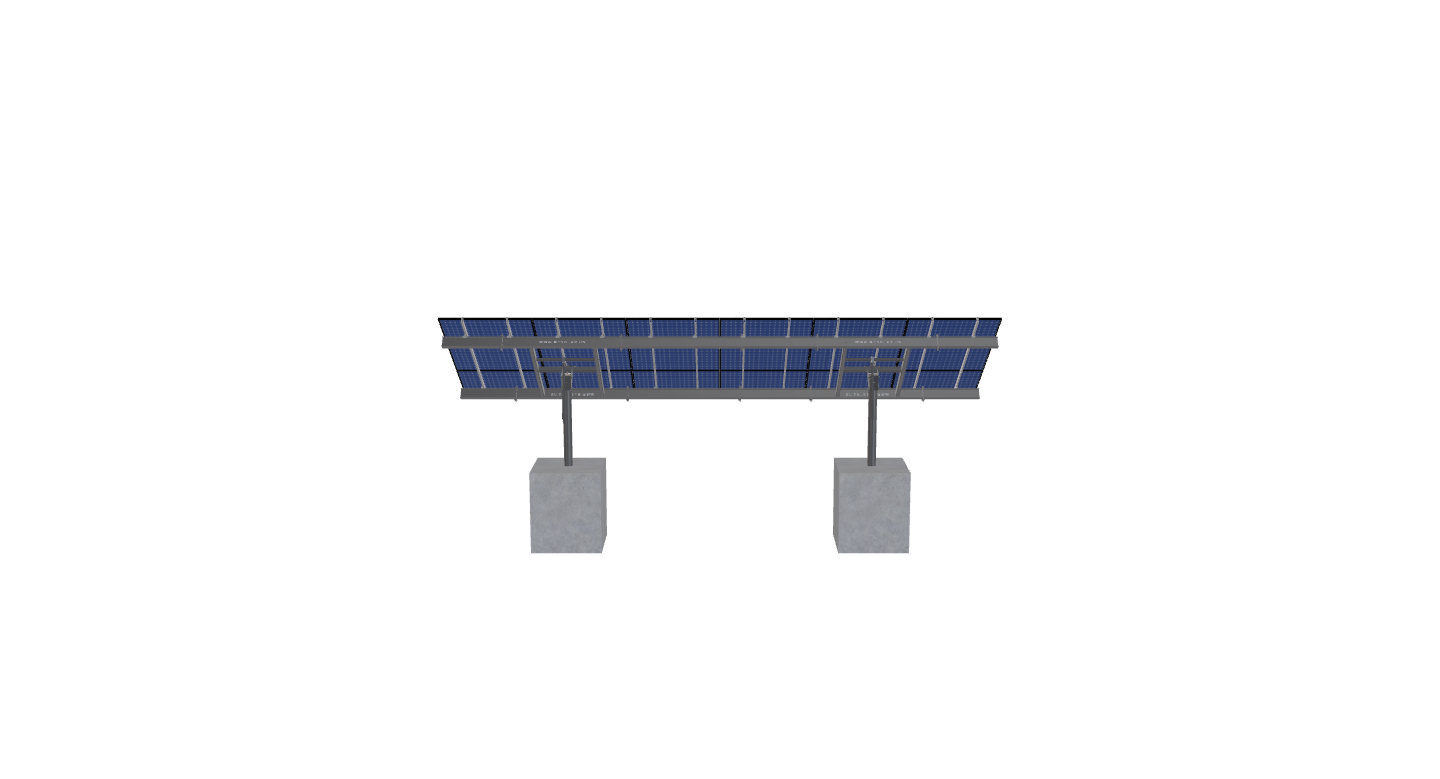

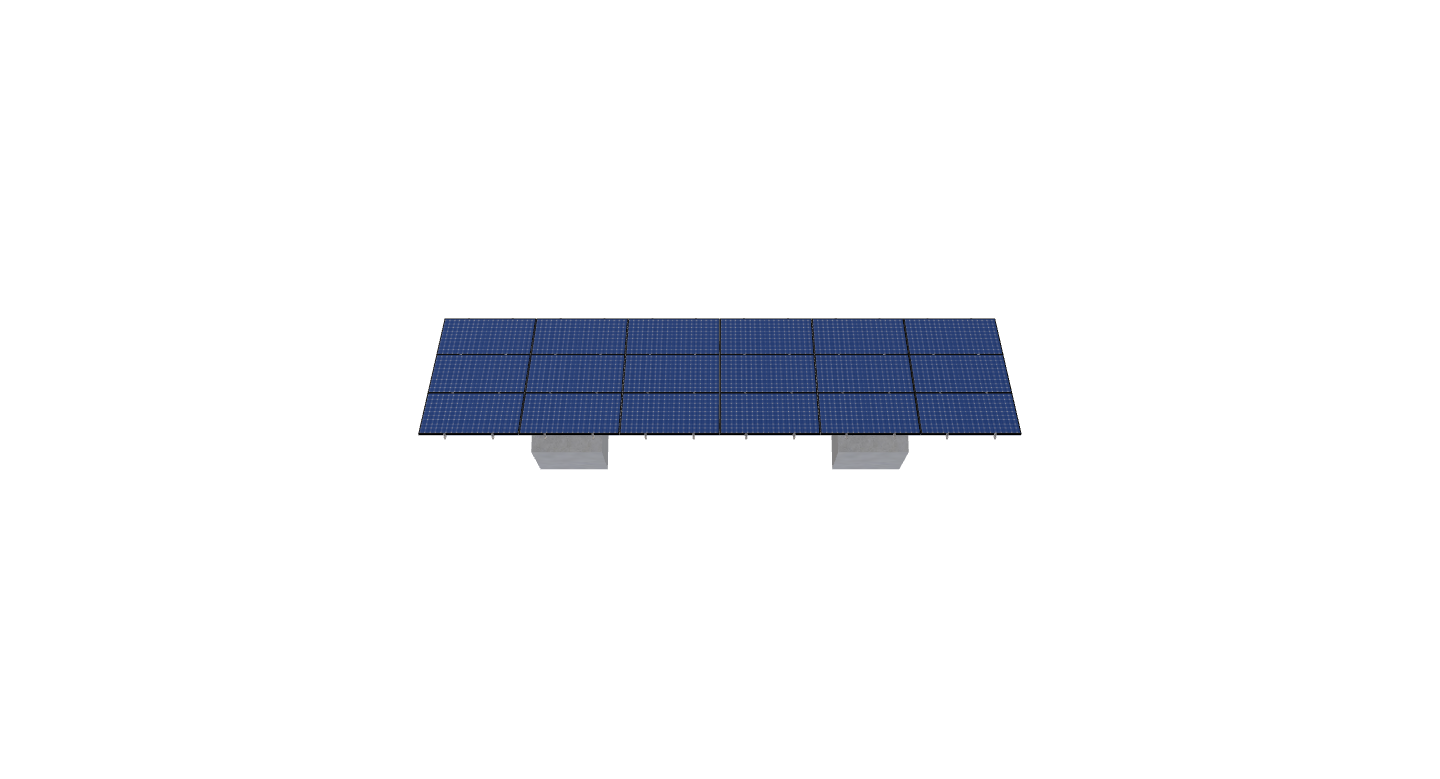

See 3D Model Here
Spinale – RevA – Jb
$8,902.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 44.65 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1638.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-HD-45-L-3HX6W-4193 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 6.24 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 397.15 |
| ARRAY WIDTH | 35.19 |
| ARRAY HEIGHT | 11.29 |
| RAIL LENGTH | 135.45 |
| MODULE LENGTH | 69.37 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 9.44 |
| PROJECTED PANEL HEIGHT | 6.40 |
| PROJECT ID | SPINALE, -, REVA, -, JB |
| SITE ADDRESS | HANCOCK, NH, 03449, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| POLE SPACING OVERRIDE | 19.75 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 103.00 |
| SNOW LOAD OVERRIDE | 88.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8902.90 |
| TOTAL WEIGHT | 1638.72 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b7f66a6b-5677-4359-a3da-0ddcbe676353.pdf |
|
| ID | 6290.00 |
| 3D Solar link |
