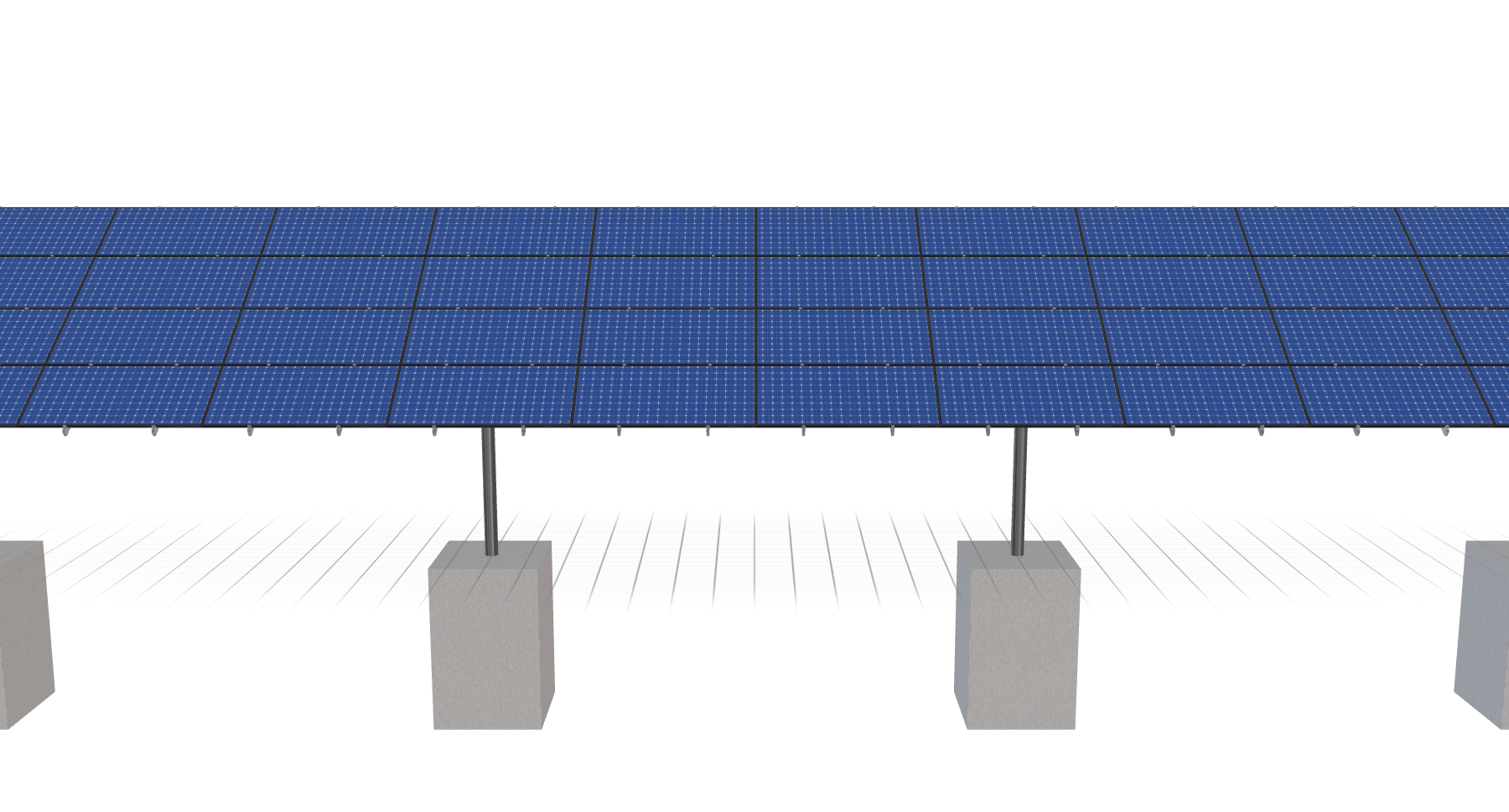

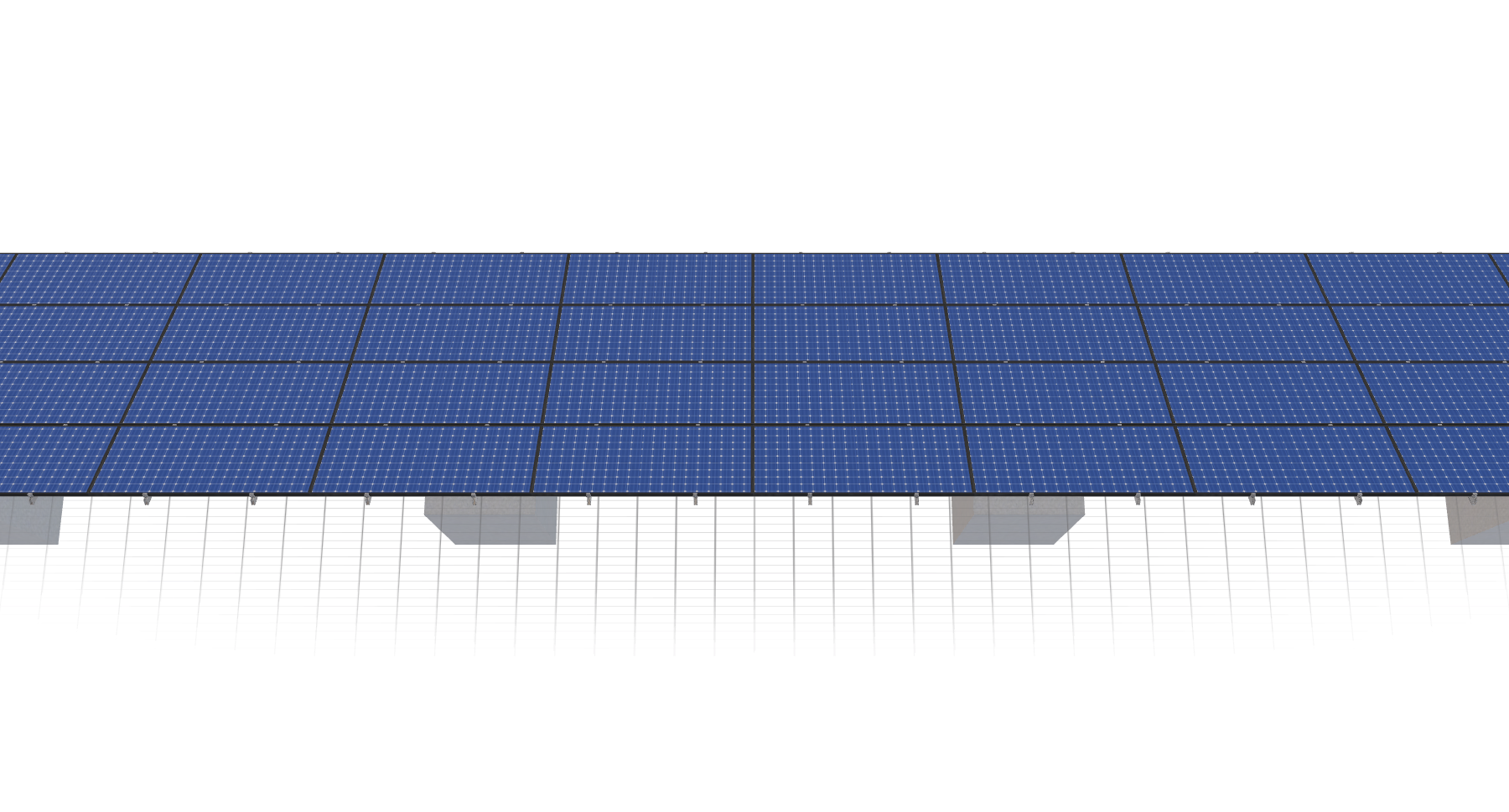

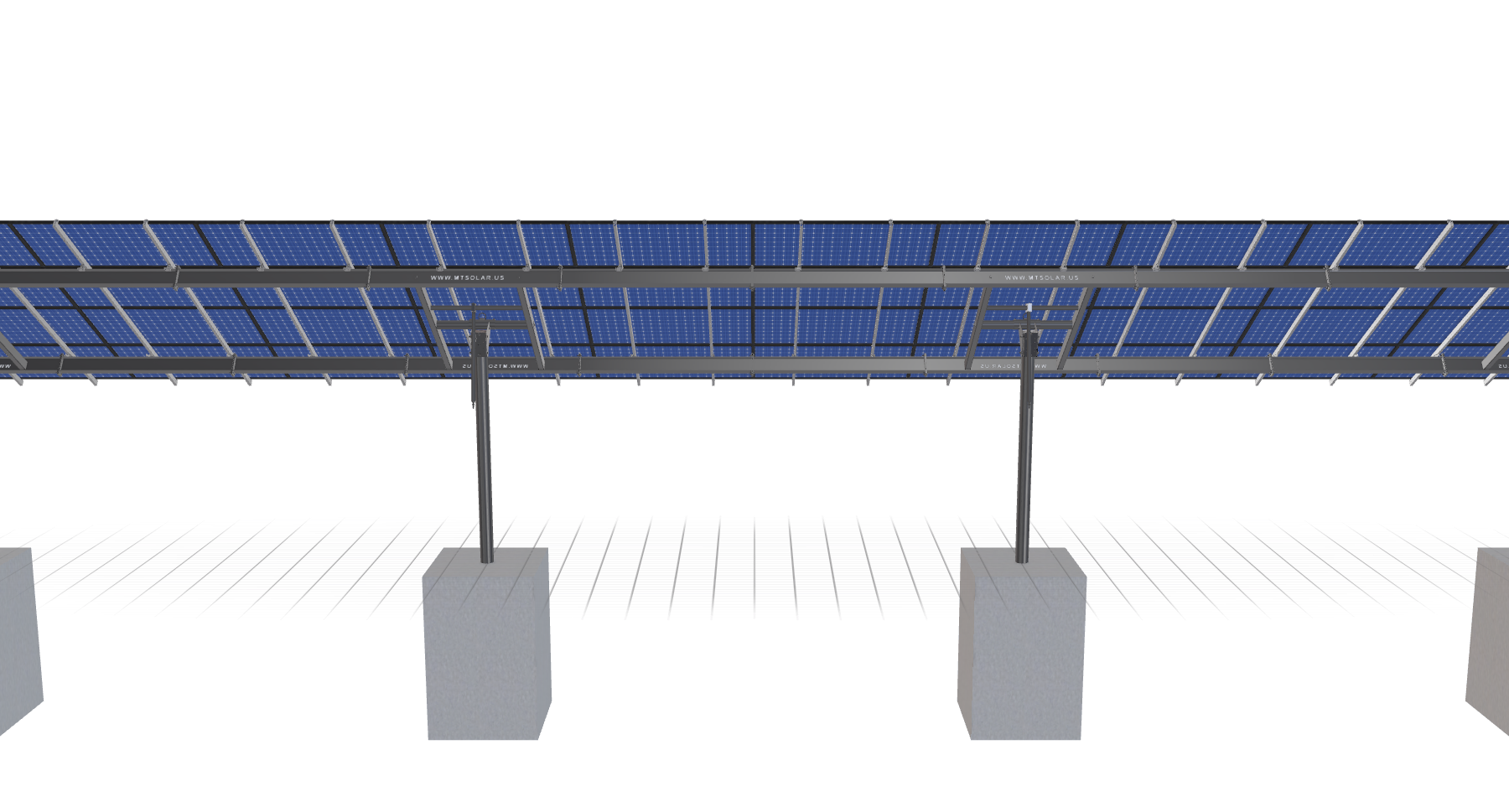

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Springer test 2
$22,430.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4261.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-XD-57-L-4HX12W-BEG3 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.97 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1175.83 |
| ARRAY WIDTH | 85.00 |
| ARRAY HEIGHT | 13.83 |
| RAIL LENGTH | 166.00 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 13.89 |
| PROJECTED PANEL HEIGHT | 7.84 |
| PROJECT ID | SPRINGER, TEST, 2 |
| SITE ADDRESS | 26486, 520TH, AVE, HENNING, MN, 56551, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 103.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 22430.48 |
| TOTAL WEIGHT | 4261.64 |
| TOTAL PALLETS | 4.00 |
