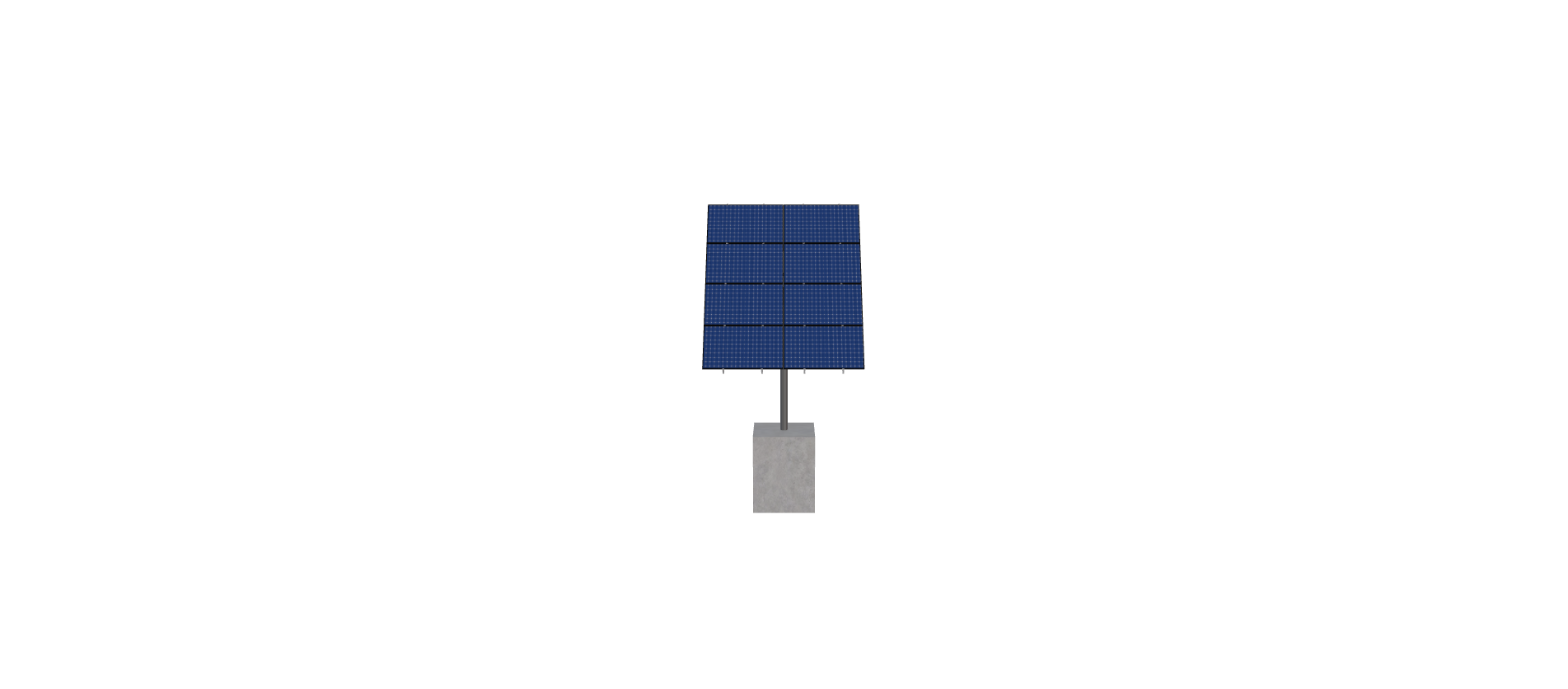

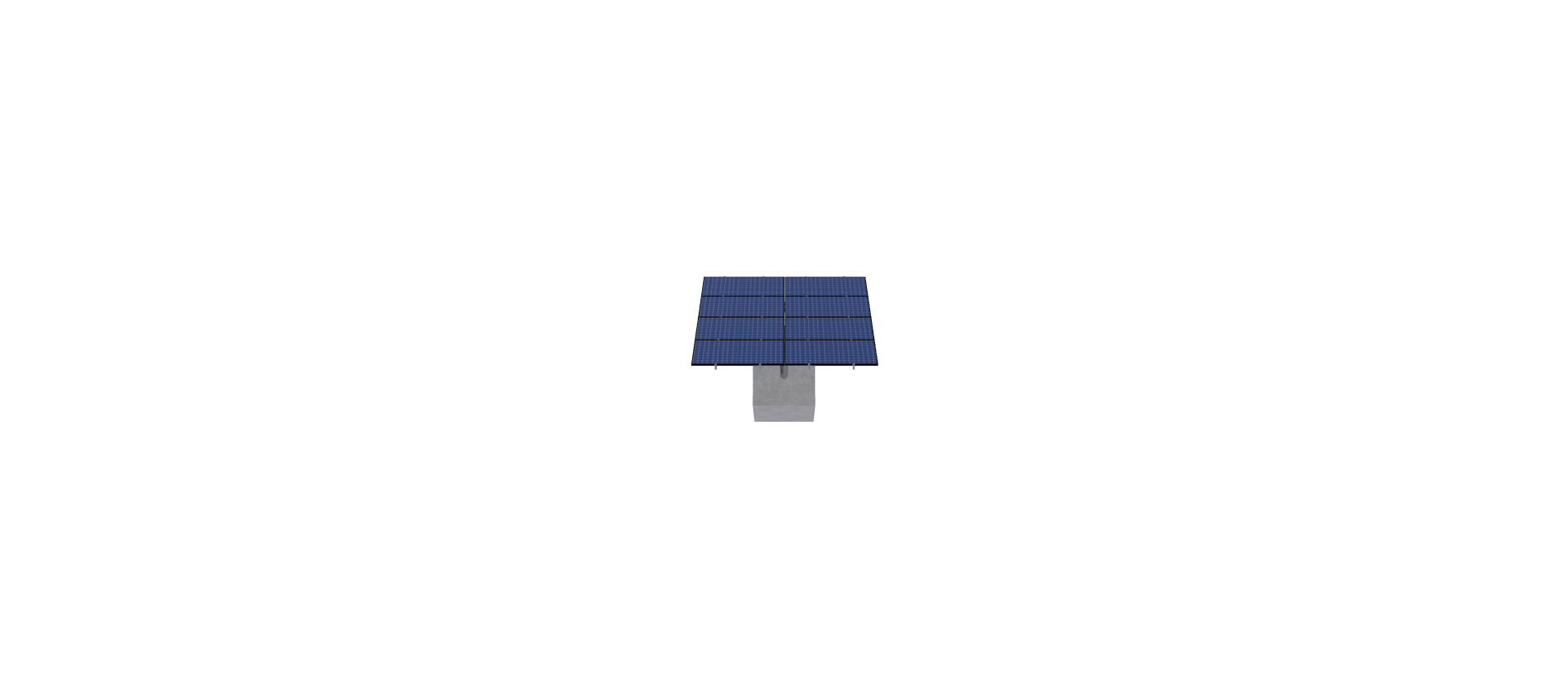

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 42.7 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
STOLOFF RESIDENCE
$3,169.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 42.7 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

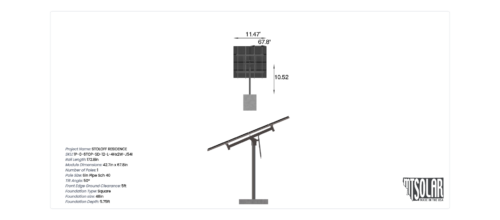

| Weight | 527.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-4HX2W-J54I |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.52 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 165.12 |
| ARRAY WIDTH | 11.47 |
| ARRAY HEIGHT | 14.40 |
| RAIL LENGTH | 172.80 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 16.03 |
| PROJECTED PANEL HEIGHT | 11.03 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | NICHOLAS, PONZIO |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 82-859-3384 |
| PROJECT ID | STOLOFF, RESIDENCE |
| SITE ADDRESS | BETHEL, VT, USA |
| MODULE WIDTH | 42.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3169.90 |
| TOTAL WEIGHT | 527.44 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/841373a3-a83b-4e42-9d4e-53b3a9e56fb4.pdf |
|
| ID | 8094.00 |
| 3D Solar link |
