This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.04 inches by 48.5 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

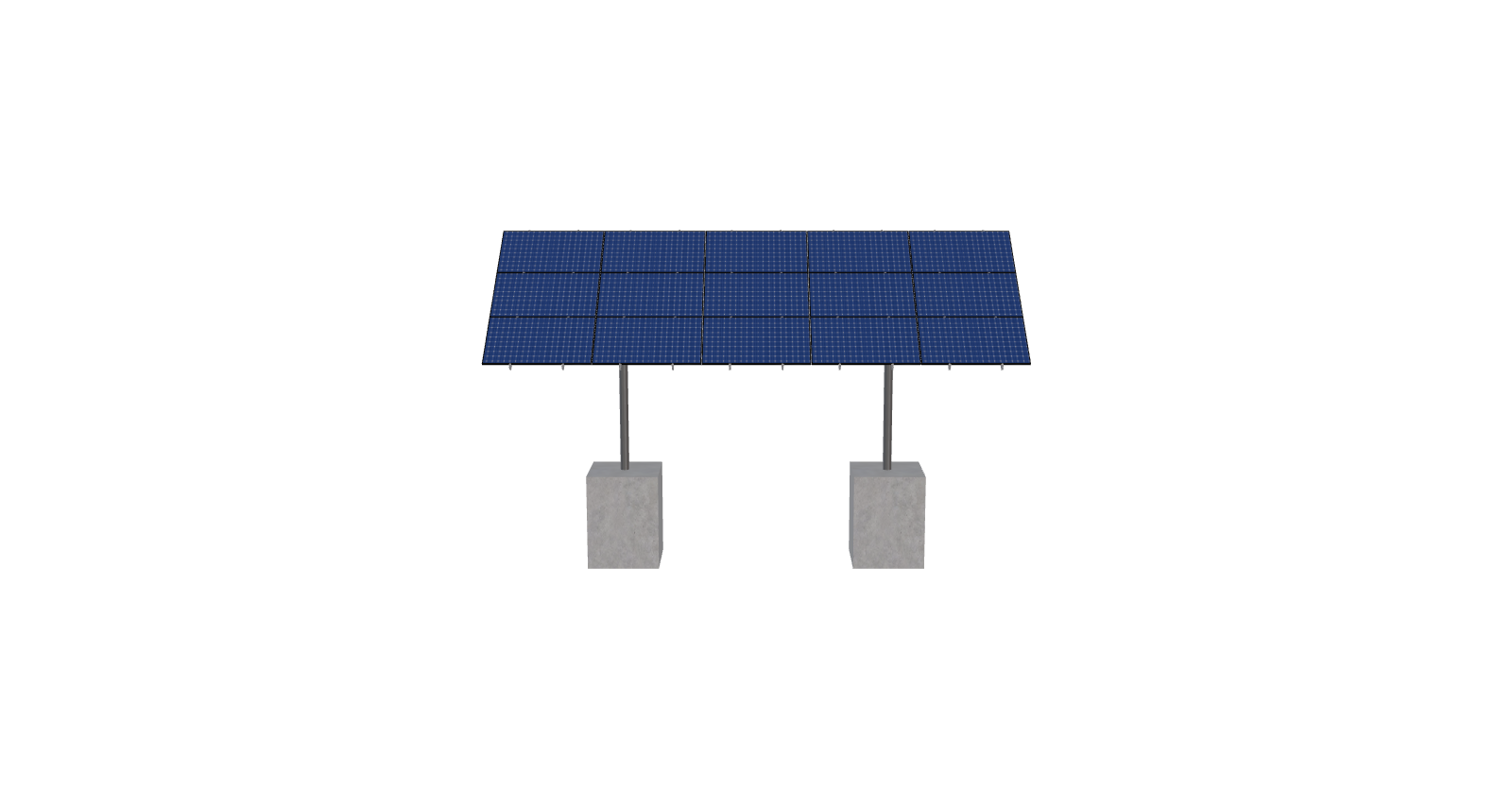

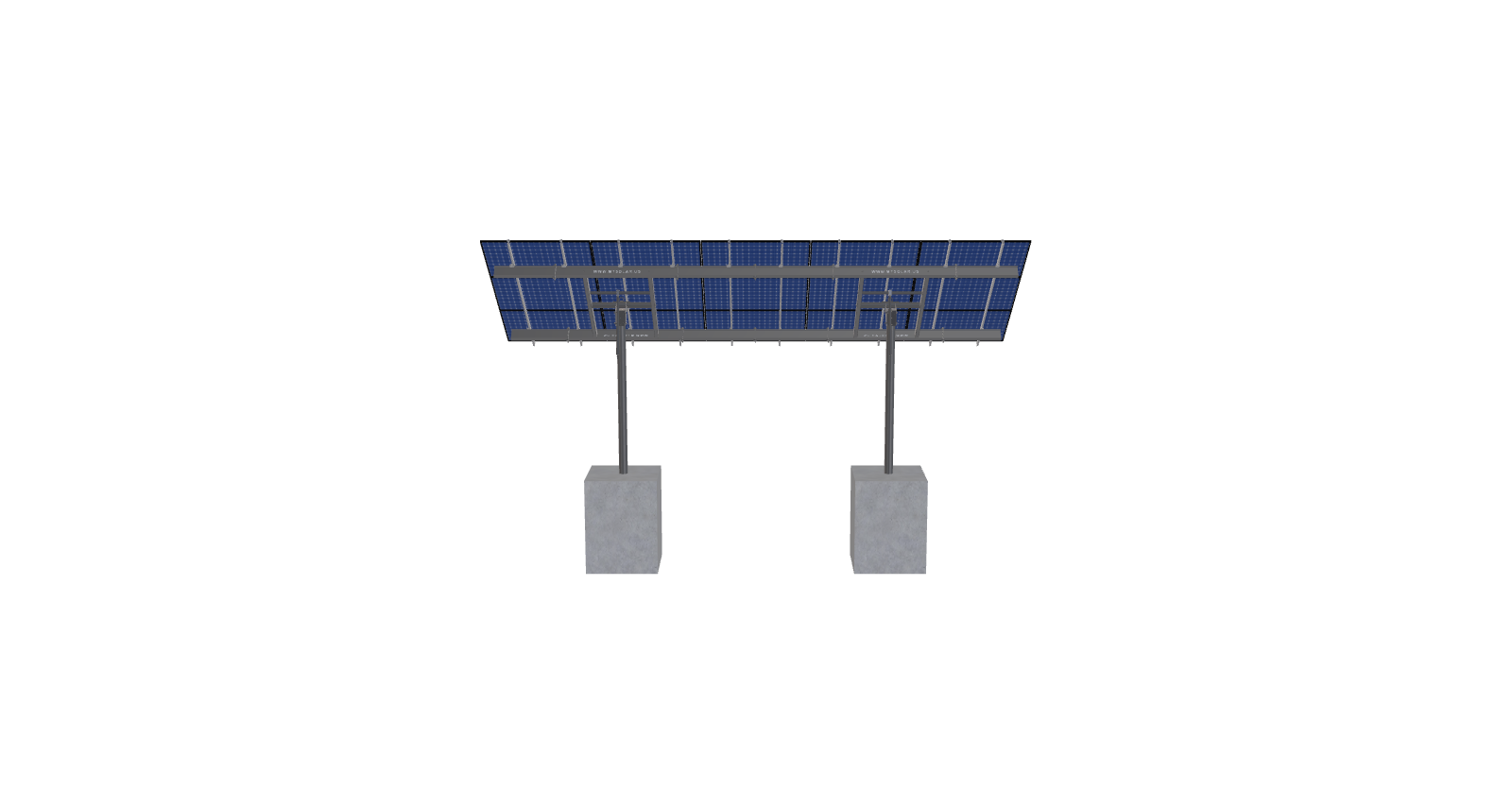

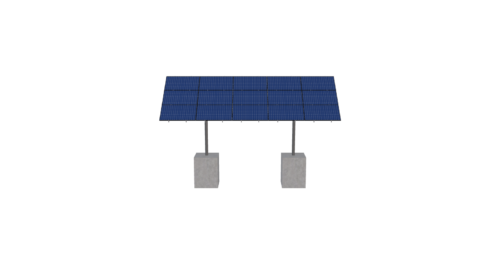

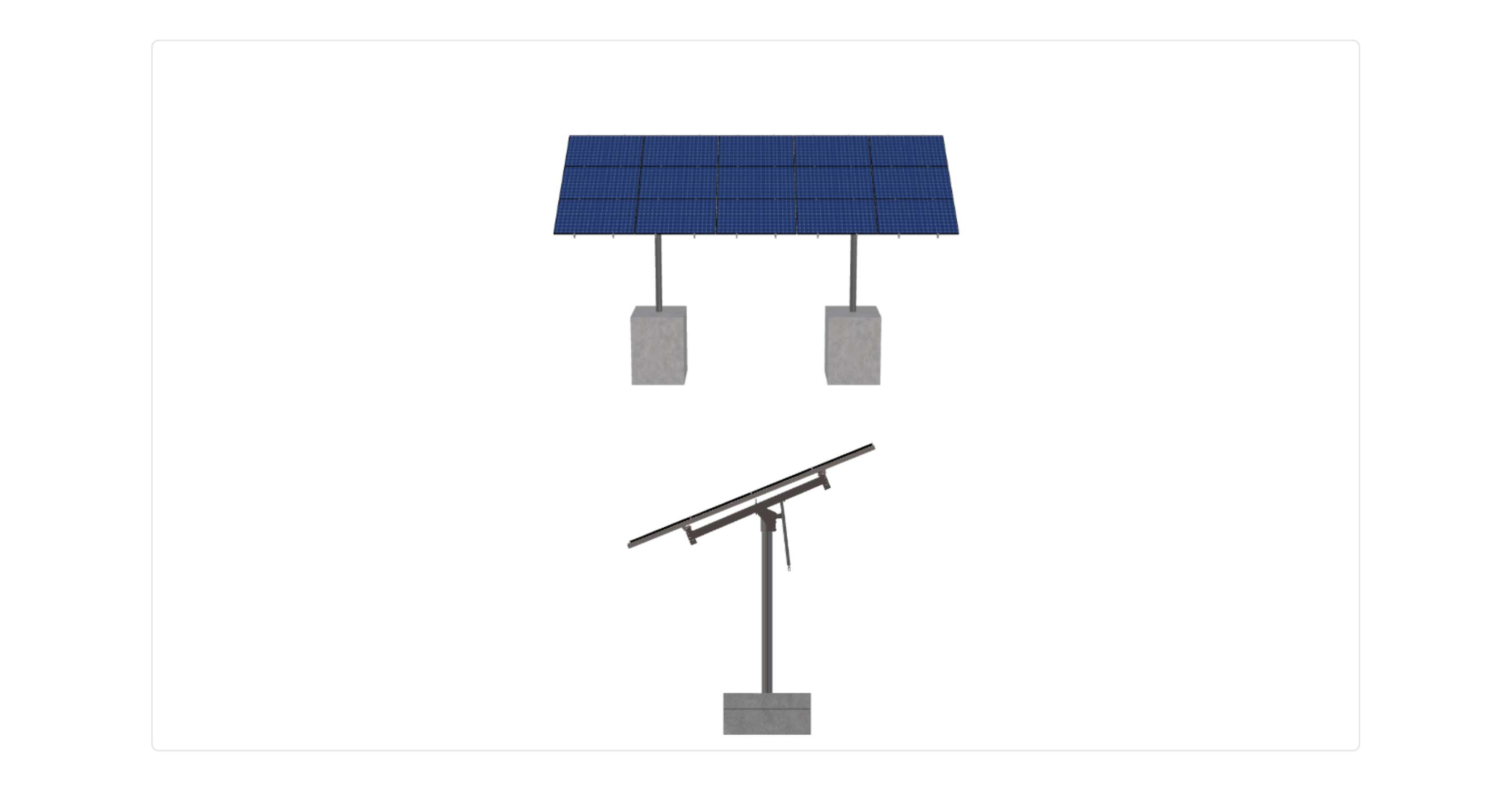

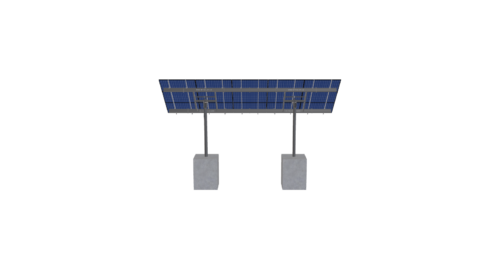

See 3D Model Here
Synergia Ranch – series6-38 deg CU
$7,763.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.04 inches by 48.5 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1313.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-45-L-3HX5W-IKJC |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.77 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 38.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 408.54 |
| ARRAY WIDTH | 33.35 |
| ARRAY HEIGHT | 12.25 |
| RAIL LENGTH | 147.00 |
| MODULE LENGTH | 79.04 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 14.50 |
| PROJECTED PANEL HEIGHT | 7.46 |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 24.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | SYNERGIA, RANCH, -, SERIES6-38, DEG, CU |
| SITE ADDRESS | 22, SYNERGIA, RD, SANTA, FE, NM, 87508, USA |
| MODULE WIDTH | 48.50 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 7393.88 |
| TOTAL WEIGHT | 1313.60 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d5127183-f50f-409f-9f8b-2becaf21f26e.pdf |
|
| ID | 7850.00 |
| 3D Solar link |
