Tavoli Apartments-cuV2

$17,630.96

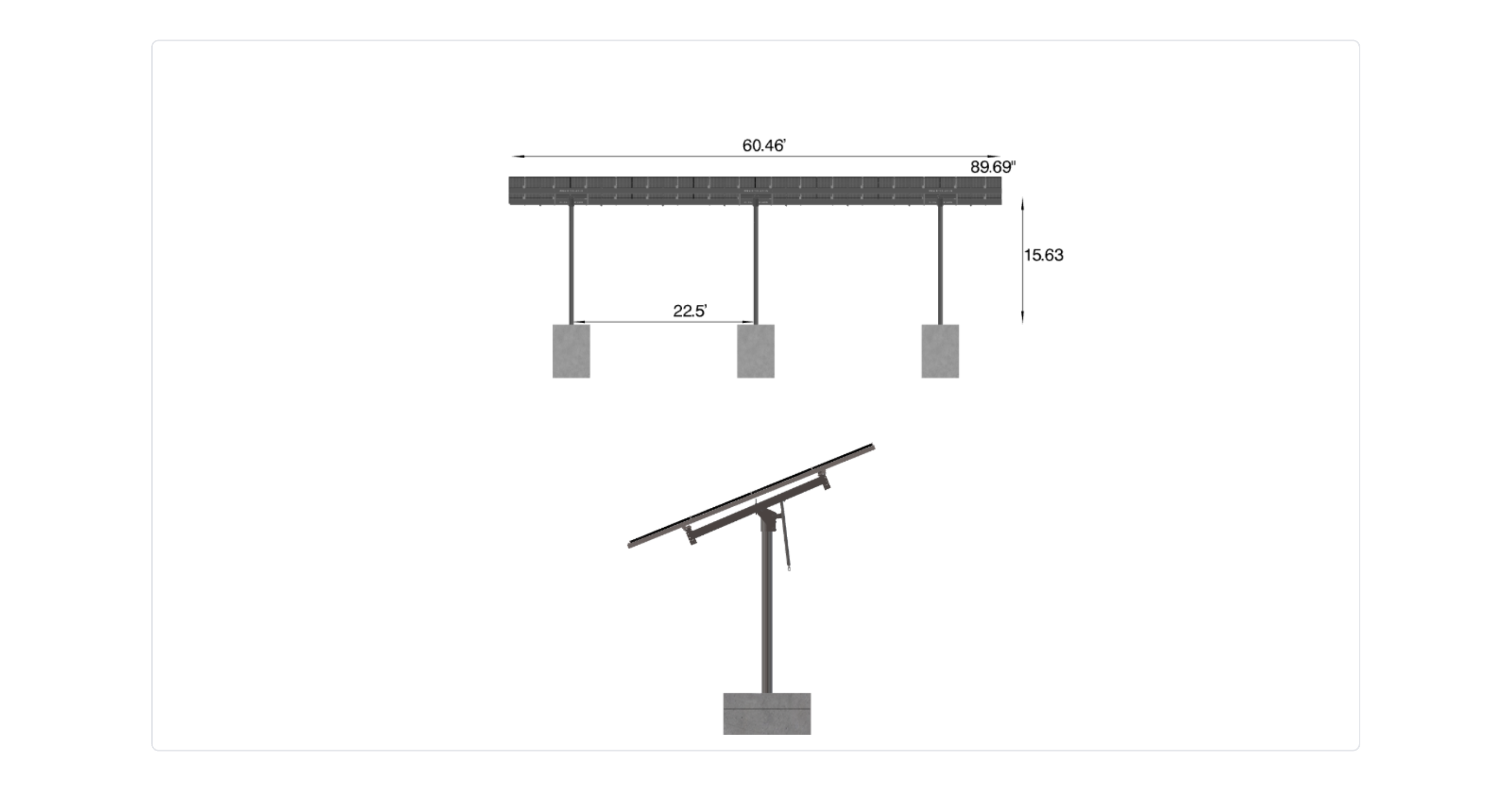

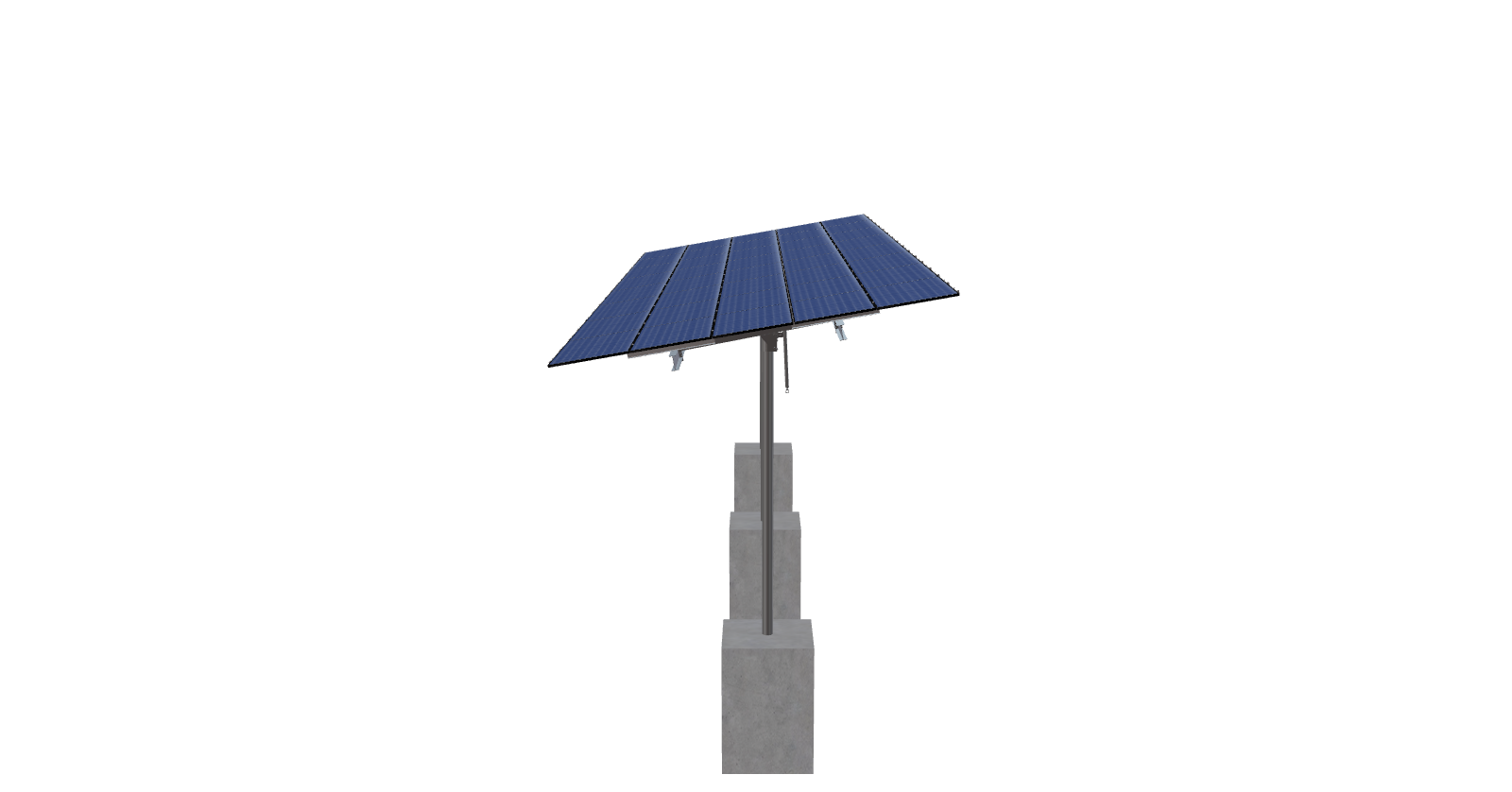

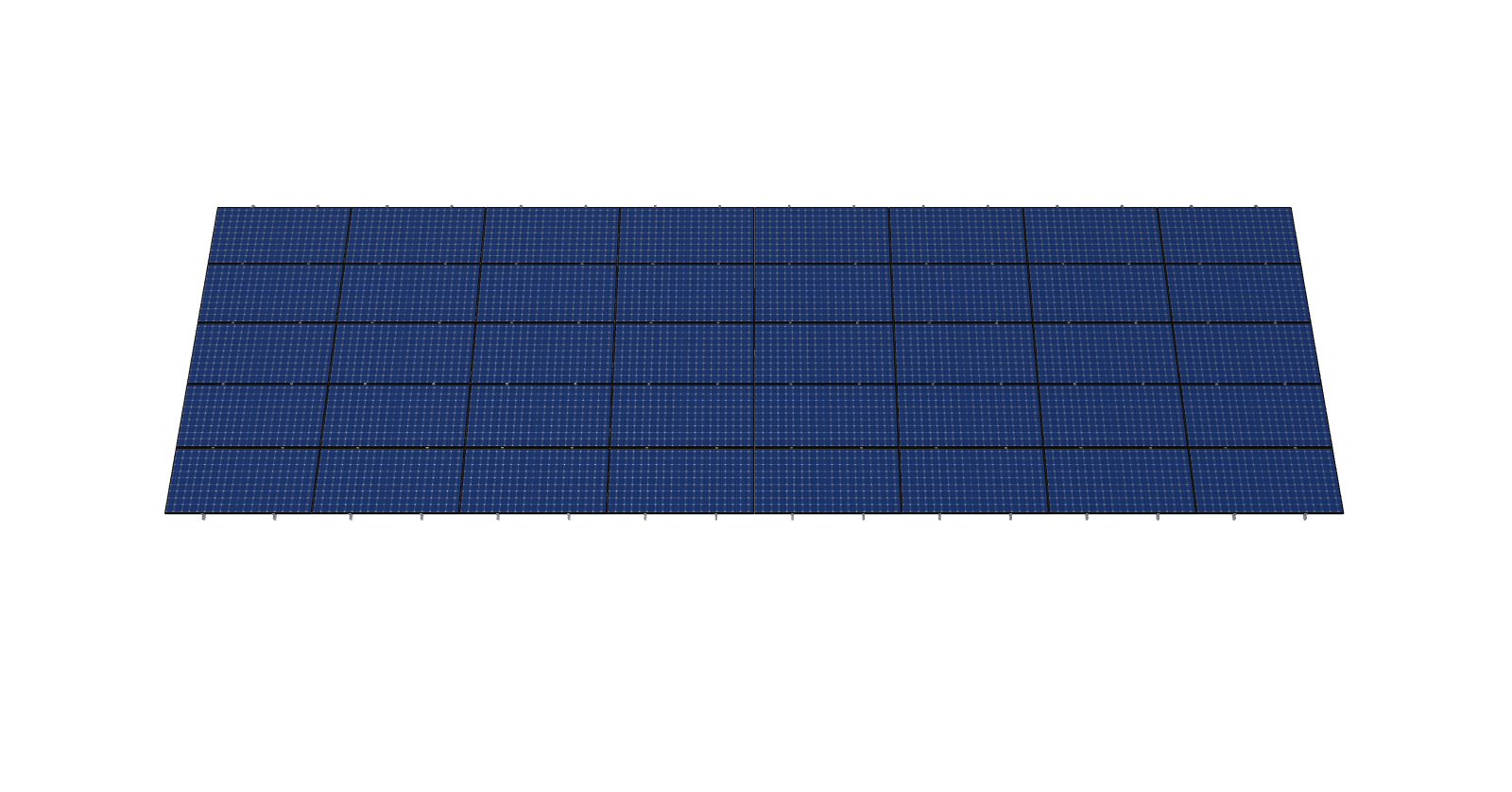

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 8 wide by 5 high.

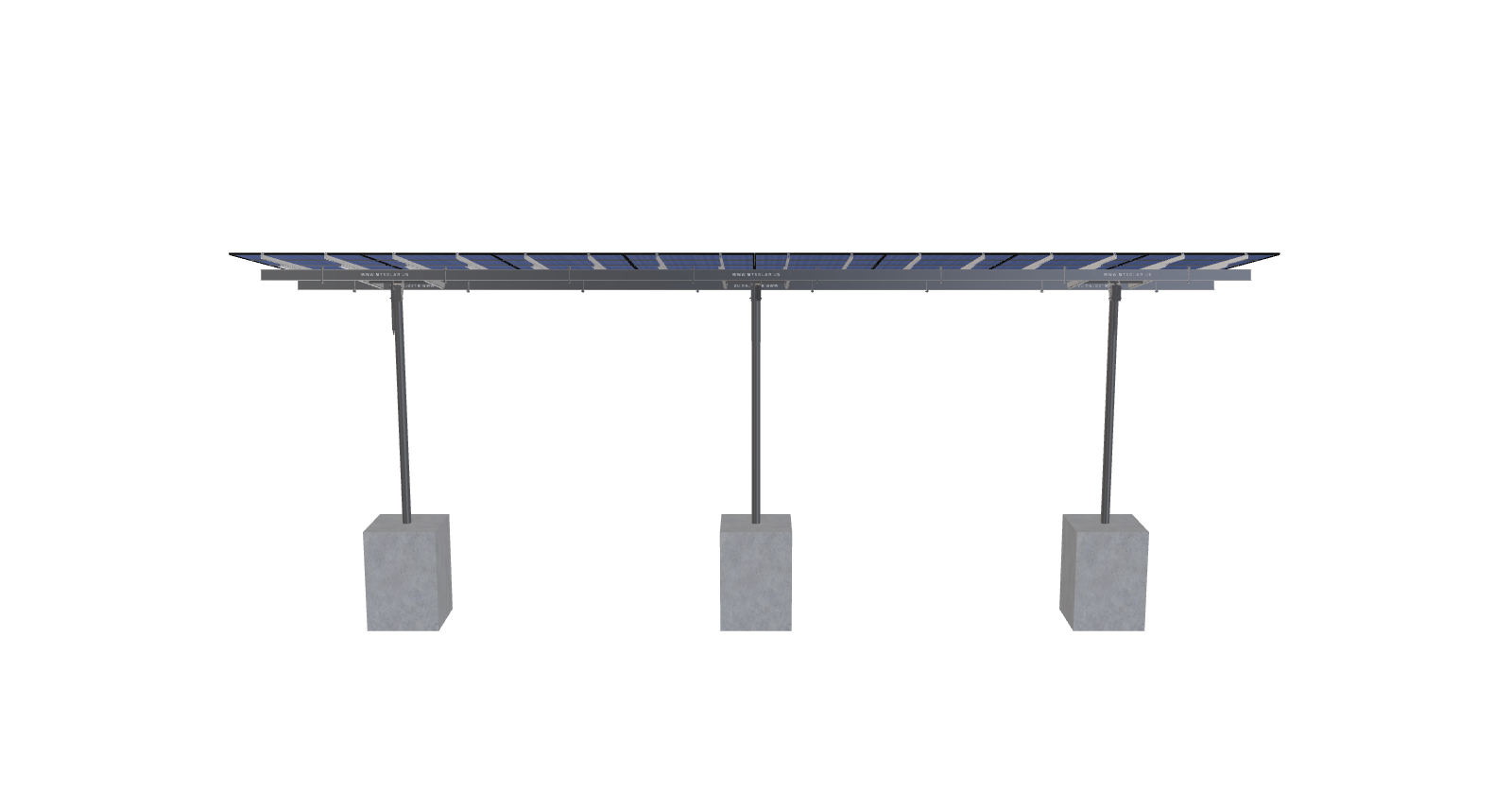

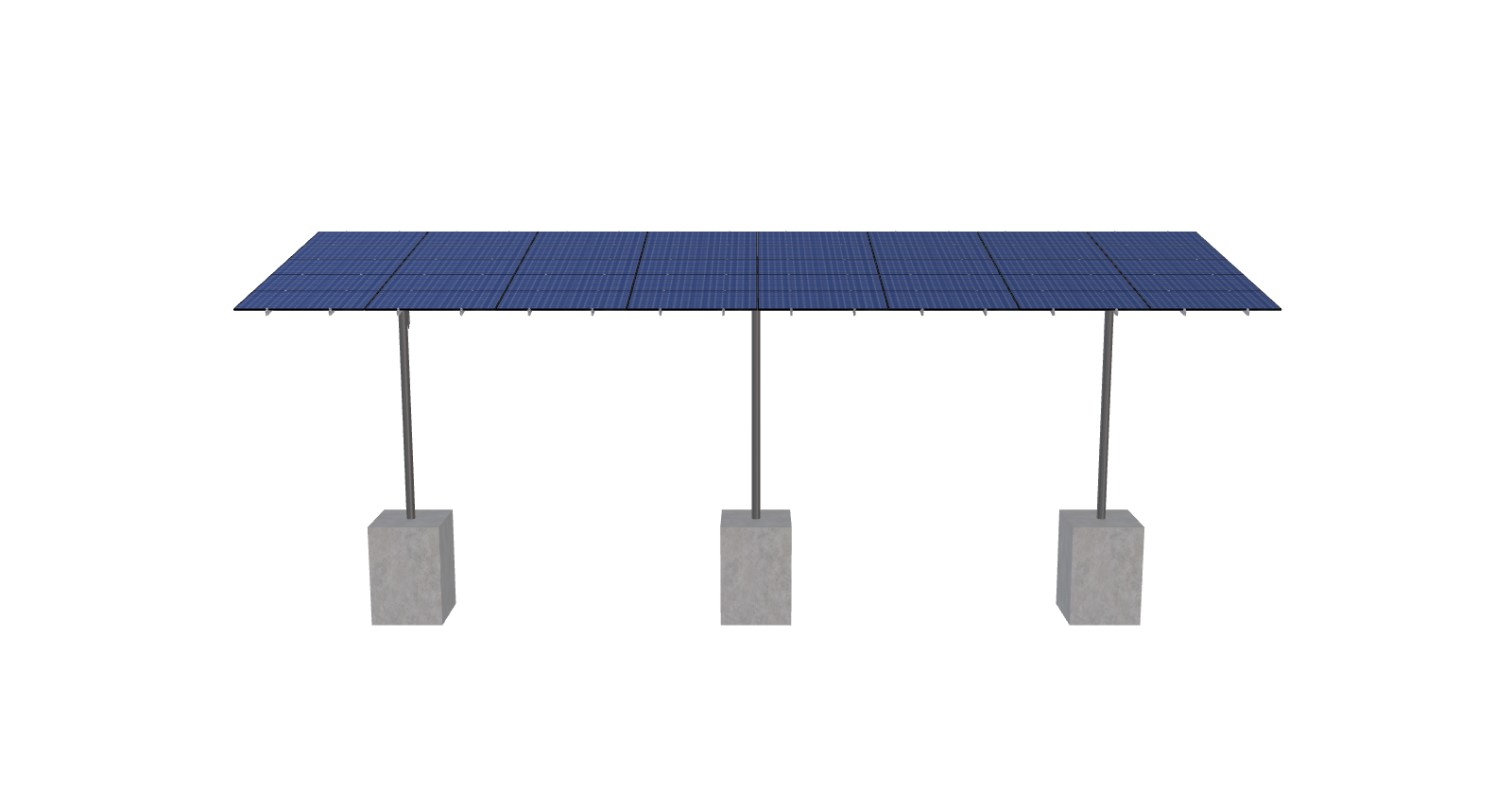

This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-8TOP-XD-45-L-5Hx8W-DLC3 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3583.37 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-XD-45-L-5HX8W-DLC3

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

15.63

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

10.00

CANTILEVER

720.00

GROUND CLEARANCE

14.00

NO POLES

3.00

MODULE AREA

1137.40

ARRAY WIDTH

60.46

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

89.69

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

60.00

GROUND TO TOP

17.25

PROJECTED PANEL HEIGHT

3.23

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

TAVOLI, APARTMENTS-CUV2

SITE ADDRESS

1040, ST, CHARLES, AVE, NEW, ORLEANS, LA, 70130, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

17630.96

TOTAL WEIGHT

3583.37

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/0257928d-df4c-413e-9e44-984d6c38be3b.pdf

ID

6634.00
