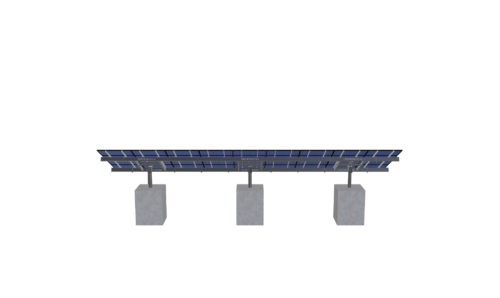

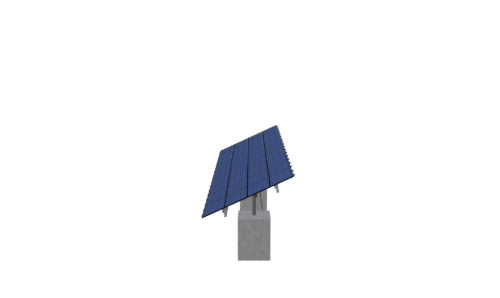

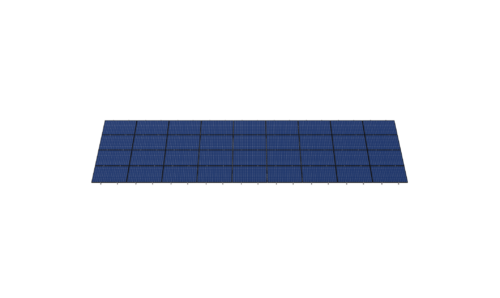

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
test design 1
$14,810.70
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2565.71 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-HD-45-L-4HX9W-GC34 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 3.85 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 1.00 |
| NO POLES | 3.00 |
| MODULE AREA | 668.25 |
| ARRAY WIDTH | 49.50 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 6.67 |
| PROJECTED PANEL HEIGHT | 5.63 |
| PROJECT ID | TEST, DESIGN, 1 |
| SITE ADDRESS | 12230, LYNDELL, PLANTATION, DR, PANAMA, CITY, BEACH, FL, 32407, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 14105.43 |
| TOTAL WEIGHT | 2565.71 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/f14f3601-f2d6-4b39-a0f7-ac922a0850ce.pdf |
|
| ID | 3483.00 |
| 3D Solar link |
