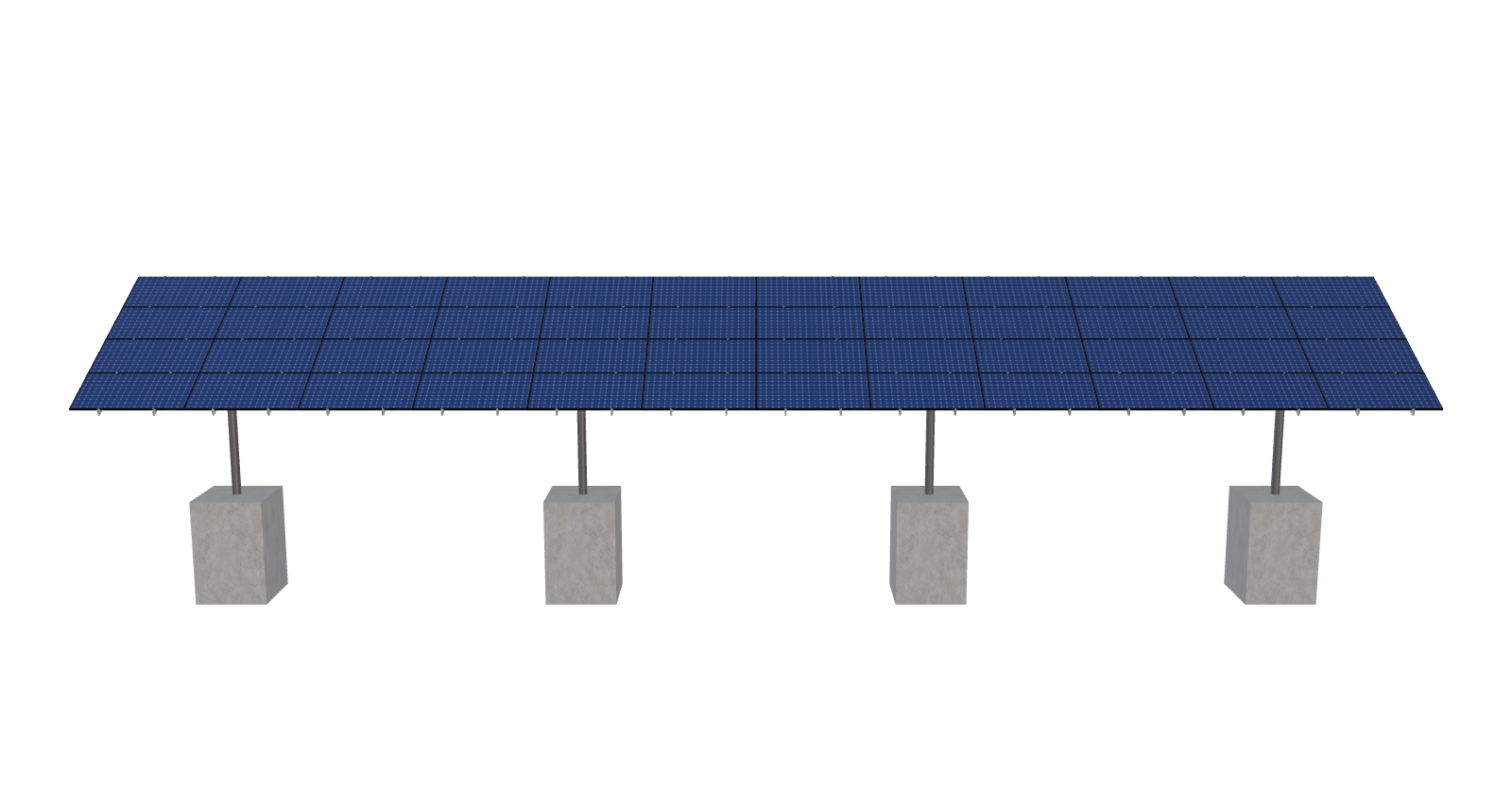

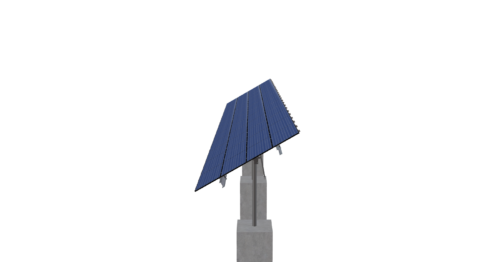

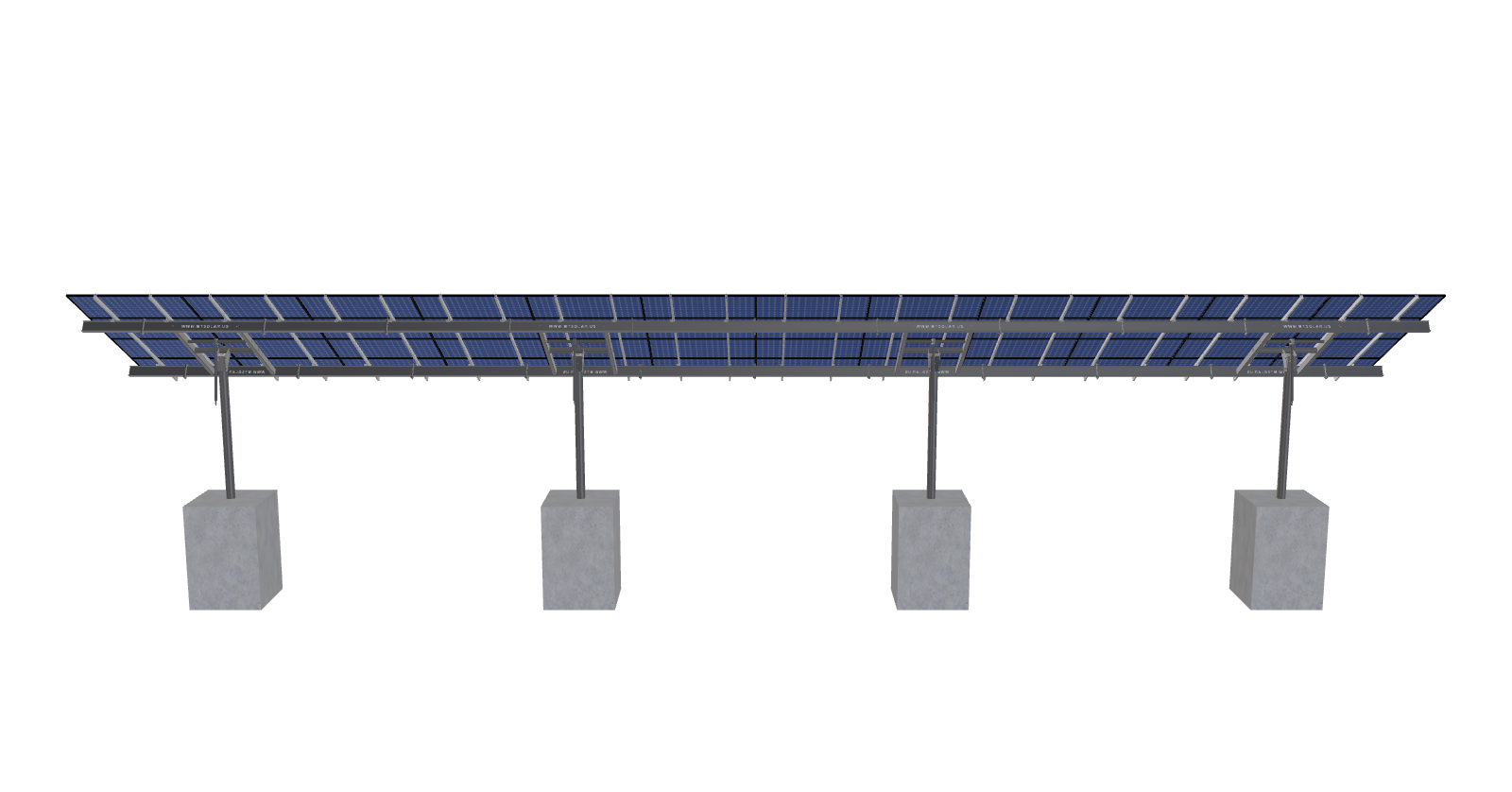

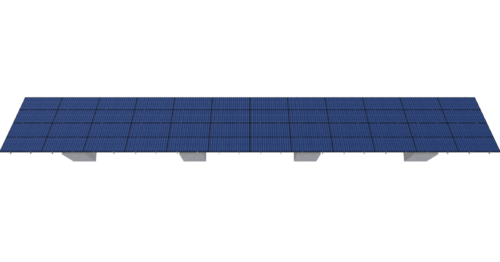

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.12 inches by 41.49 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Tobin Range-4×12-V1cu
$20,901.07
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.12 inches by 41.49 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3713.7599999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-HD-45-L-4HX12W-6D6I |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.50 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1163.40 |
| ARRAY WIDTH | 83.12 |
| ARRAY HEIGHT | 14.00 |
| RAIL LENGTH | 167.96 |
| MODULE LENGTH | 82.12 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 12.96 |
| PROJECTED PANEL HEIGHT | 6.91 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | TOBIN, RANGE-4X12-V1CU |
| SITE ADDRESS | 85G4QG79+7H |
| MODULE WIDTH | 41.49 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 19905.78 |
| TOTAL WEIGHT | 3713.76 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/bf58d204-dcf6-4c84-bc68-adf89300db0e.pdf |
|
| ID | 7102.00 |
| 3D Solar link |
