TOP25-87X44-160|5

$10,906.27

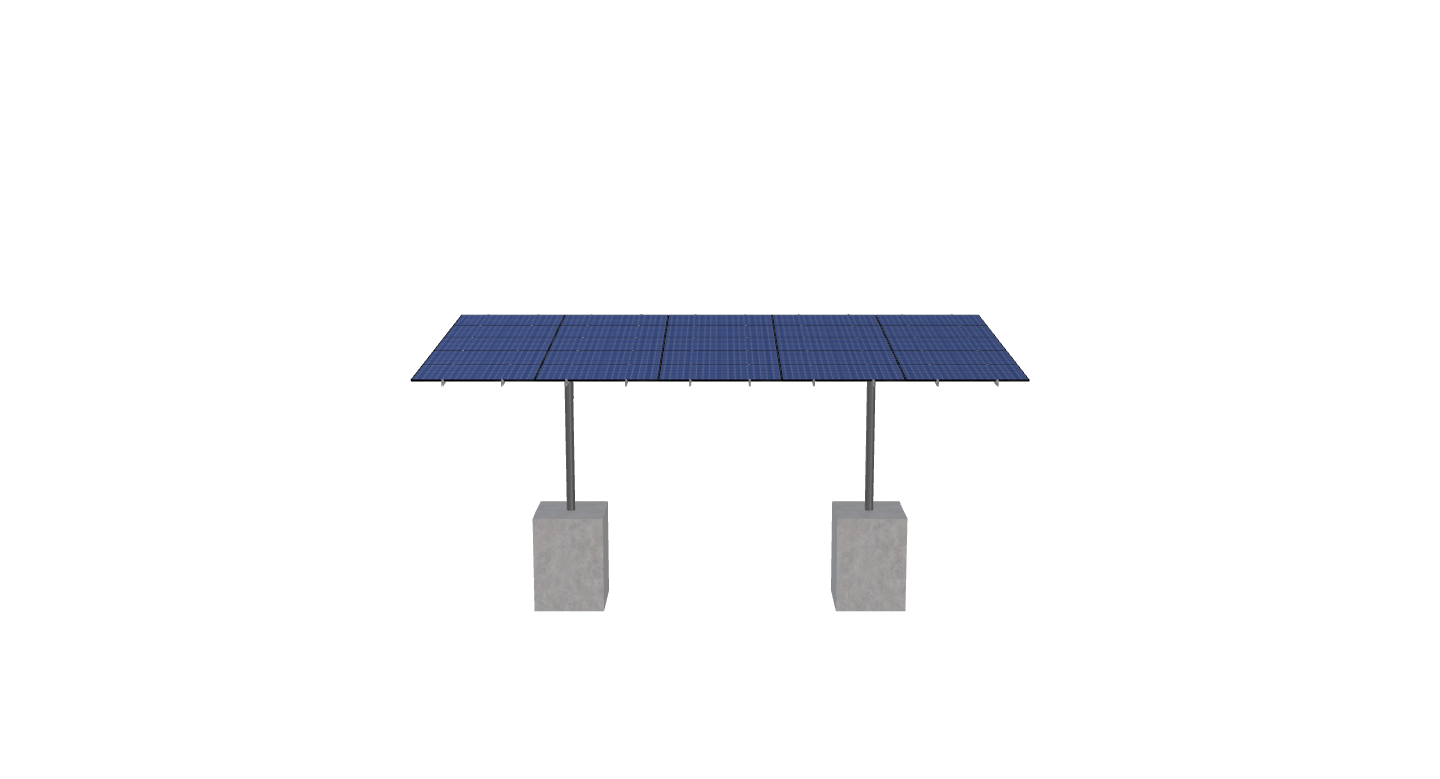

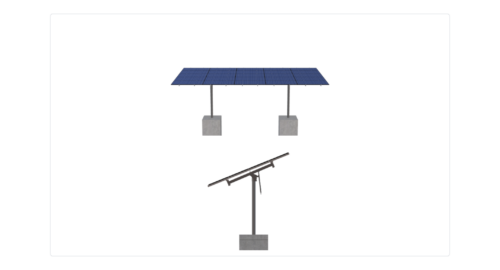

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-6TOP-XD-45-L-5Hx5W-DJ3A Category: Tags: , ,

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 44 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2187.8999999999996 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-6TOP-XD-45-L-5HX5W-DJ3A

DUTY SIZE

XD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

10.31

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

5.00

CANTILEVER

417.00

GROUND CLEARANCE

9.50

NO POLES

2.00

MODULE AREA

679.86

ARRAY WIDTH

36.67

ARRAY HEIGHT

18.54

RAIL LENGTH

222.50

MODULE LENGTH

87.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

11.11

PROJECTED PANEL HEIGHT

1.60

WIND SPEED OVERRIDE

160.00

SNOW LOAD OVERRIDE

5.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

TOP25-87X44-160, 5

SITE ADDRESS

54179, HERAK, RD, CHARLO, MT, 59824, USA

MODULE WIDTH

44.00

NUMBER ROWS

5.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

10906.27

TOTAL WEIGHT

2187.90

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/02e769a5-3a0d-46d3-8dfa-0b92243f92af.pdf

ID

5894.00

MODULE NUMBER

25

MODULE SIZE

87×44

WIND SNOW LOAD

160 mph, 5 psf
