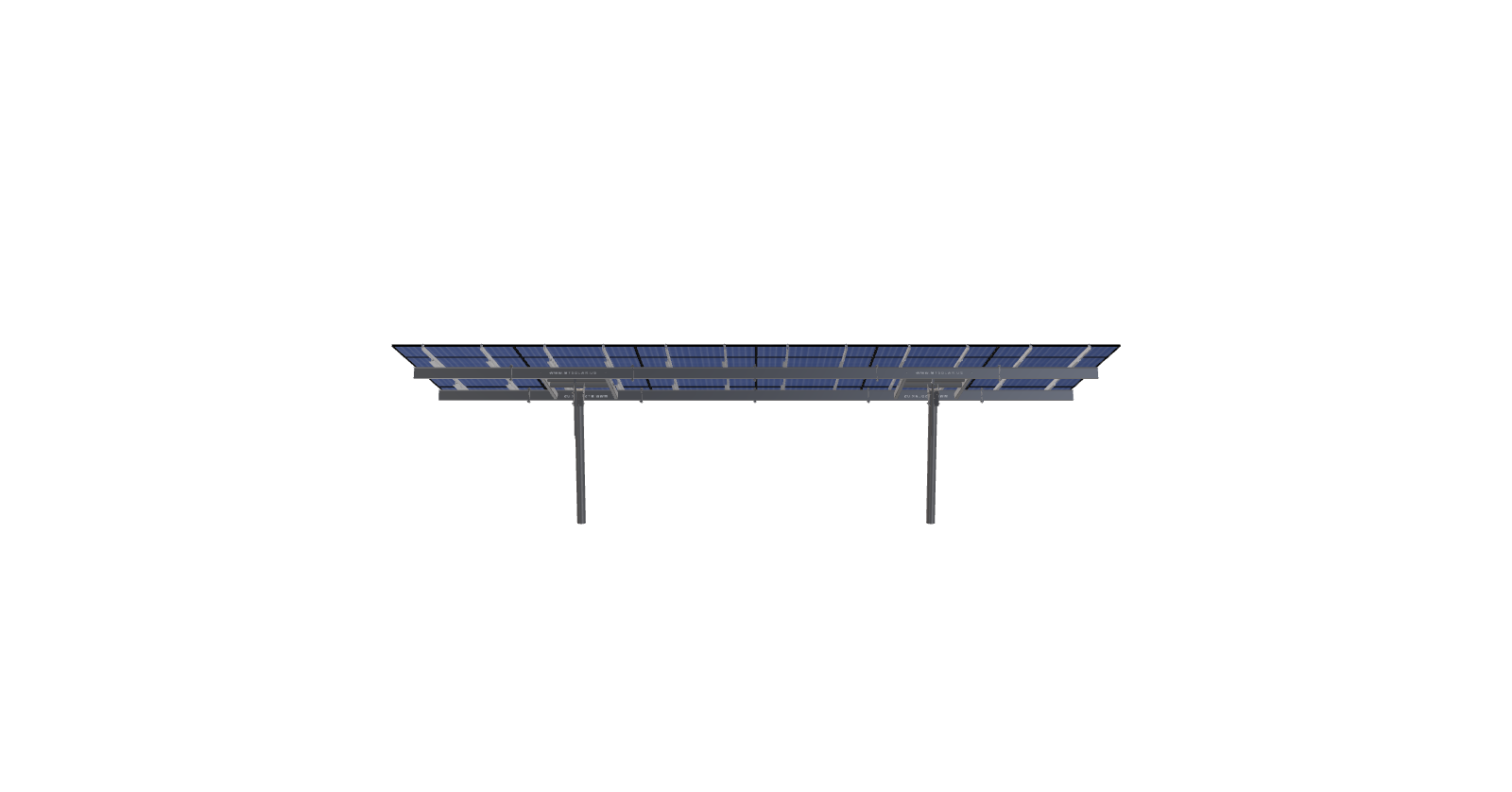

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.15 inches by 40.55 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Tracy Blvd-5×6-v1cu
$9,765.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.15 inches by 40.55 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1952.6399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-72-L-5HX6W-JG26 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.92 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 736.76 |
| ARRAY WIDTH | 43.08 |
| ARRAY HEIGHT | 17.10 |
| RAIL LENGTH | 205.25 |
| MODULE LENGTH | 85.15 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 11.81 |
| PROJECTED PANEL HEIGHT | 5.78 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 1.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | TRACY, BLVD-5X6-V1CU |
| SITE ADDRESS | 11433, S, TRACY, BLVD, STOCKTON, CA, 95206, USA |
| MODULE WIDTH | 40.55 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9765.43 |
| TOTAL WEIGHT | 1952.64 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d5dc02ff-eb1e-4f26-8f8e-c4b2505535ab.pdf |
|
| ID | 7029.00 |
| 3D Solar link |
