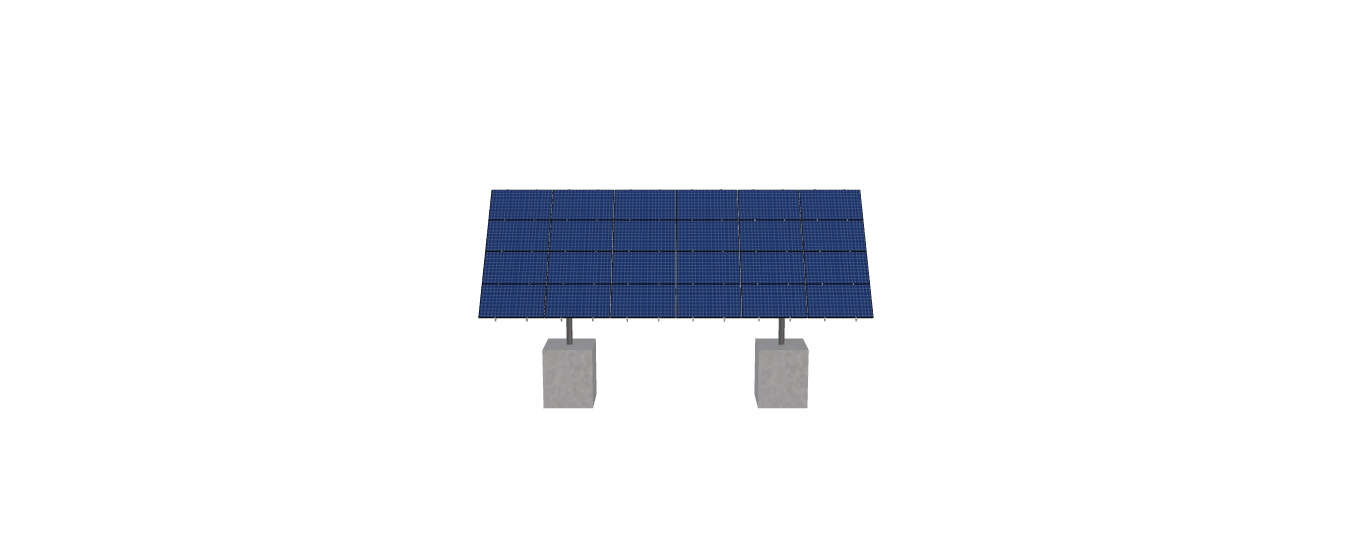

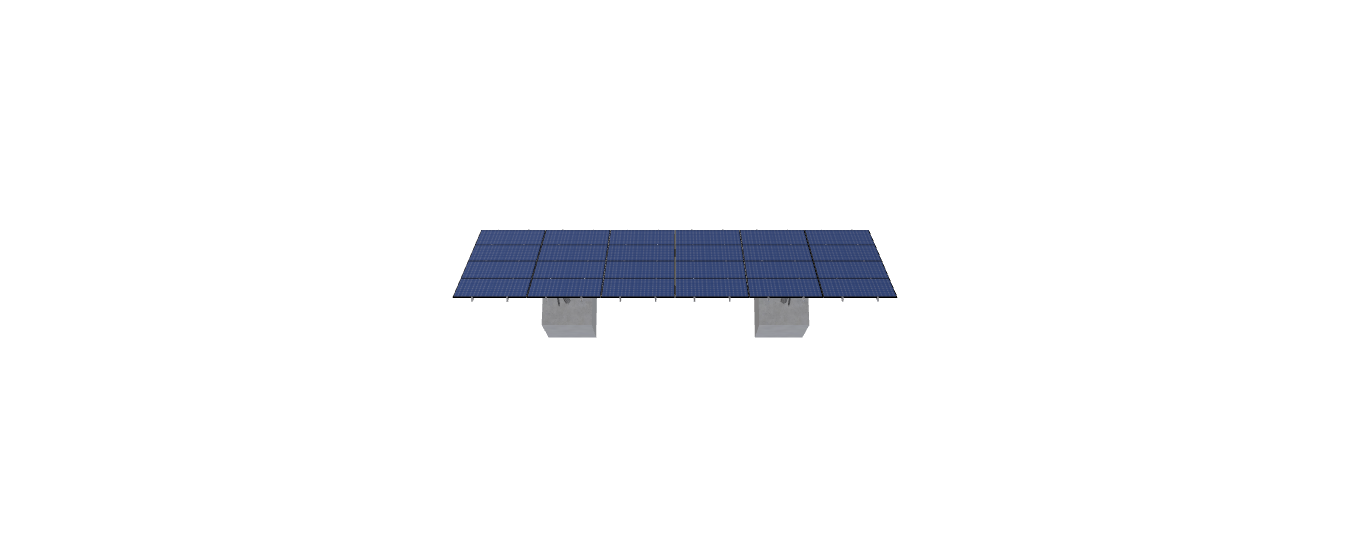

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Travis Zuroff
$8,511.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1473.78 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-SD-45-L-4HX6W-E7CJ |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.36 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 488.60 |
| ARRAY WIDTH | 34.90 |
| ARRAY HEIGHT | 14.00 |
| RAIL LENGTH | 168.00 |
| MODULE LENGTH | 68.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 13.72 |
| PROJECTED PANEL HEIGHT | 10.72 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ALLAN, HARDTKE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 406-860-7400 |
| PROJECT ID | TRAVIS, ZUROFF |
| SITE ADDRESS | 1475, CEDAR, CANYON, RD, BILLINGS, MT, 59101, USA |
| MODULE INFO | MISSION, SOLAR, ENERGY |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8511.49 |
| TOTAL WEIGHT | 1473.78 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/3da83c43-c097-4db3-84a3-d648e5fbd47e.pdf |
|
| ID | 10938.00 |
| 3D Solar link |
