This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.9 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
VA Tech
$8,942.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.9 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1581.16 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

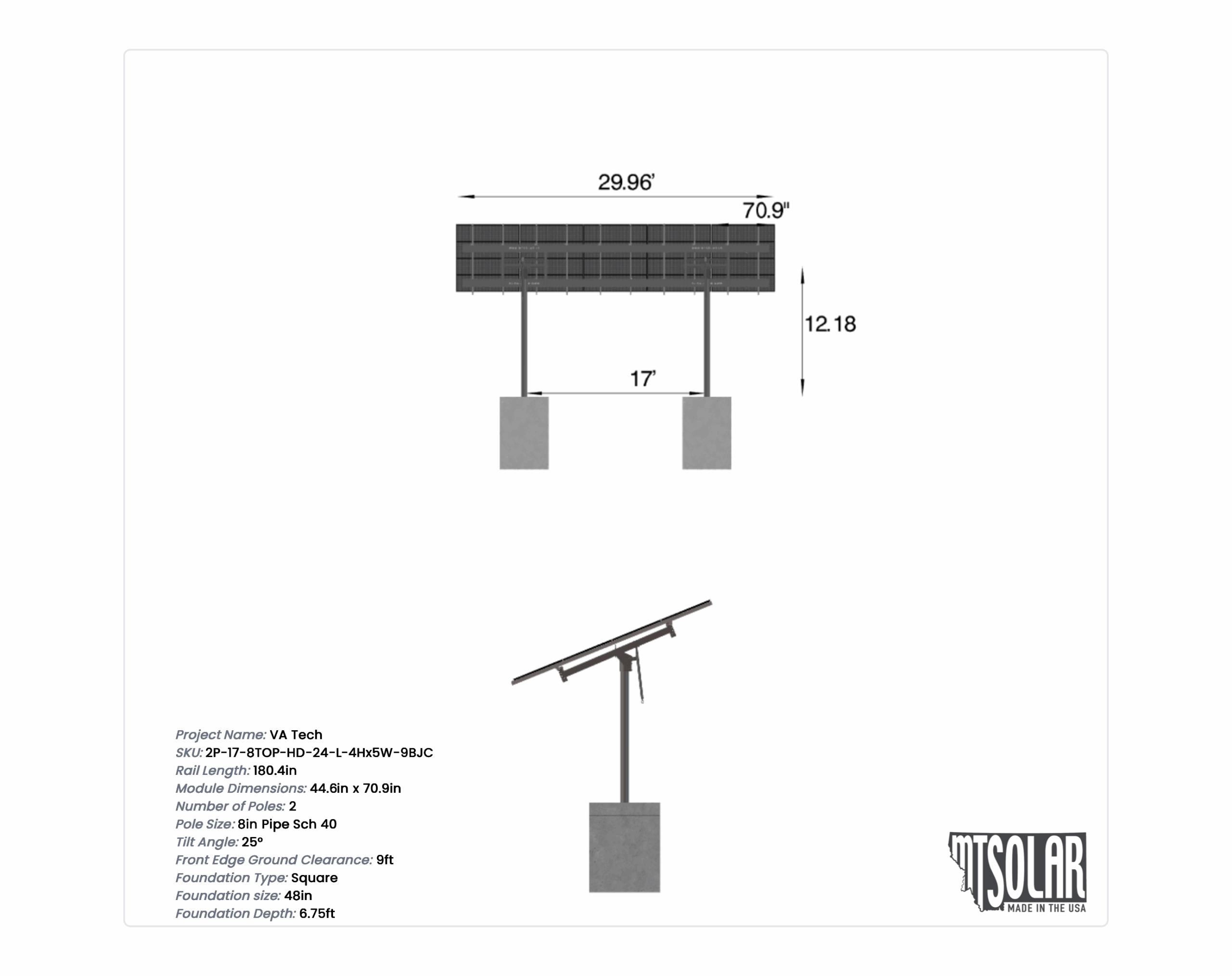

| SKU CODE | 2P-17-8TOP-HD-24-L-4HX5W-9BJC |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.18 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 450.37 |
| ARRAY WIDTH | 29.96 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 70.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 15.35 |
| PROJECTED PANEL HEIGHT | 6.35 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | VA, TECH |
| SITE ADDRESS | SMITHFIELD, RD, BLACKSBURG, VA, 24061, USA |
| MODULE INFO | CANADIAN, 450 |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8942.99 |
| TOTAL WEIGHT | 1581.16 |
| TOTAL PALLETS | 2.00 |
