This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

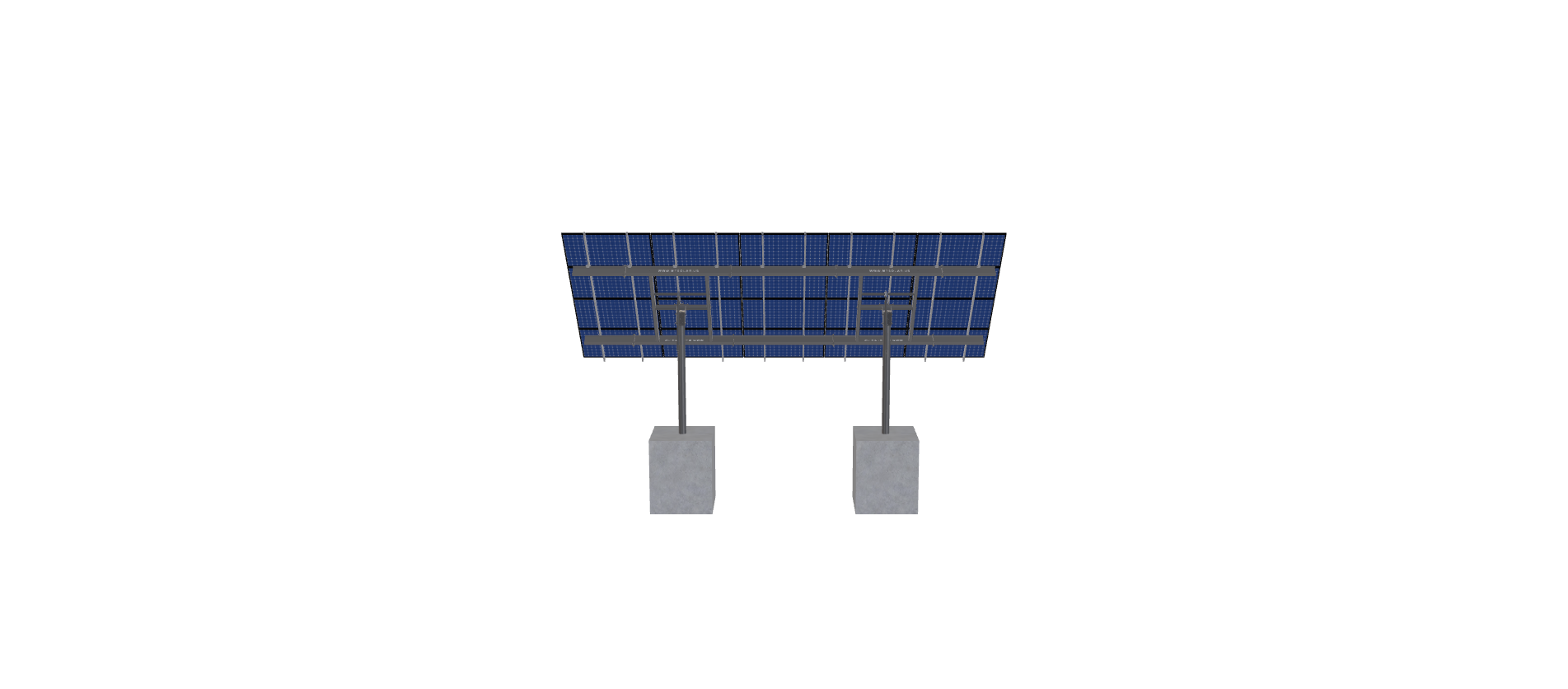

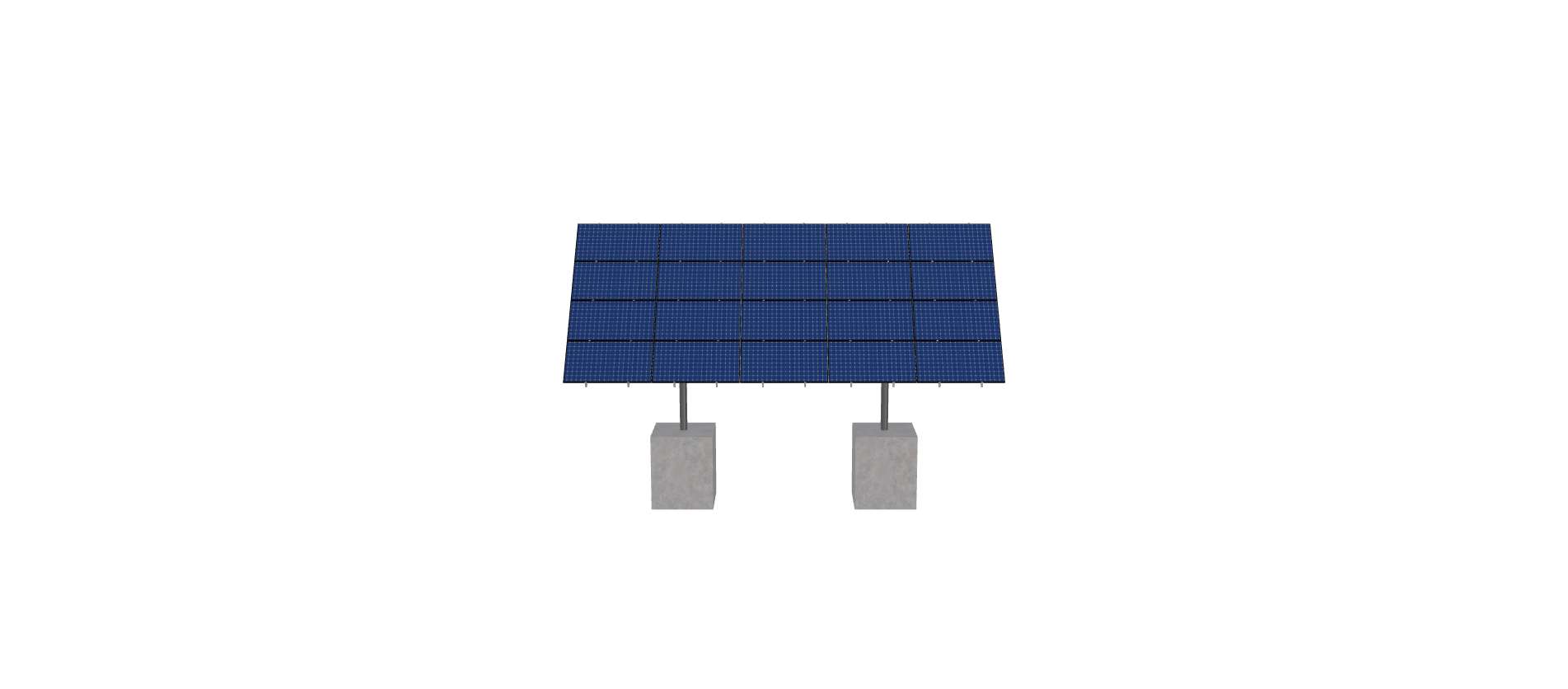

See 3D Model Here
Vanderweit 9-28 Unpainted
$7,389.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1291.6 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-15-6TOP-SD-45-L-4HX5W-06D9 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 15.00 |
POLE HEIGHT | 9.31 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 5.50 |
TILT ANGLE | 50.00 |
CANTILEVER | 360.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 2.00 |
MODULE AREA | 433.33 |
ARRAY WIDTH | 31.25 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 30.00 |
GROUND TO TOP | 14.62 |
PROJECTED PANEL HEIGHT | 10.62 |
DESIGNER NAME | NICK |
DESIGNER EMAIL | |
DESIGNER PHONE | 315-796-5657 |
PROJECT ID | VANDERWEIT, 9-28 |
SITE ADDRESS | 531, LOOP, RD, LEADVILLE, CO, 80461, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 5.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 105.00 |
SNOW LOAD OVERRIDE | 85.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 7389.99 |
TOTAL WEIGHT | 1291.60 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b4a7bea3-5674-495e-b74b-5a9c85354337.pdf |
|
ID | 8705.00 |
3D Solar link |
