W-11757 Expansion – RevC – Jb

$7,630.96

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 41 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $7,630.96
Total options:
Order total:
SKU: 2P-15-6TOP-HD-12-L-4Hx4W-JCF7 Category:

Description

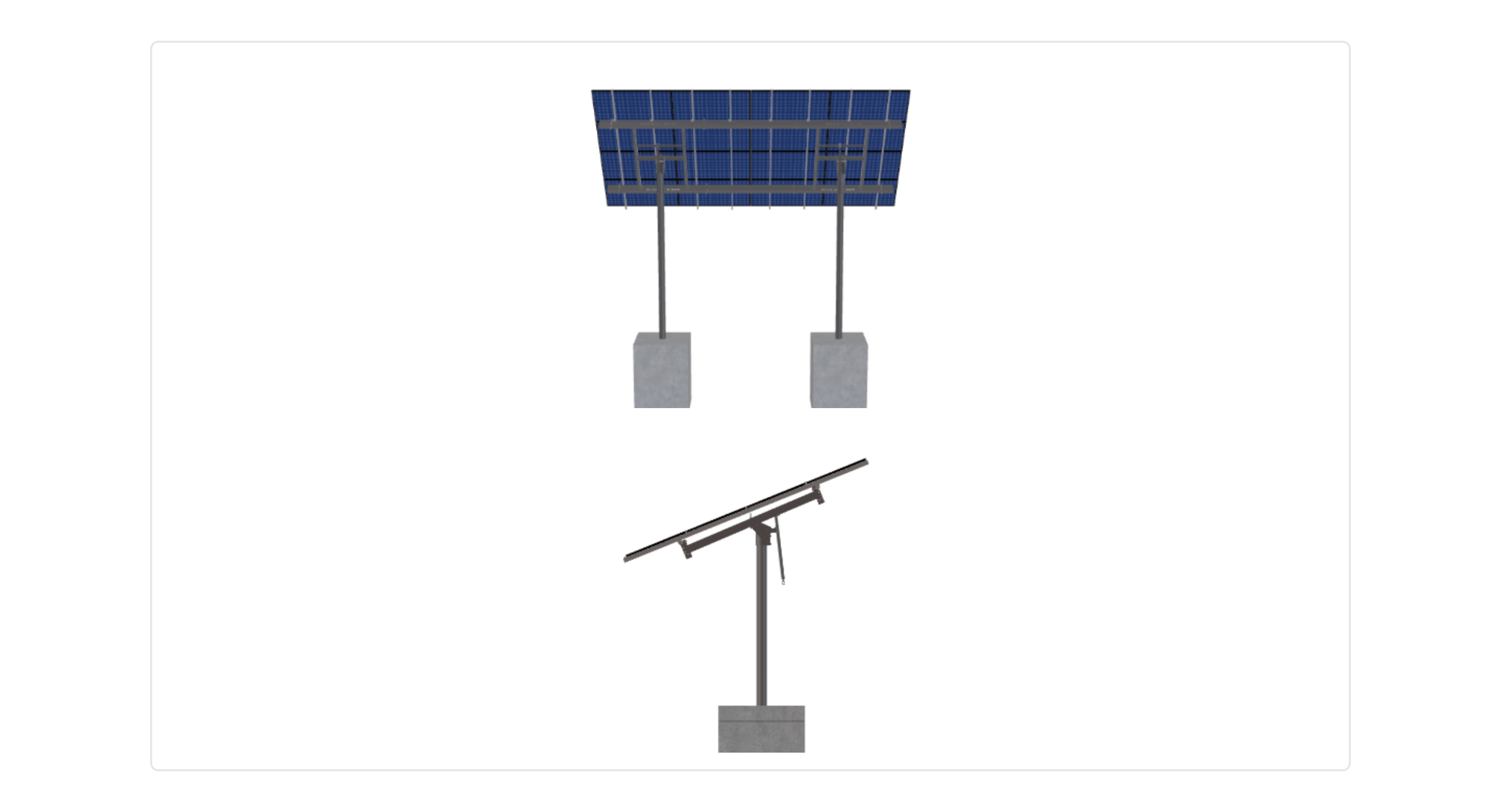

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 41 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1376.02 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-6TOP-HD-12-L-4HX4W-JCF7

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

15.30

WING SPAN

12.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

294.00

GROUND CLEARANCE

10.00

NO POLES

2.00

MODULE AREA

353.67

ARRAY WIDTH

25.57

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

75.70

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

24.50

GROUND TO TOP

20.53

PROJECTED PANEL HEIGHT

10.47

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

120.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

PROJECT ID

W-11757, EXPANSION, -, REVC, -, JB

SITE ADDRESS

ALASKA, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

HD

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

7630.96

TOTAL WEIGHT

1376.02

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/adf687dc-2048-4a1c-9014-c6bda8ba3e9f.pdf

ID

6906.00
