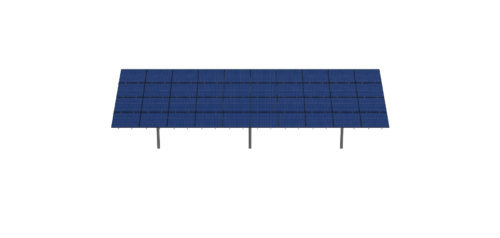

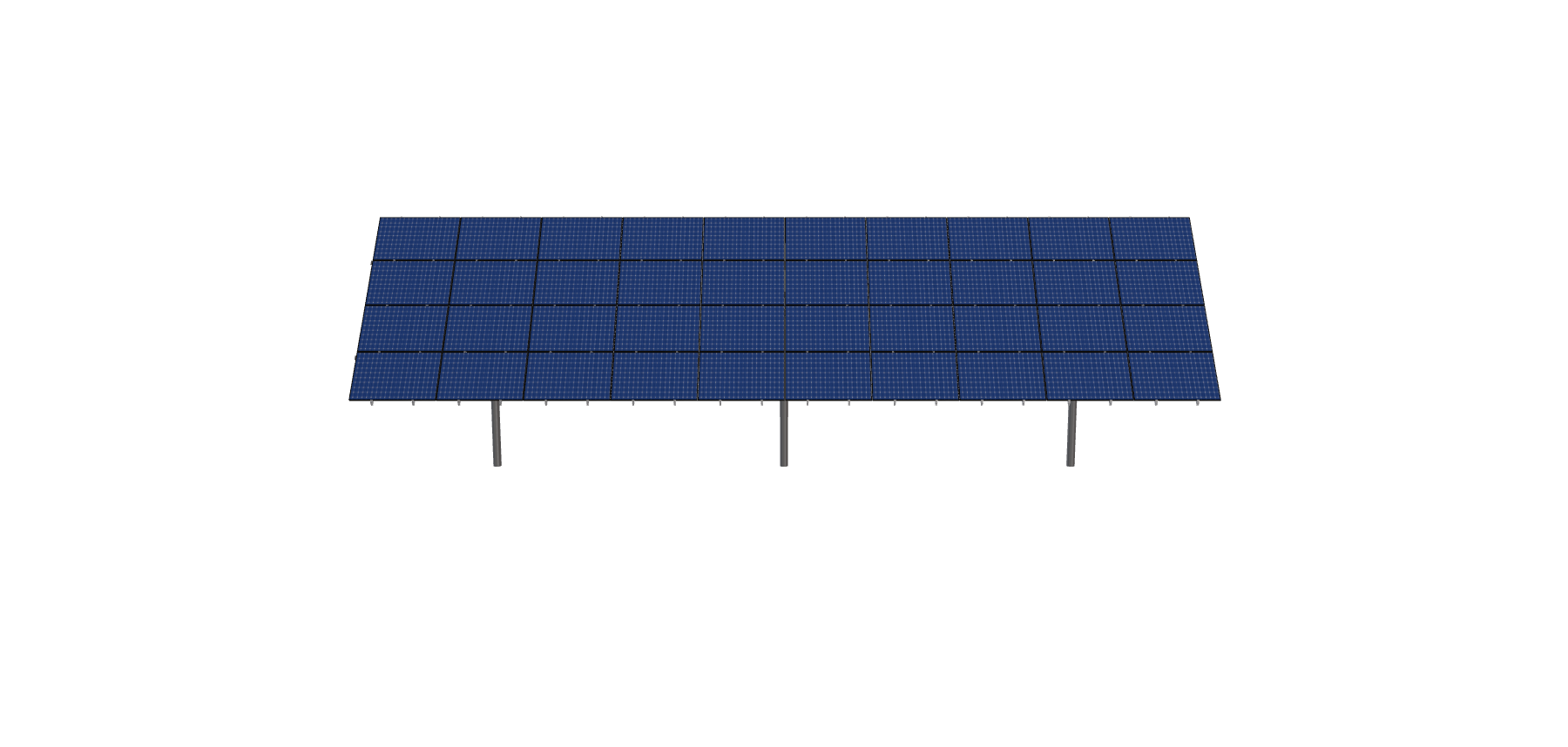

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 44 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

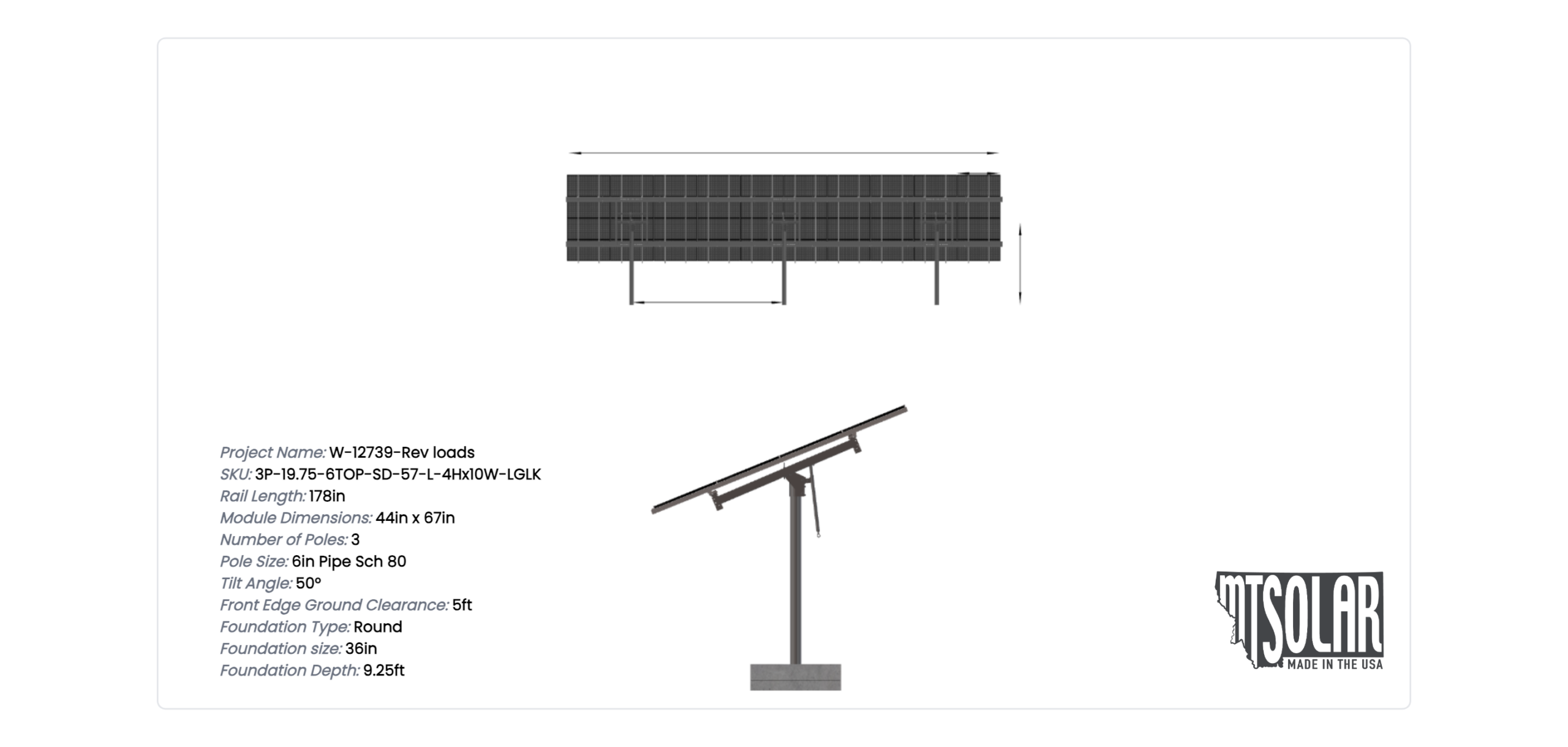

See 3D Model Here
W-12739-Rev loads
$12,913.44
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 44 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2283.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-57-L-4HX10W-LGLK |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.68 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 840.56 |
| ARRAY WIDTH | 56.67 |
| ARRAY HEIGHT | 14.83 |
| RAIL LENGTH | 178.00 |
| MODULE LENGTH | 67.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 16.36 |
| PROJECTED PANEL HEIGHT | 11.36 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | W-12739-REV, LOADS |
| SITE ADDRESS | 2286, BALDWIN, CREEK, RD, LANDER, WY, 82520, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 57.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12913.44 |
| TOTAL WEIGHT | 2283.20 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/627a8c4c-61ae-4ea5-b741-6b66cebc3733.pdf |
|
| ID | 8713.00 |
| 3D Solar link |
