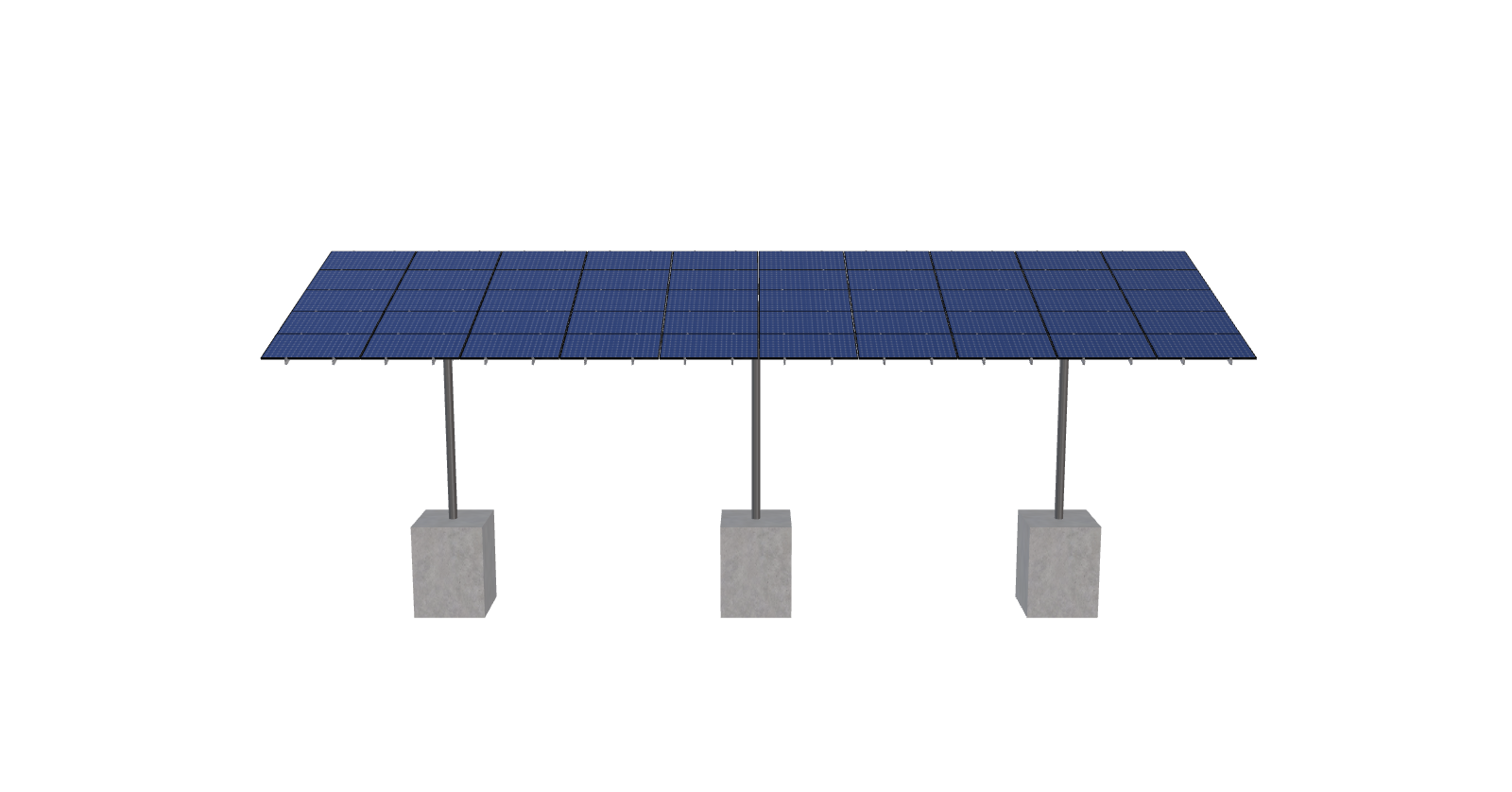

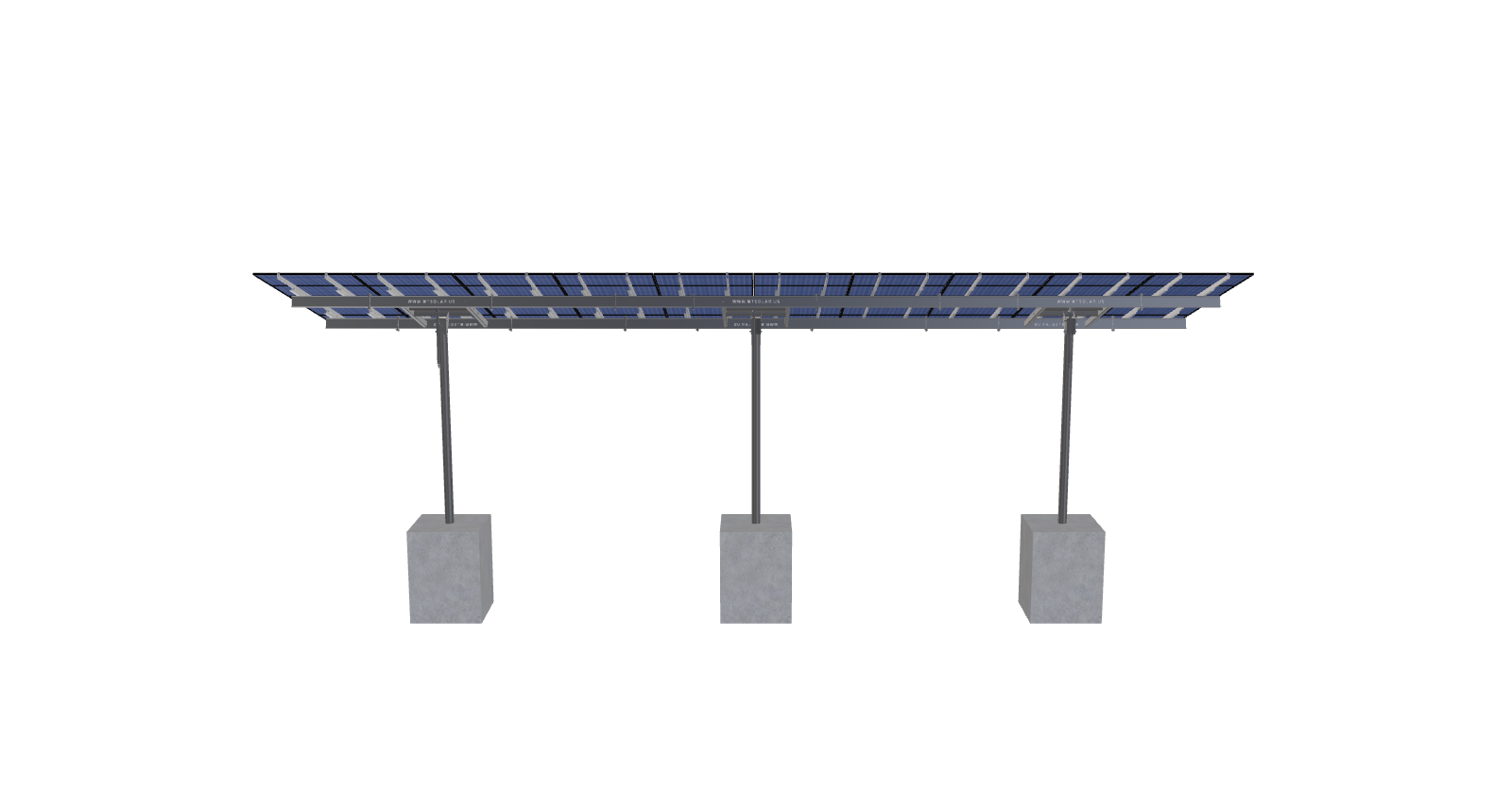

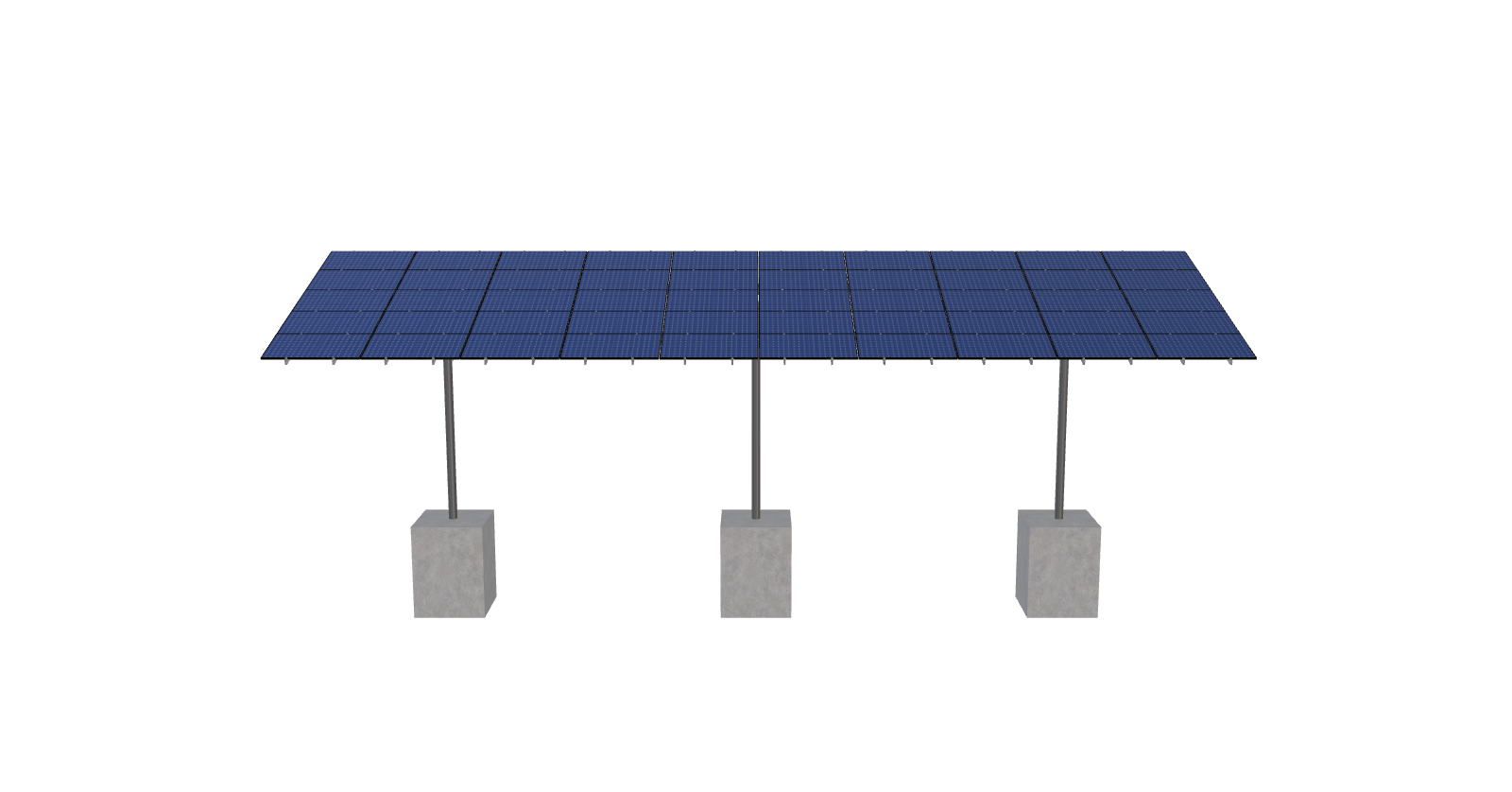

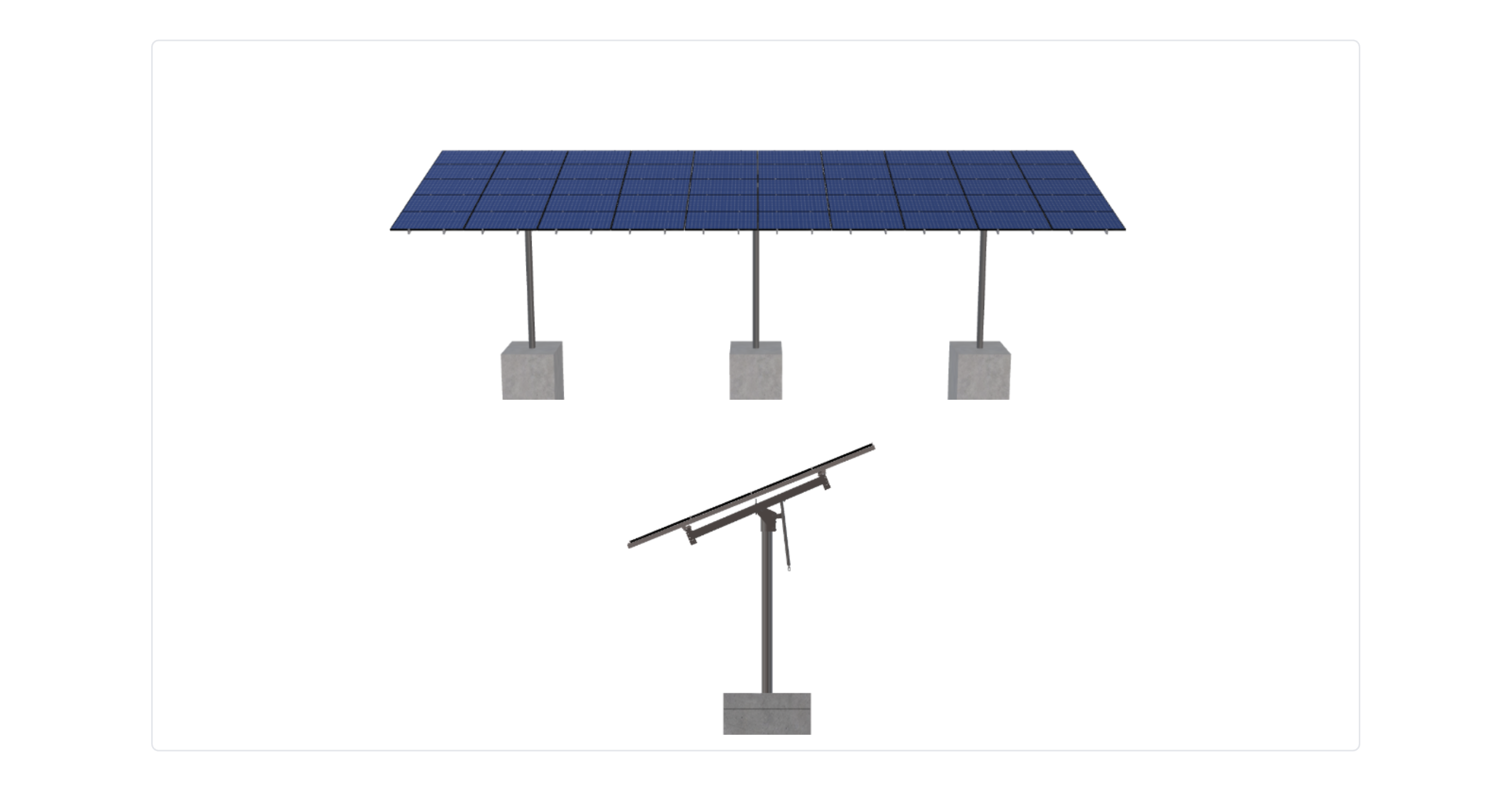

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W12185 -11ft- CU-
$19,198.19
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3702.25 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-57-L-5HX10W-21DE |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.52 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 17.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 11.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1008.12 |
| ARRAY WIDTH | 58.44 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 69.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 16.01 |
| PROJECTED PANEL HEIGHT | 4.98 |
| WIND SPEED OVERRIDE | 106.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | W12185, -11FT-, CU- |
| SITE ADDRESS | 2845, N, SANDERS, ST, HELENA, MT, 59601, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SANDY, GRAVEL |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18283.99 |
| TOTAL WEIGHT | 3702.25 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/535c3166-d15d-489b-8835-aa89ace51cf4.pdf |
|
| ID | 7166.00 |
| 3D Solar link |
