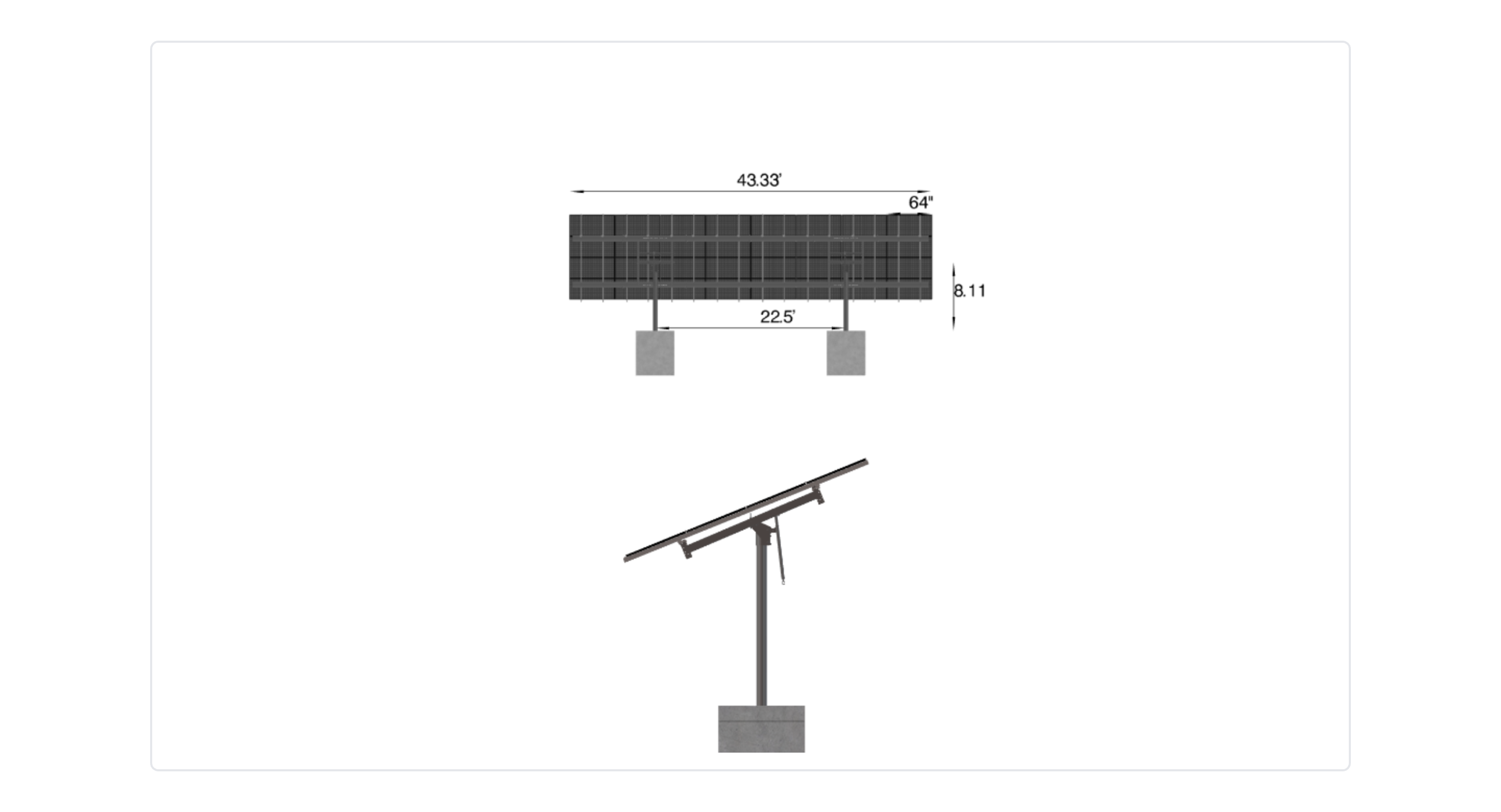

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64 inches by 42.1 inches and an array layout of 8 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

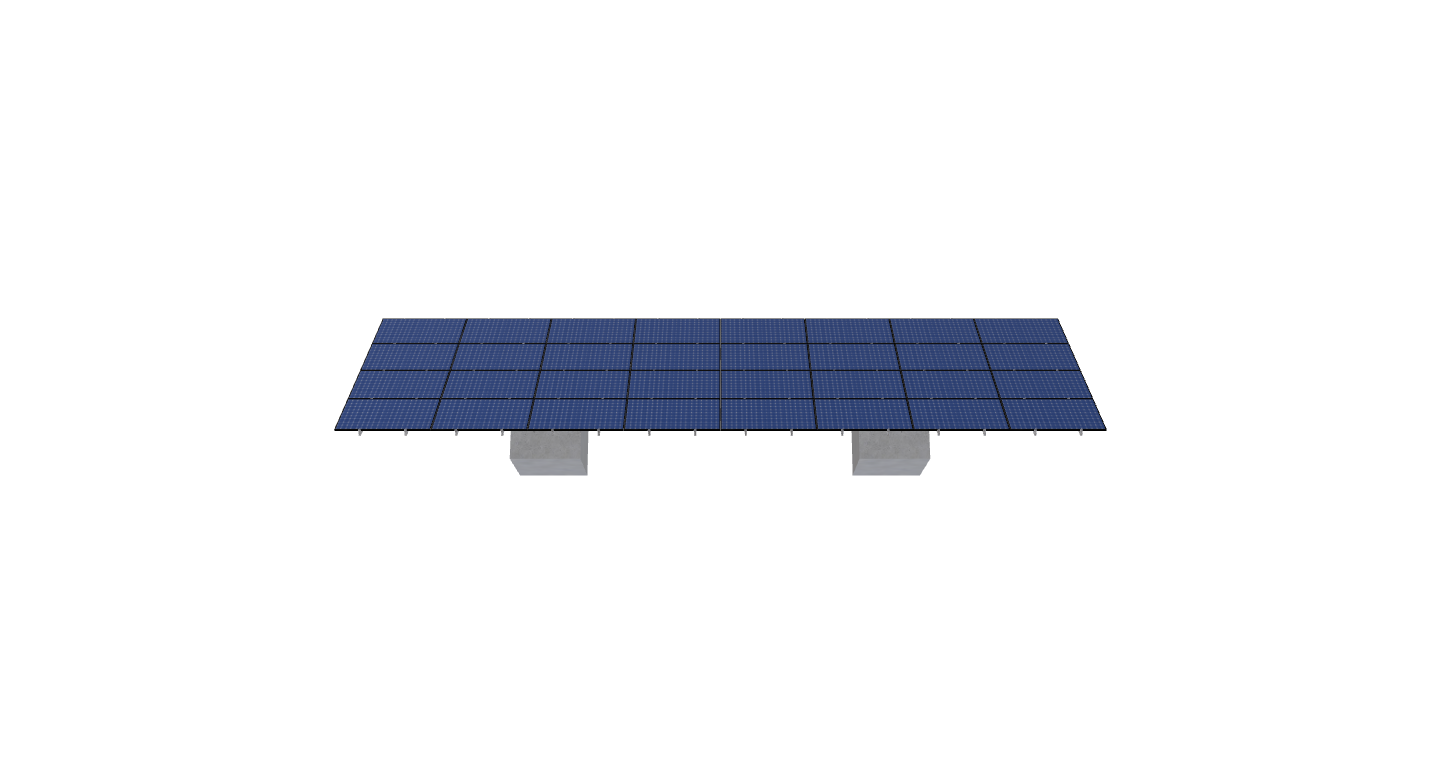

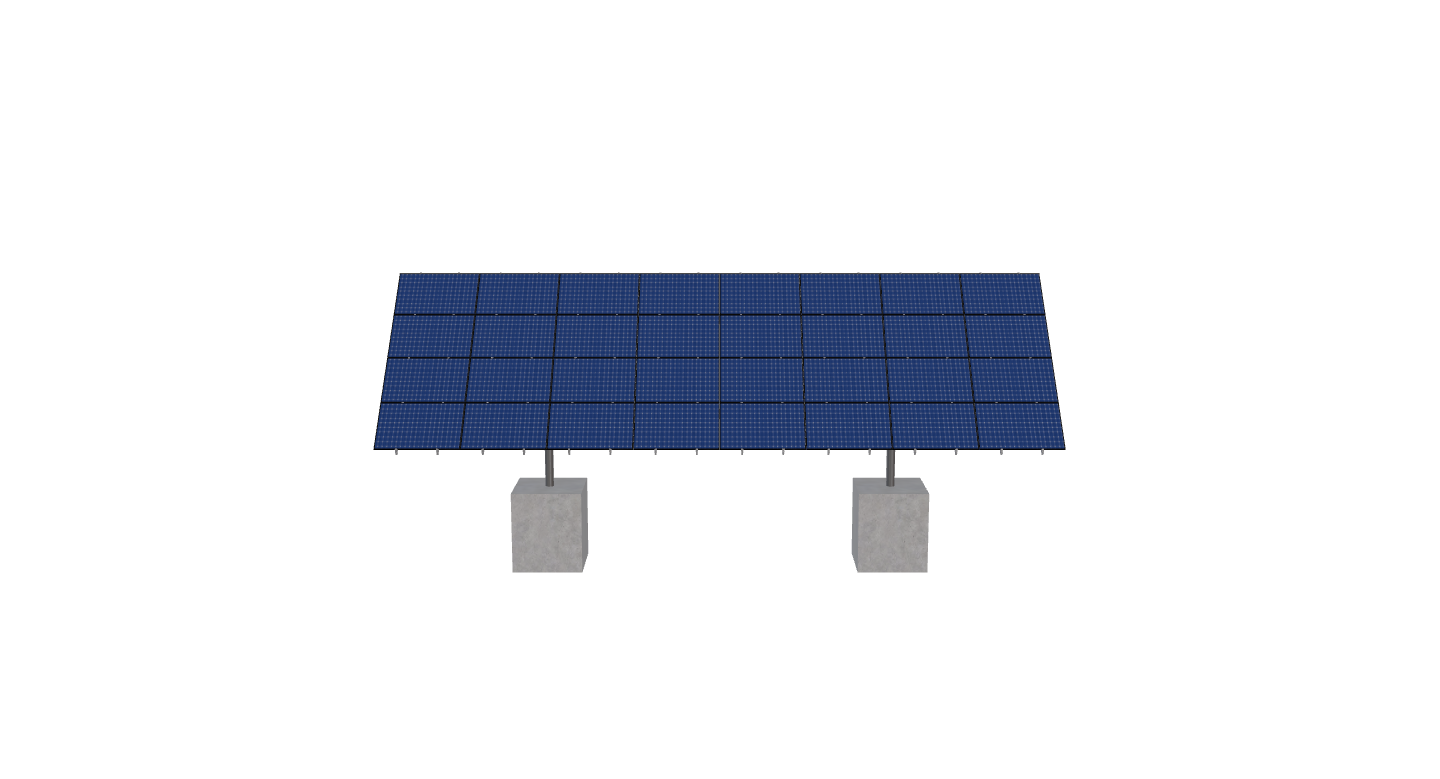

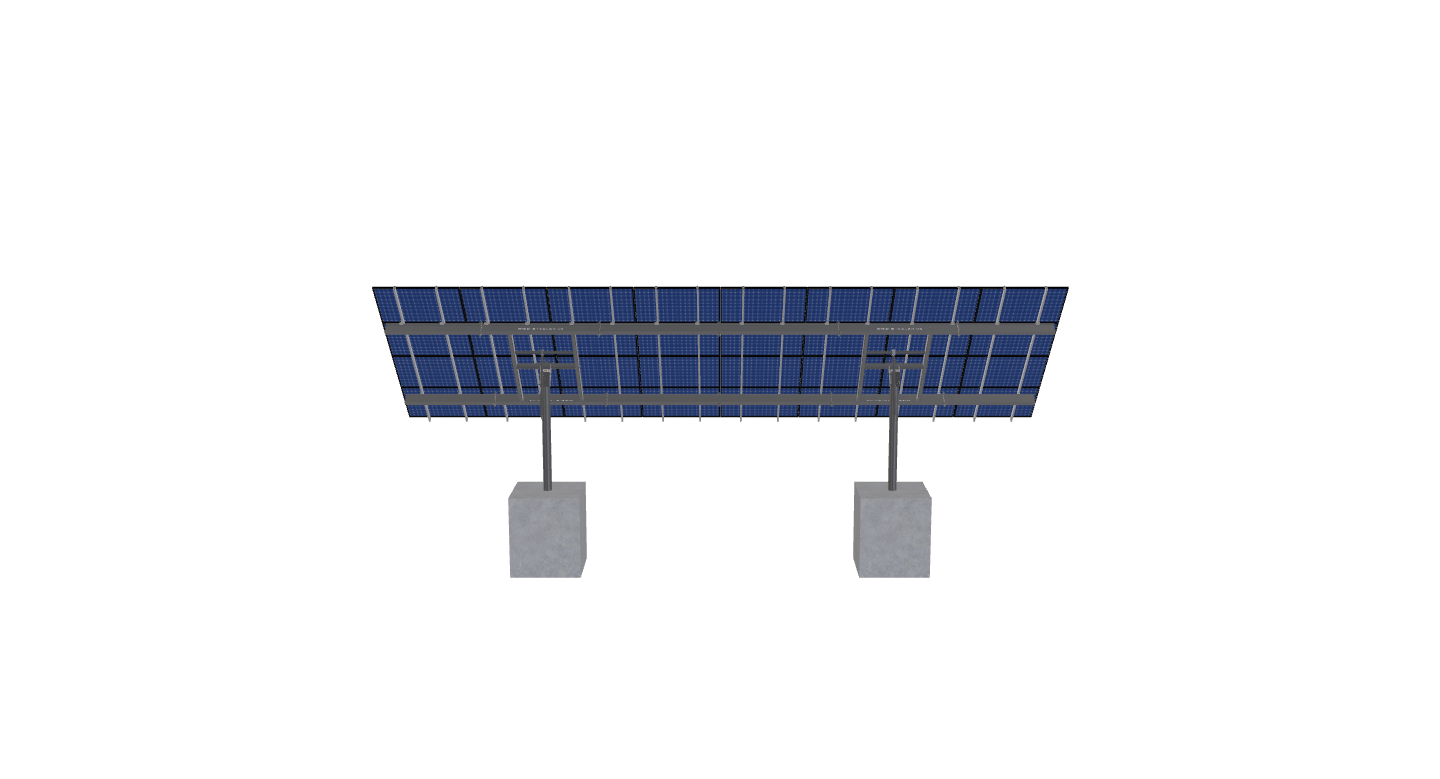

See 3D Model Here
Wentworth Plymouth Ener – 32 mods – Jb
$12,172.51
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64 inches by 42.1 inches and an array layout of 8 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2152.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-XD-72-L-4HX8W-STRUTS-DKI3 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.11 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 615.33 |
| ARRAY WIDTH | 43.33 |
| ARRAY HEIGHT | 14.20 |
| RAIL LENGTH | 170.40 |
| MODULE LENGTH | 64.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 13.15 |
| PROJECTED PANEL HEIGHT | 10.09 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 96.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | WENTWORTH, PLYMOUTH, ENER, -, 32, MODS, -, JB |
| SITE ADDRESS | 19, TURNER, RD, WENTWORTH, NH, 03282, USA |
| MODULE WIDTH | 42.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11592.87 |
| TOTAL WEIGHT | 2152.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/840e2352-c0c2-4cd5-aad4-881148b3513a.pdf |
|
| ID | 5730.00 |
| 3D Solar link |
