1030 West River road 2 – V1Jb

$12,378.66

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81 inches by 40 inches and an array layout of 9 wide by 3 high.

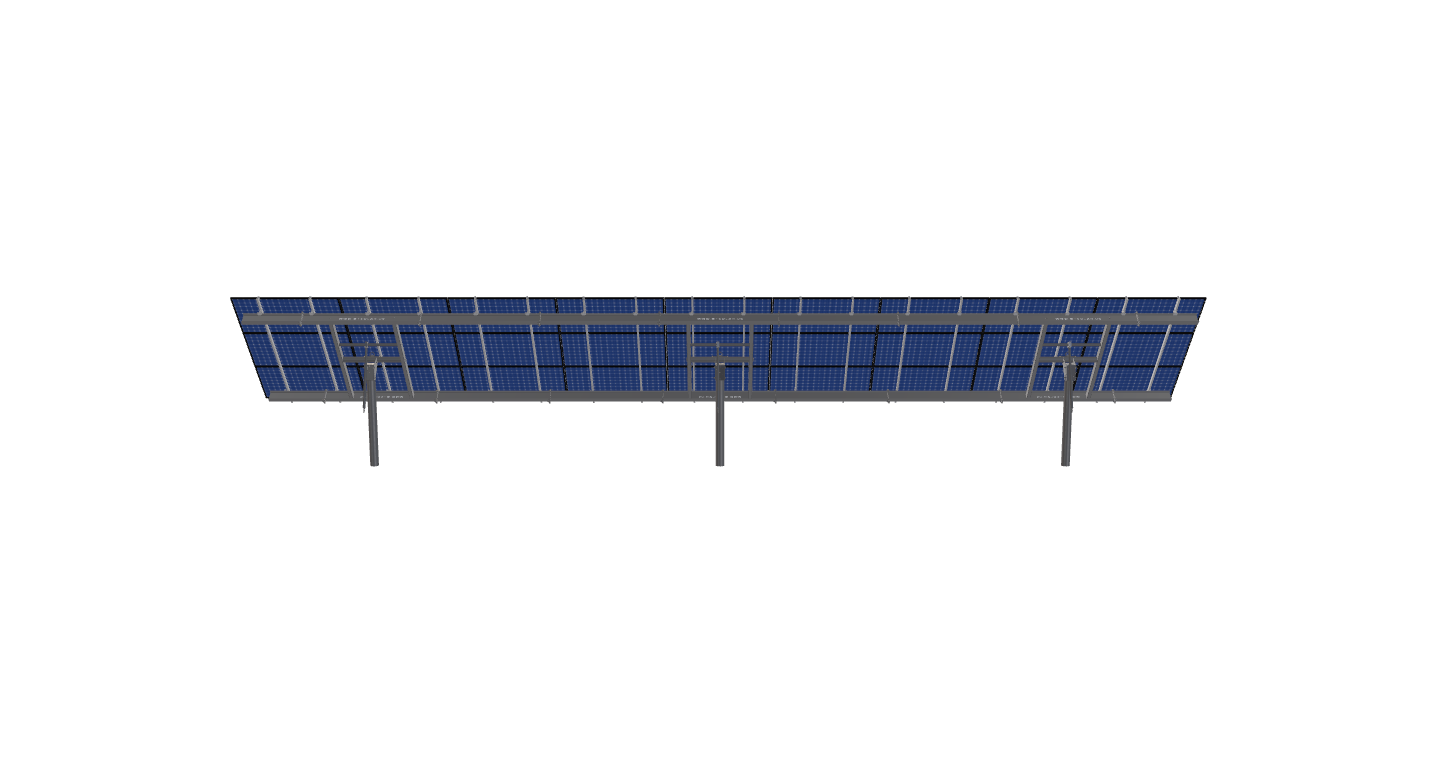

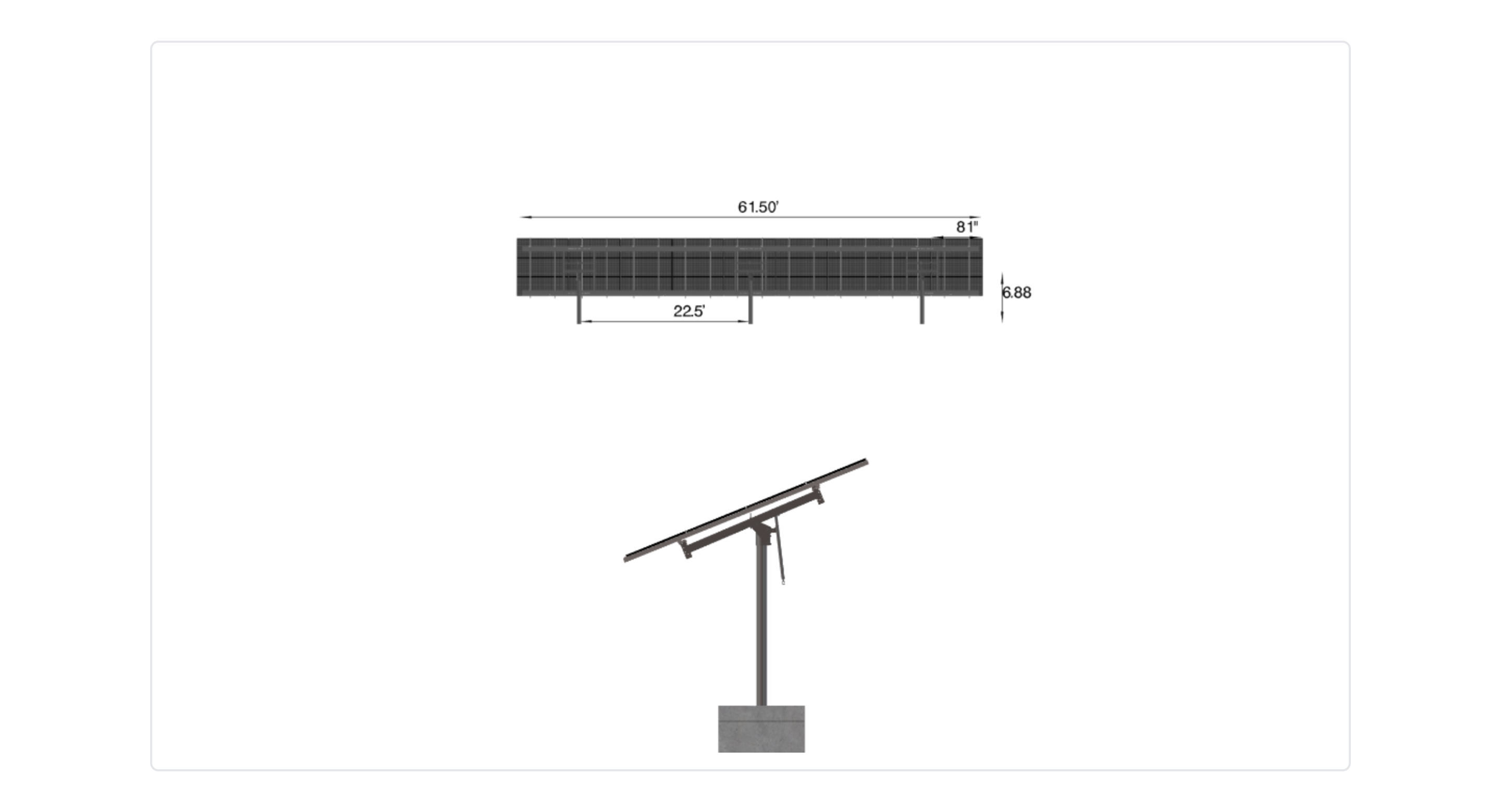

This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-6TOP-SD-45-L-3Hx9W-D4L4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81 inches by 40 inches and an array layout of 9 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2243.2799999999997 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-6TOP-SD-45-L-3HX9W-D4L4

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

6.88

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

50.00

CANTILEVER

720.00

GROUND CLEARANCE

3.00

NO POLES

3.00

MODULE AREA

622.69

ARRAY WIDTH

61.50

ARRAY HEIGHT

10.13

RAIL LENGTH

121.50

MODULE LENGTH

81.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

60.00

GROUND TO TOP

10.71

PROJECTED PANEL HEIGHT

7.66

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

1030, WEST, RIVER, ROAD, 2, -, V1JB

SITE ADDRESS

1030, W, RIVER, RD, WORLAND, WY, 82401, USA

MODULE WIDTH

40.00

NUMBER ROWS

3.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

12378.66

TOTAL WEIGHT

2243.28

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/0856ef79-8fae-4d8b-9069-3791c7322792.pdf

ID

7362.00
