1211ArrowheadDriveSolar-RevC

$4,171.28

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

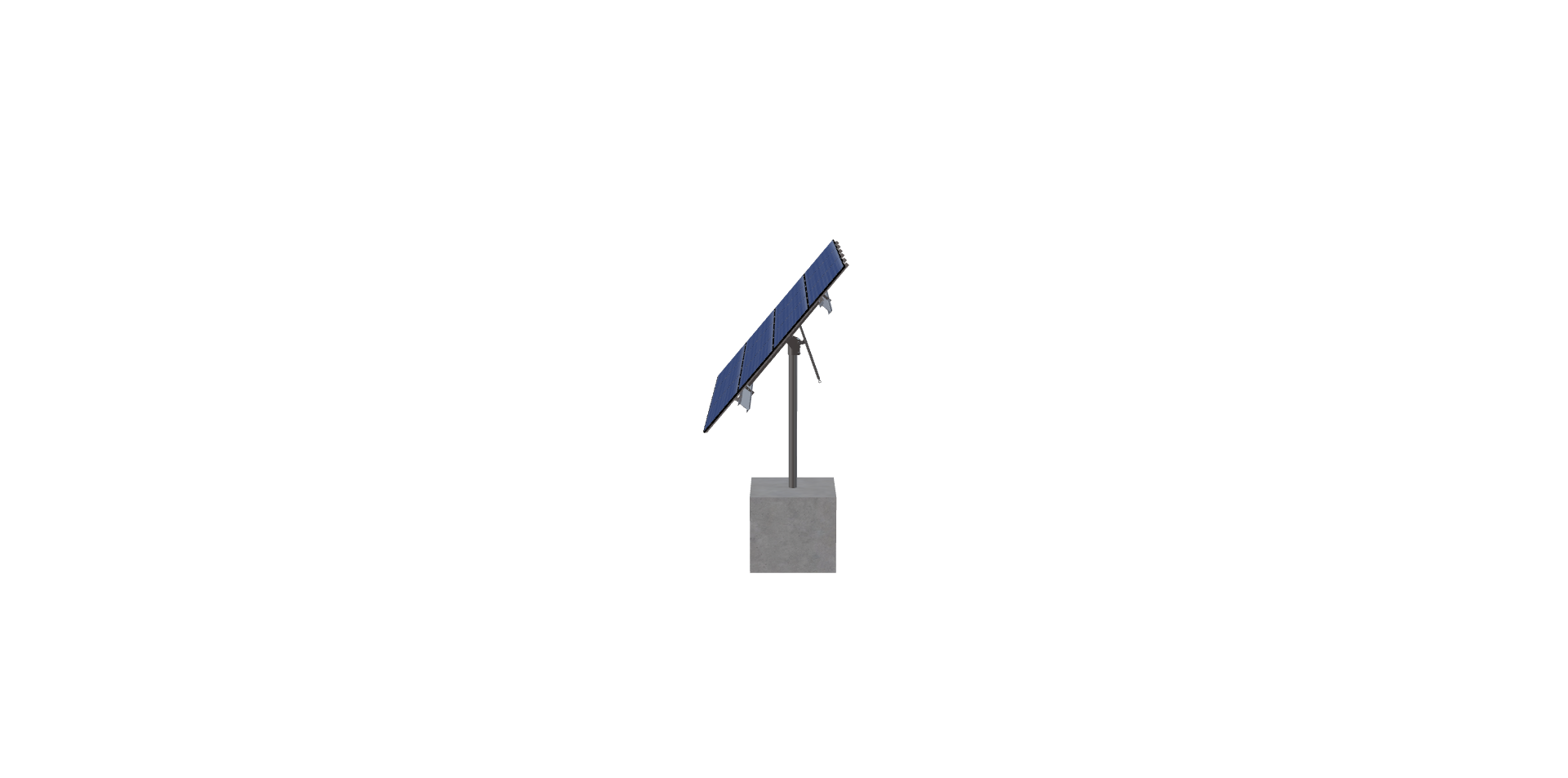

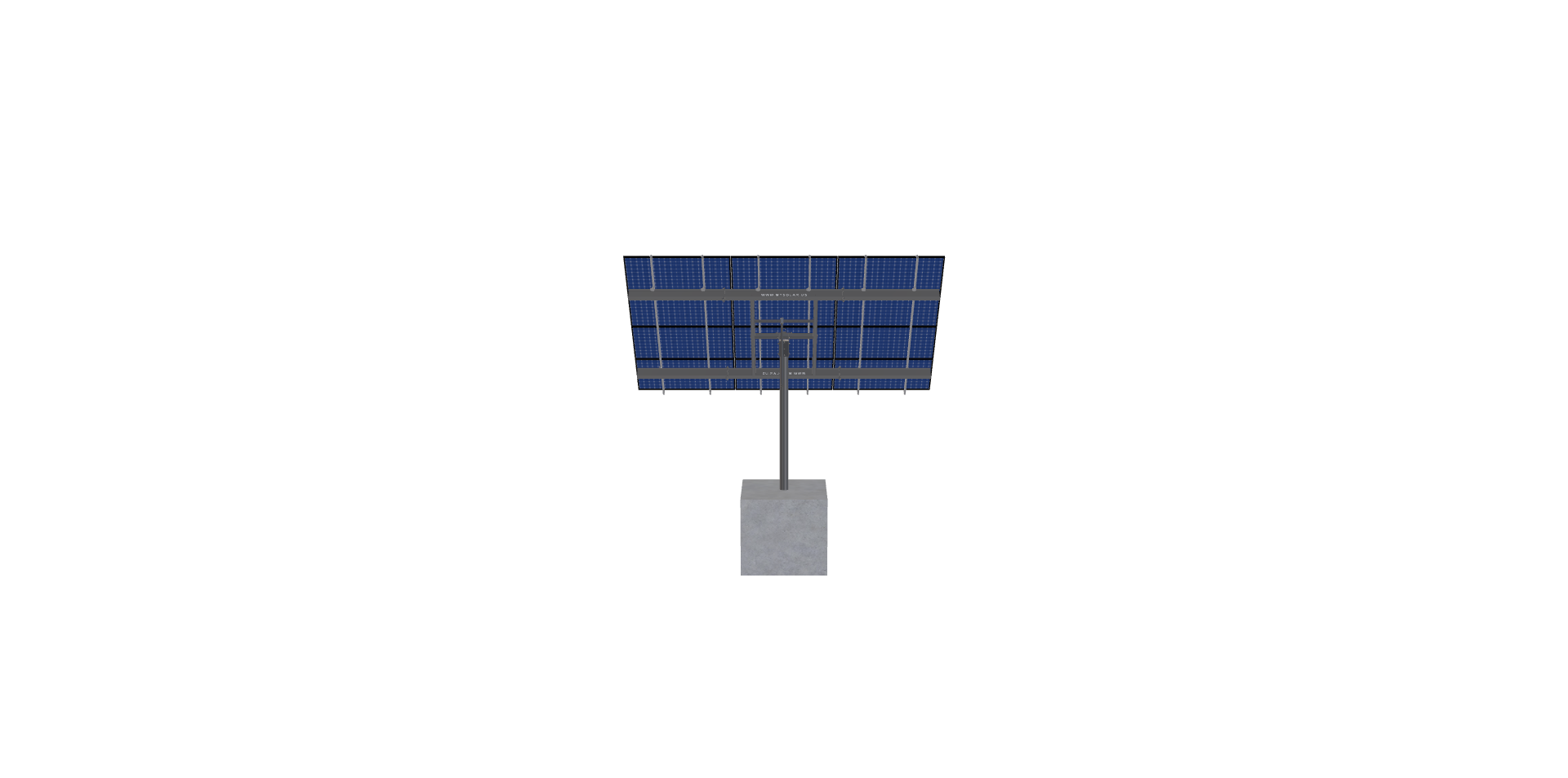

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-72-L-4Hx3W-6L71 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 744.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-72-L-4HX3W-6L71

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.04

WING SPAN

72.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

50.00

CANTILEVER

234.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

263.33

ARRAY WIDTH

20.00

ARRAY HEIGHT

13.17

RAIL LENGTH

158.00

MODULE LENGTH

79.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

15.02

PROJECTED PANEL HEIGHT

9.96

PROJECT ID

1211ARROWHEADDRIVESOLAR-REVC

SITE ADDRESS

1211, ARROWHEAD, DR, JEFFERSON, CO, 80456, USA

MODULE WIDTH

39.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

60.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4171.28

TOTAL WEIGHT

744.66

TOTAL PALLETS

1.00
