22 Whitetail

$4,959.56

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

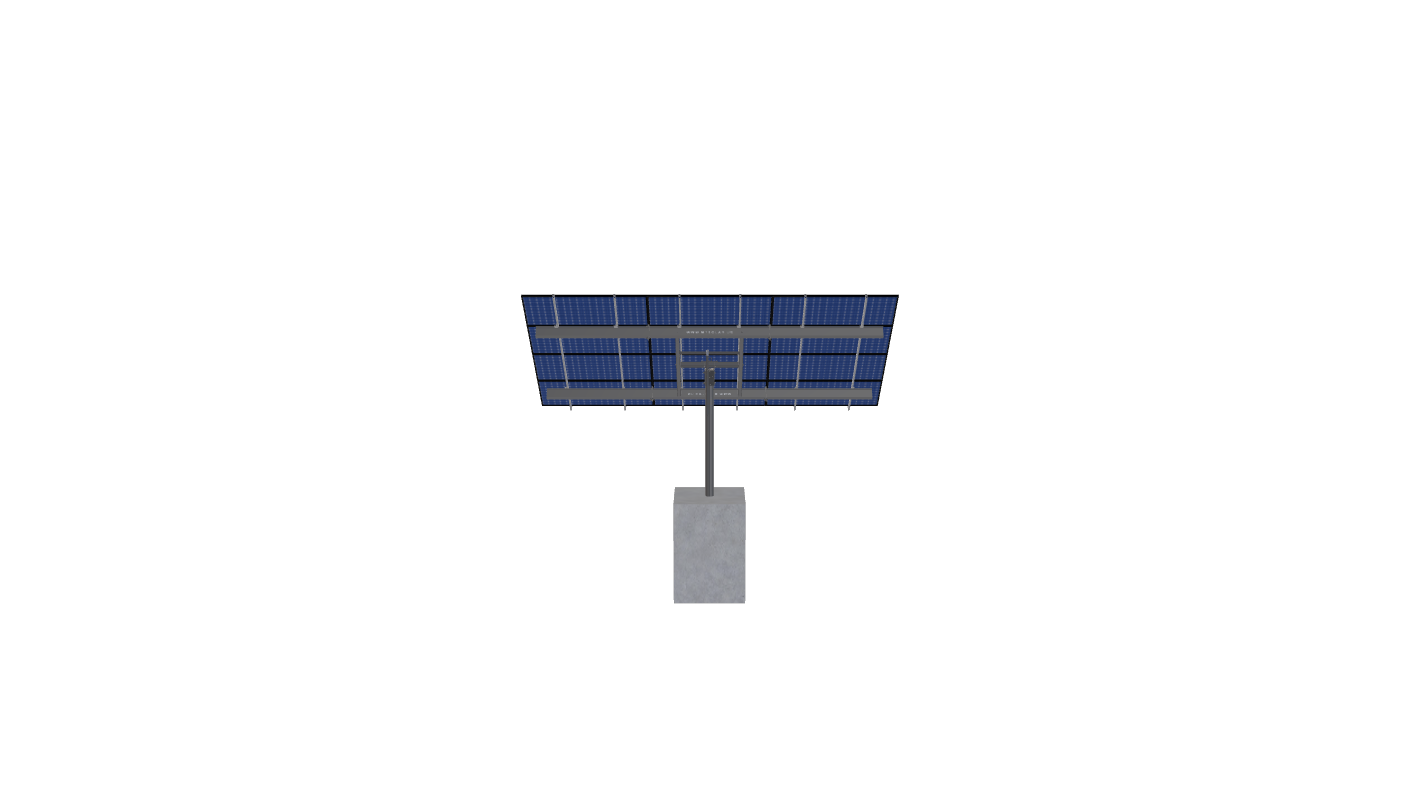

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-84-L-4Hx3W-6BFL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 928.4699999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-84-L-4HX3W-6BFL

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

8.45

WING SPAN

84.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

40.00

CANTILEVER

258.00

GROUND CLEARANCE

4.00

NO POLES

1.00

MODULE AREA

318.17

ARRAY WIDTH

23.00

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

91.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

12.84

PROJECTED PANEL HEIGHT

8.78

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

22, WHITETAIL

SITE ADDRESS

22, WHITETAIL, DR, RIVERTON, WY, 82501, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4959.56

TOTAL WEIGHT

928.47

TOTAL PALLETS

1.00
