This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85 inches by 42 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

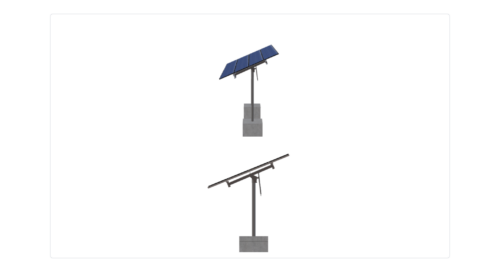

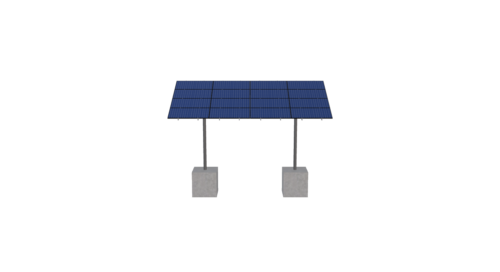

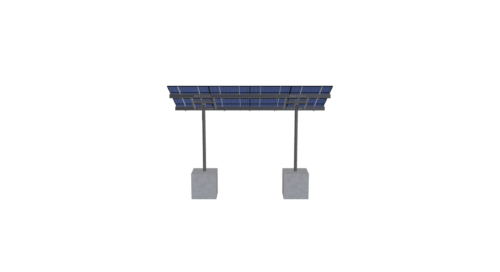

See 3D Model Here
915WashingtonStreet-JB-RevE17spacing
$7,102.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85 inches by 42 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1249.88 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-17-6TOP-SD-24-L-4HX4W-3GE2 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 12.81 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 4.75 |
TILT ANGLE | 23.40 |
CANTILEVER | 342.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 2.00 |
MODULE AREA | 406.11 |
ARRAY WIDTH | 28.67 |
ARRAY HEIGHT | 14.17 |
RAIL LENGTH | 170.00 |
MODULE LENGTH | 85.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 28.50 |
GROUND TO TOP | 15.59 |
PROJECTED PANEL HEIGHT | 5.56 |
WIND SPEED OVERRIDE | 90.00 |
SNOW LOAD OVERRIDE | 35.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | 915WASHINGTONSTREET-JB-REVE17SPACING |
SITE ADDRESS | 915, WASHINGTON, ST, RENO, NV, 89503, USA |
MODULE WIDTH | 42.00 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 7102.41 |
TOTAL WEIGHT | 1249.88 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/7d6b3ef6-b75c-4818-8e9f-98193caaf297.pdf |
|
ID | 3307.00 |
3D Solar link |
