Abundant Life Farm

$14,695.85

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8189 inches by 44.6063 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

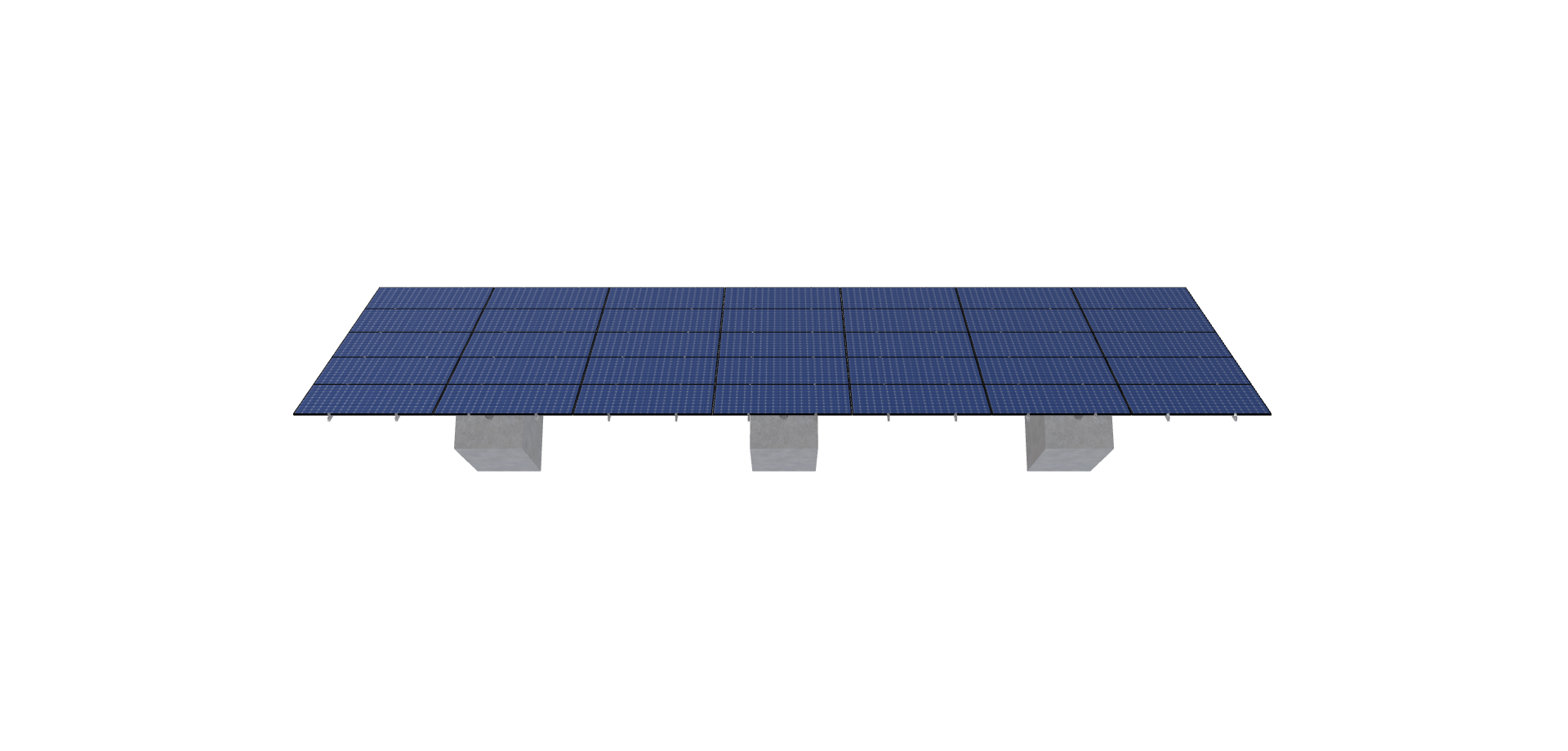

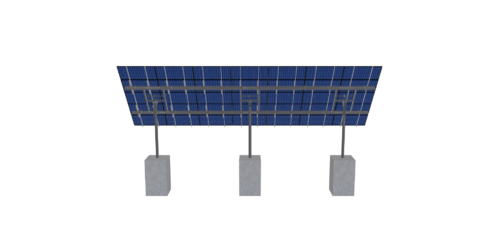

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-19.75-8TOP-HD-24-L-5Hx7W-9HLI Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8189 inches by 44.6063 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2935.81 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-8TOP-HD-24-L-5HX7W-9HLI

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

12.20

WING SPAN

24.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

50.00

CANTILEVER

612.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

984.71

ARRAY WIDTH

52.39

ARRAY HEIGHT

18.79

RAIL LENGTH

225.53

MODULE LENGTH

88.82

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

51.00

GROUND TO TOP

19.32

PROJECTED PANEL HEIGHT

14.24

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

ABUNDANT, LIFE, FARM

SITE ADDRESS

1102, MEADOW, SPUR, AKRON, OH, 44333, USA

MODULE WIDTH

44.61

NUMBER ROWS

5.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

14695.85

TOTAL WEIGHT

2935.81

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/9de4b88d-5f93-4c8f-bb01-6f01280059ef.pdf

ID

7177.00
