Albany County, WY

$20,990.46

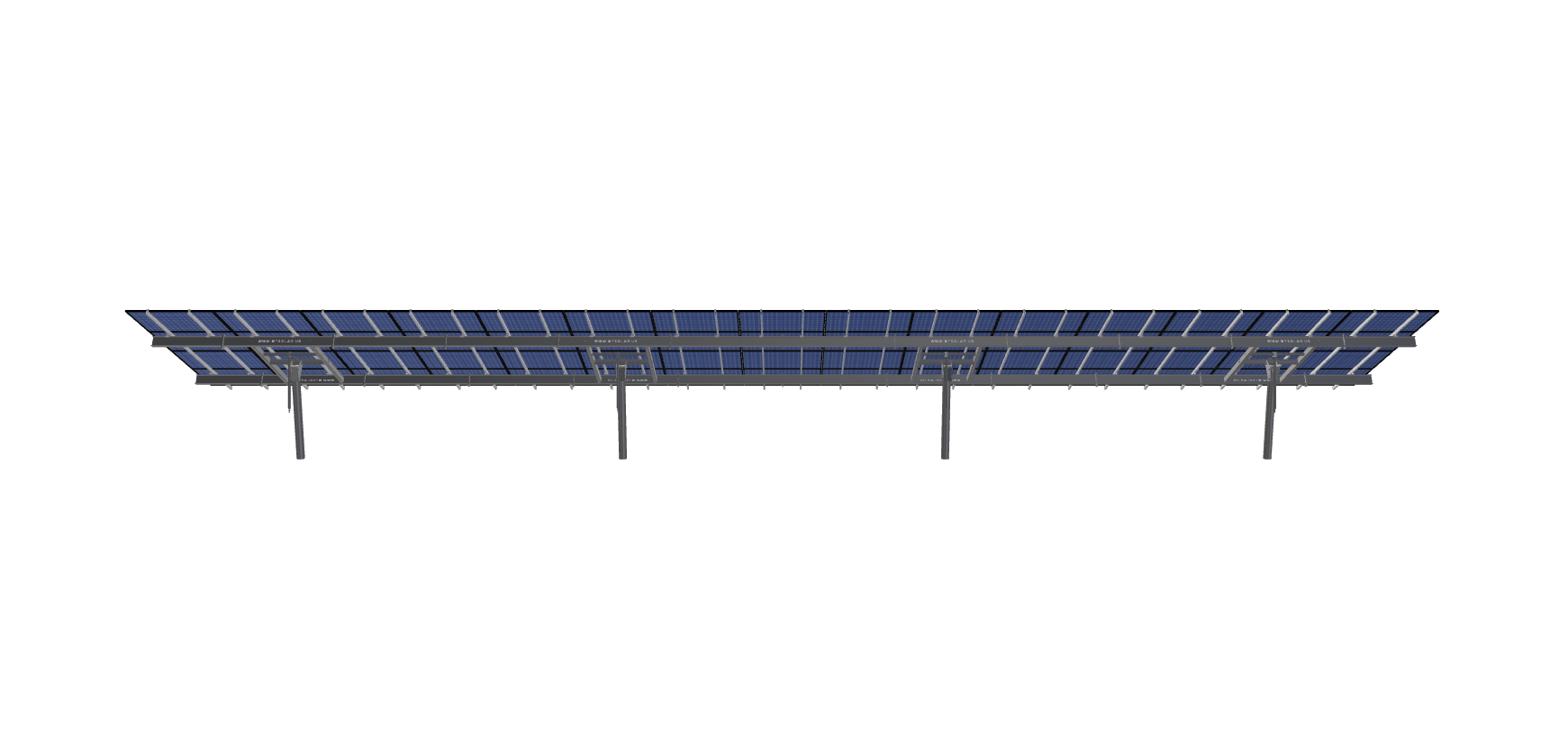

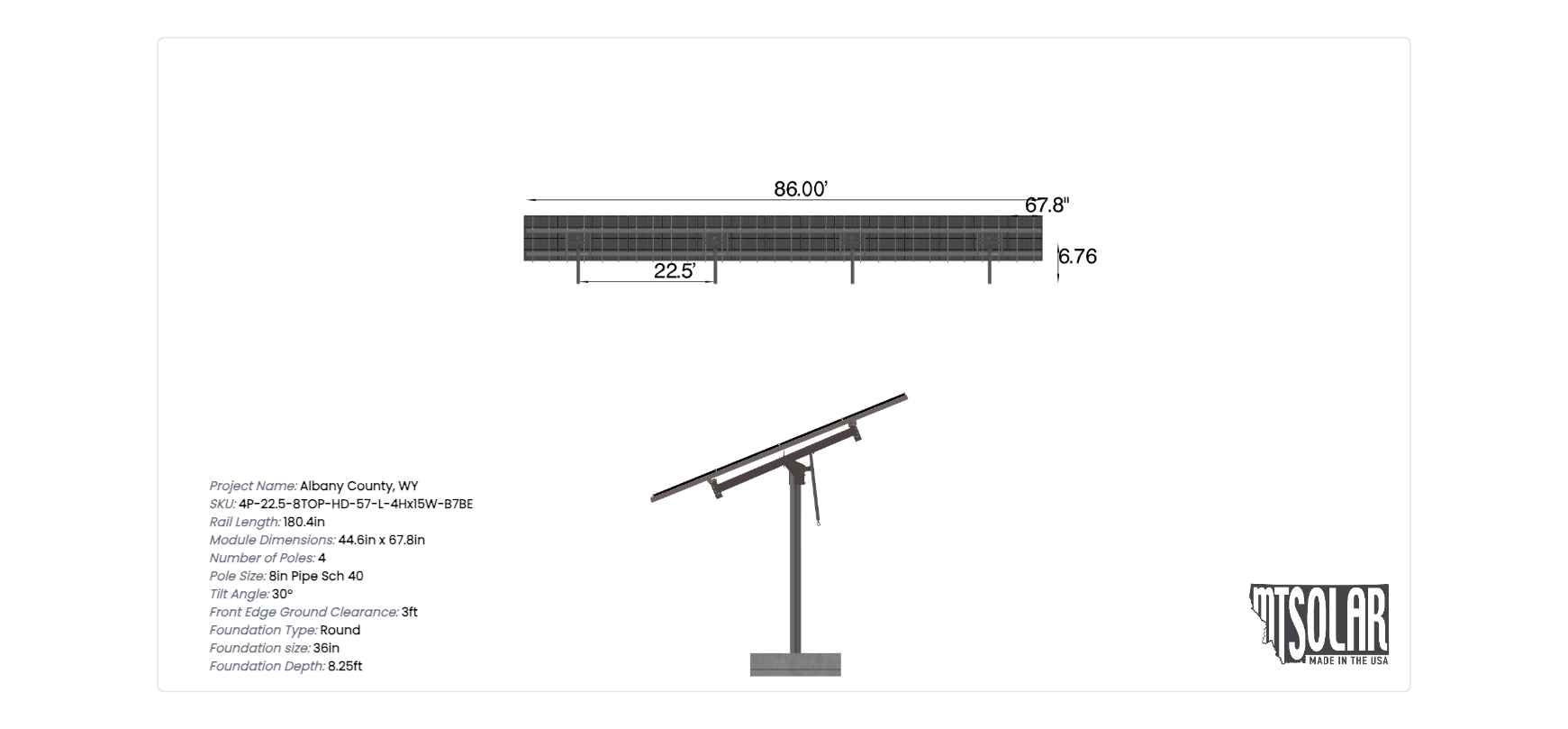

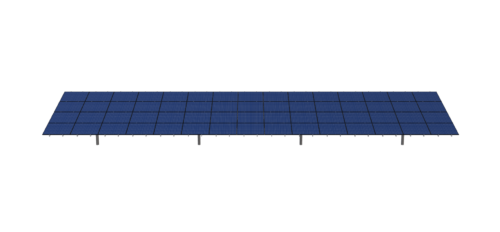

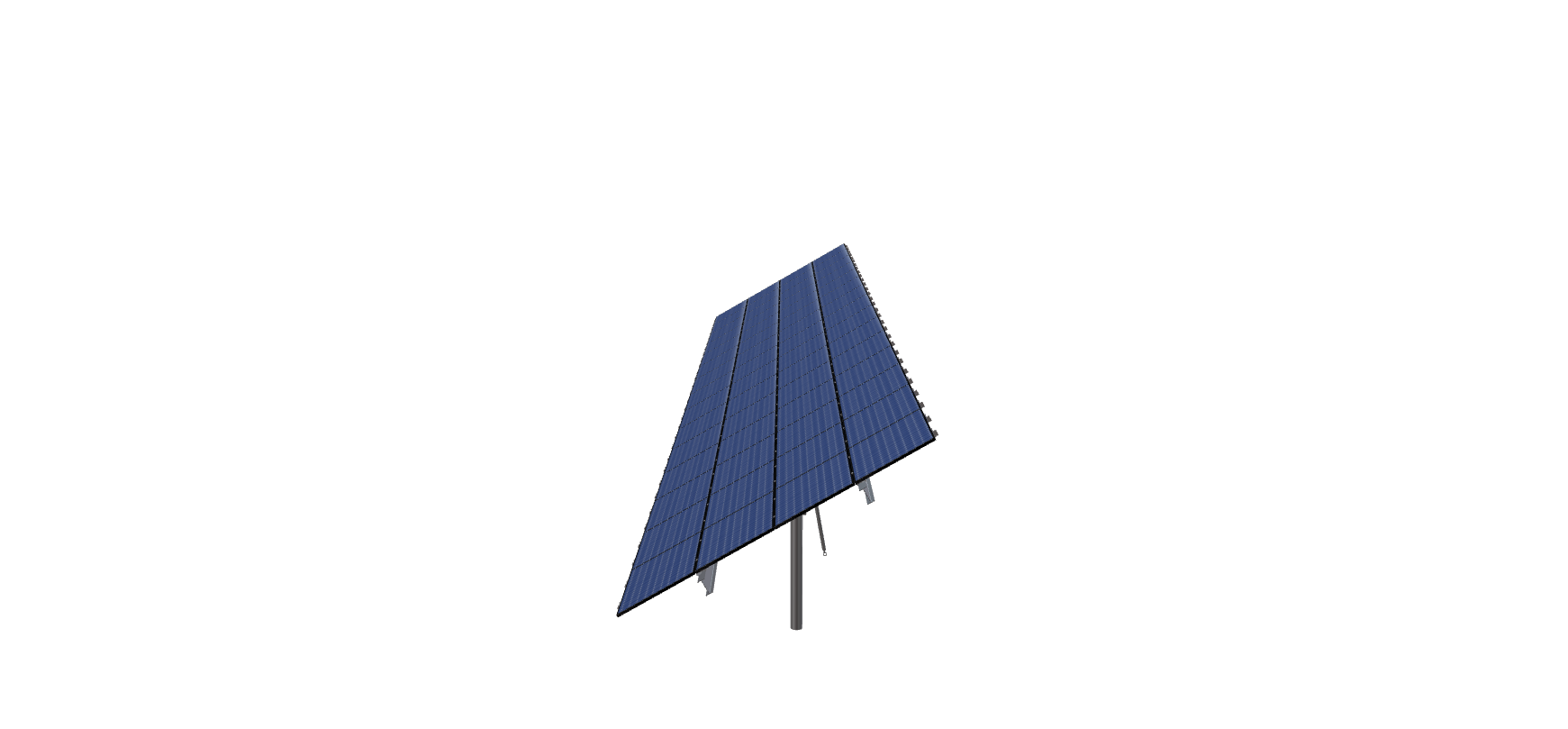

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 15 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-22.5-8TOP-HD-57-L-4Hx15W-B7BE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 15 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3865.42 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-22.5-8TOP-HD-57-L-4HX15W-B7BE

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

22.50

POLE HEIGHT

6.76

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

30.00

CANTILEVER

1014.00

GROUND CLEARANCE

3.00

NO POLES

4.00

MODULE AREA

1292.87

ARRAY WIDTH

86.00

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

84.50

GROUND TO TOP

10.47

PROJECTED PANEL HEIGHT

7.43

PROJECT ID

ALBANY, COUNTY, WY

SITE ADDRESS

2920, COUNTY, SHOP, RD, LARAMIE, WY, 82070, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

15.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

20990.46

TOTAL WEIGHT

3865.42

TOTAL PALLETS

4.00
