This Pole Mount is designed for modules with dimensions of 60″ by 48″ and an array layout of 3 high by 2 wide.
This mount fits on 1 – 6″ Sch 40 steel pole (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

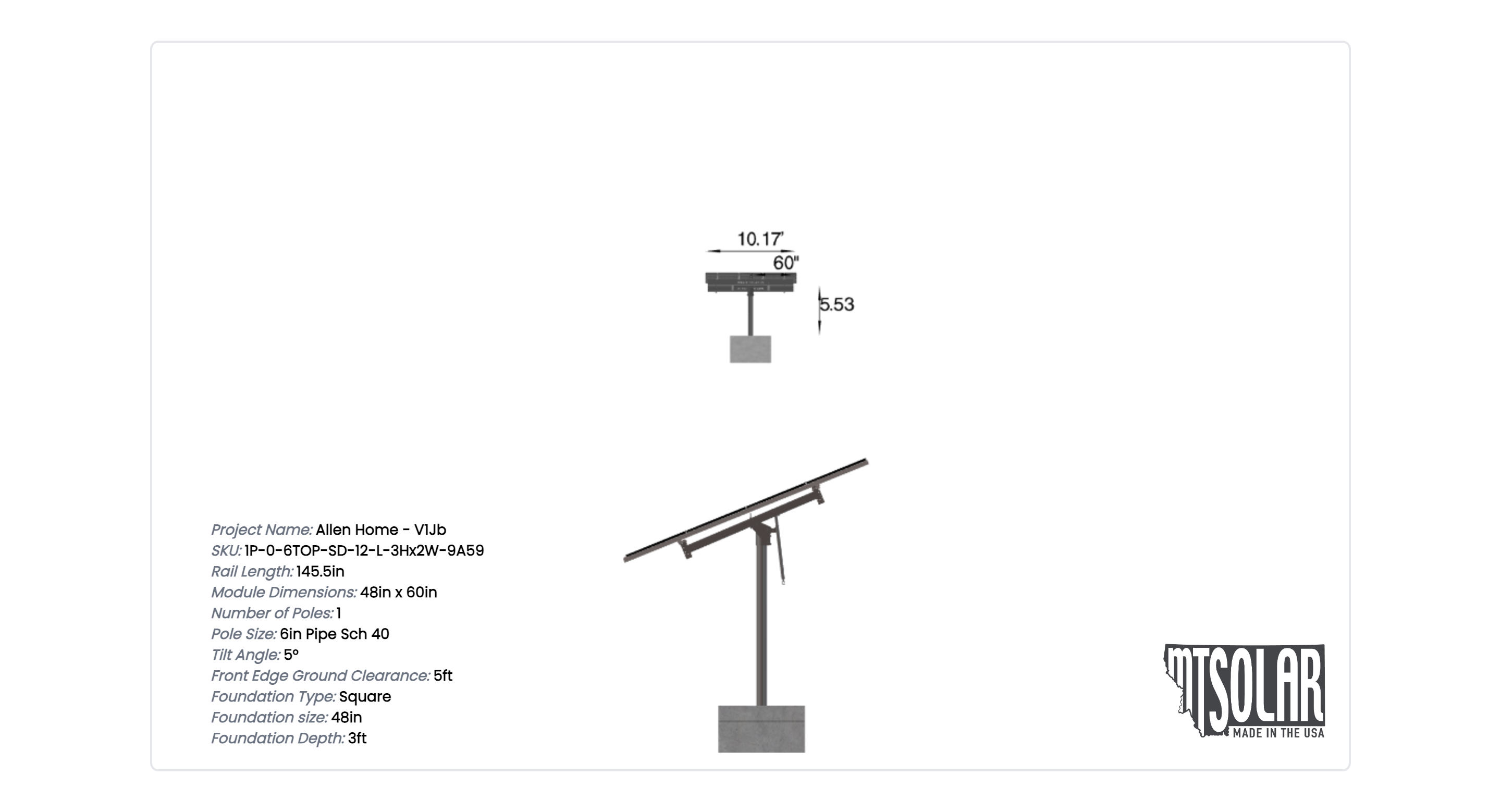

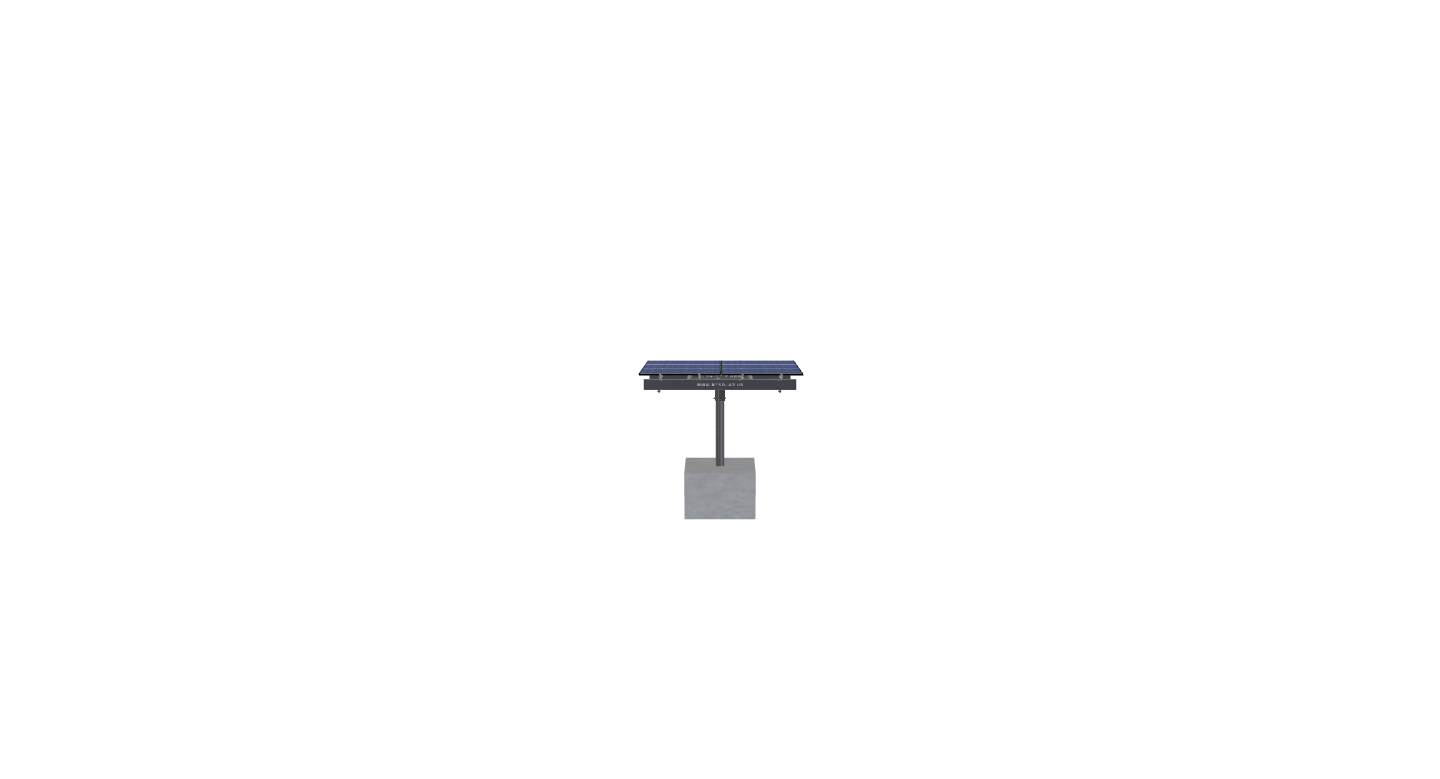

See 3D Model Here
Allen Home – V1Jb
$3,063.76
Description
This Pole Mount is designed for modules with dimensions of 60″ by 48″ and an array layout of 3 high by 2 wide.
This mount fits on 1 – 6″ Sch 40 steel pole (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 512.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-3HX2W-9A59 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 5.53 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 123.27 |
| ARRAY WIDTH | 10.17 |
| ARRAY HEIGHT | 12.13 |
| RAIL LENGTH | 145.50 |
| MODULE LENGTH | 60.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 6.05 |
| PROJECTED PANEL HEIGHT | 1.05 |
| PROJECT ID | ALLEN, HOME, -, V1JB |
| SITE ADDRESS | 375, SHERIDAN, CIR, NIBLEY, UT, 84321, USA |
| MODULE WIDTH | 48.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 49.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3063.76 |
| TOTAL WEIGHT | 512.84 |
| TOTAL PALLETS | 1.00 |
