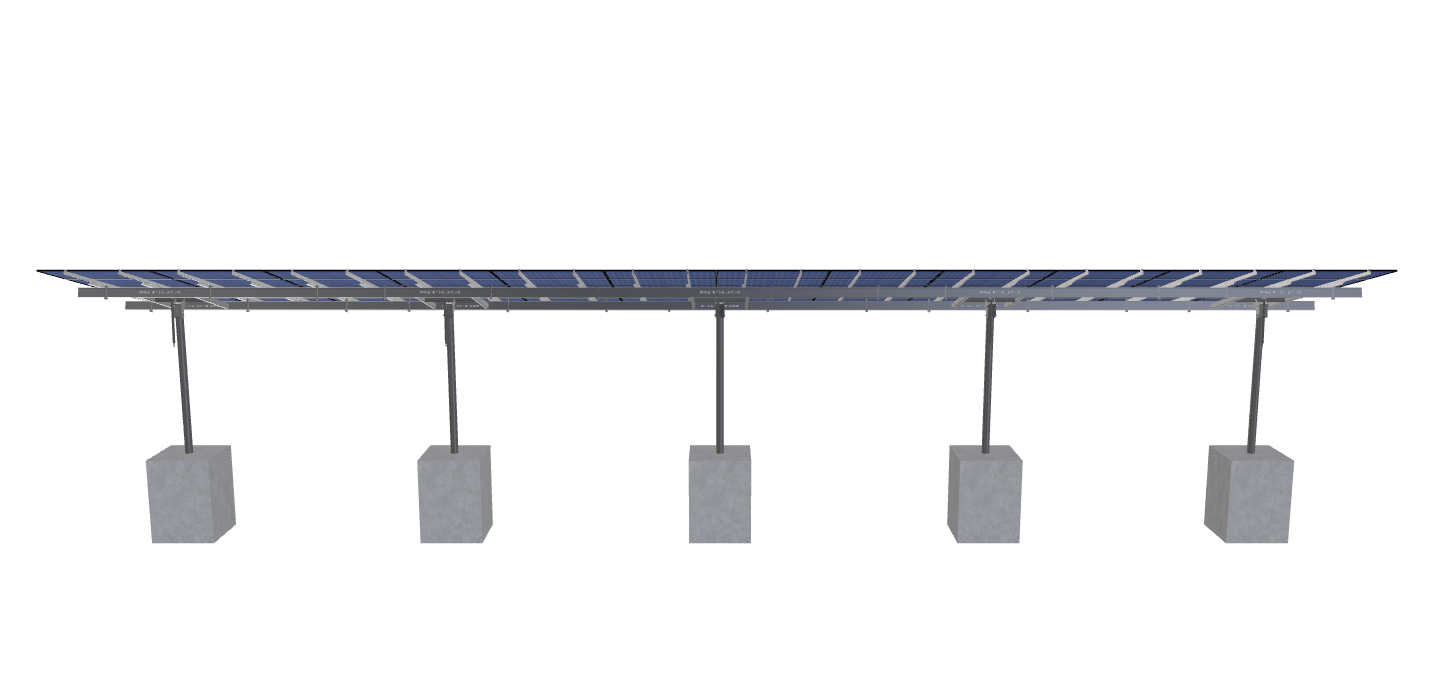

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Andersen-5×12-v1CU
$24,815.37
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4980.99 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-HD-24-L-5HX12W-K51A |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.45 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1725.21 |
| ARRAY WIDTH | 91.00 |
| ARRAY HEIGHT | 18.96 |
| RAIL LENGTH | 227.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 13.88 |
| PROJECTED PANEL HEIGHT | 4.85 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | ANDERSEN-5X12-V1CU |
| SITE ADDRESS | FM, 773, TEXAS, 75778, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24815.37 |
| TOTAL WEIGHT | 4980.99 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/4db2a75d-6e5e-4b77-9f3c-925da48b6a26.pdf |
|
| ID | 7938.00 |
| 3D Solar link |
